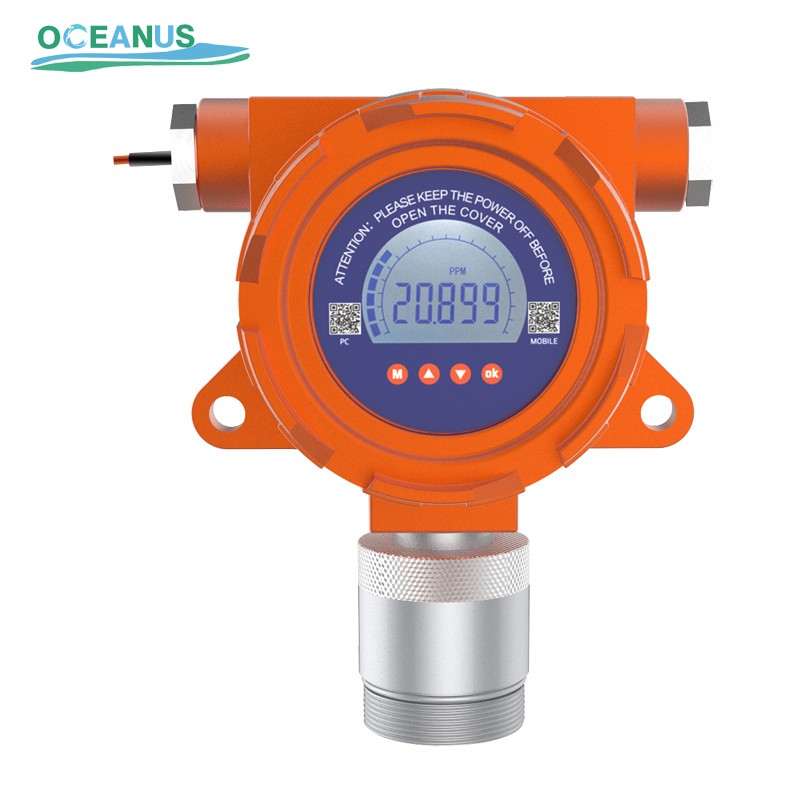

OC‑F08 Fixed Methyl mercaptan CH4S gas detector is an industrial wall‑mounted toxic gas monitoring device. Equipped with high‑precision electrochemical sensor, it achieves 24‑hour real‑time detection of methyl mercaptan concentration. It triggers sound‑light alarm beyond threshold, supports multiple signal outputs, explosion‑proof structure, suitable for chemical, sewage and waste treatment industrial sites for gas leakage safety protection.
Description:
OC-F08 series online gas detector used the original imported sensor and the ultra low power 32 bit microprocessor, so with the advantages of high precision, good repeatability, stable signal, respond quickly, etc. Possible connected with many controller system, such as PLC, DCS, computer and other, with the function of remote monitor and alarm, data logger and analysis.
Features:
4-20mA standard analog signal and RS485 digital signal output, 200~1000HZsignal output, relay output, data restore, data logger(optional);
LED screen displaying the gas concentration, gas type, unit, instrument status etc.
Independent air chamber, the sensor is not required to replace the sensor calibration, automatic identification of key parameters of the sensor
Protection function to prevent high gas concentration attack.
Display the gas concentration in ppm and mg/m3 is selectable.
Infrared remote controller operation;
With the 16bit ADC acquisition chip, designed with four-layer circuit board, so with high anti-interference ability.
With the Ex-proof certificate, the Ex-proof grade is Exd II CT6.
Technical Parameter:
| Applicable Gas | Methyl mercaptan (CH4S) |
| Detecting Range | 0～10ppm、0～20ppm or customized |
| Resolution | 0.001ppm, 0.01ppm |
| Sampling | Diffusion or pump-suction, circulation selectable |
| Accuracy | ≤±3%F.S |
| Repeatability | ≤±1% |
| Zero drift | ≤±1%(F.S/year) |
| Sensor Type | Electrochemical sensor |
| Sensor Life | 2~3 years |
| Response Time (T90) | ≤20s |
| Alarming mode | Audible-visual alarm（Optional） |
| Operating Environment | Temperature: -30℃~60℃ (Customized for special demands) Humidity: ≤95%RH (non-condensing); if >90%RH, can add the filter Pressure: 86kPa~106kPa |
| Working Voltage | 24V DC(16~30VDC) |
| Output Signals | (Standard)Three-wire system 4~20mA standard signals output, available for PLC, DCS, etc; (Optional) Four-wire system RS485 digital signal output; (Optional) Frequency signal 200~1000Hz output; Two-level relay output:220VAC 0.5A, 5VDC 0.5A |
| Installation Means | Wall mounted, Pipe type(Thread:M40*1.5 ) |
| Material of Body | Cast aluminum |
| Explosion-proof Index | Ex d IIC T6 |
| Protection Grade | IP66 |
| Electrical Interface | 3/4″NPT(Female Screw)、1/2″NPT(Female Screw) |
| Transmit Distance | ≤2000m |
| Dimension | 210 mm×140 mm×92 mm（L×W×H） |
| Warranty | 12 months |
| Weight | About 1.5Kg |
| Standards | GB15322.1-2003，GB3836.1-2010，GB3836.2-2010，GB3836.4-2010 |
Applications:
Common applications is gas safety inspection and alarm for industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc., where need to inspect the Methyl mercaptan (CH4S) gas concentration.
