This online odor monitoring analyzer is also known as electronic‑nose system, designed for continuous real‑time quantification of malodorous gas concentration (OU value) and related pollutant components in industrial ambient air. Equipped with high‑precision sensor array and optimized anti‑interference algorithm, it simulates human olfactory perception to identify complex mixed odor pollution.
Products Description

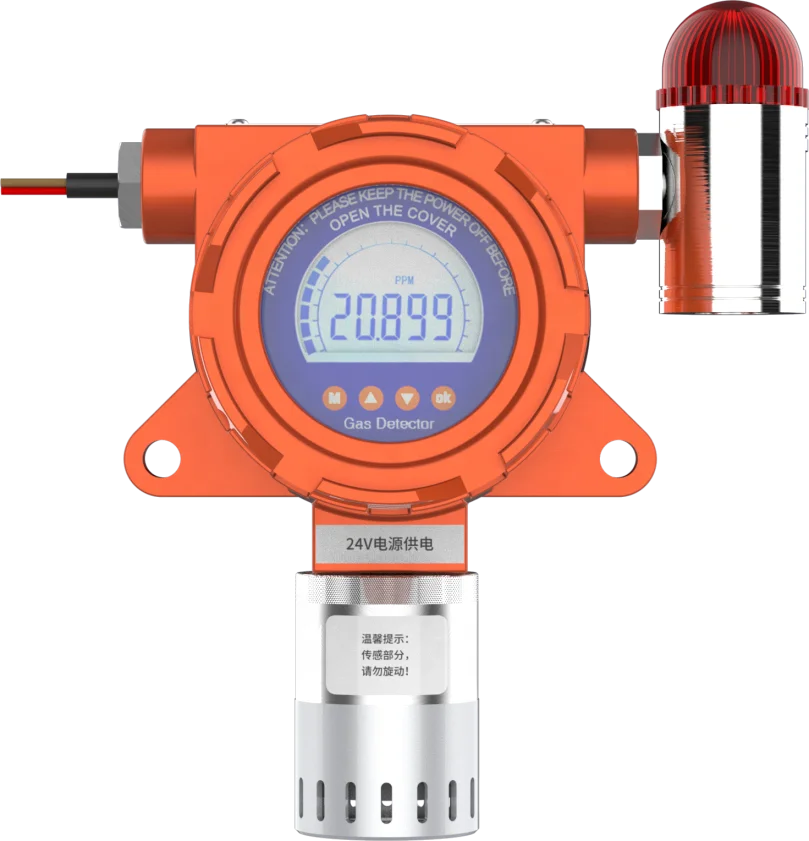

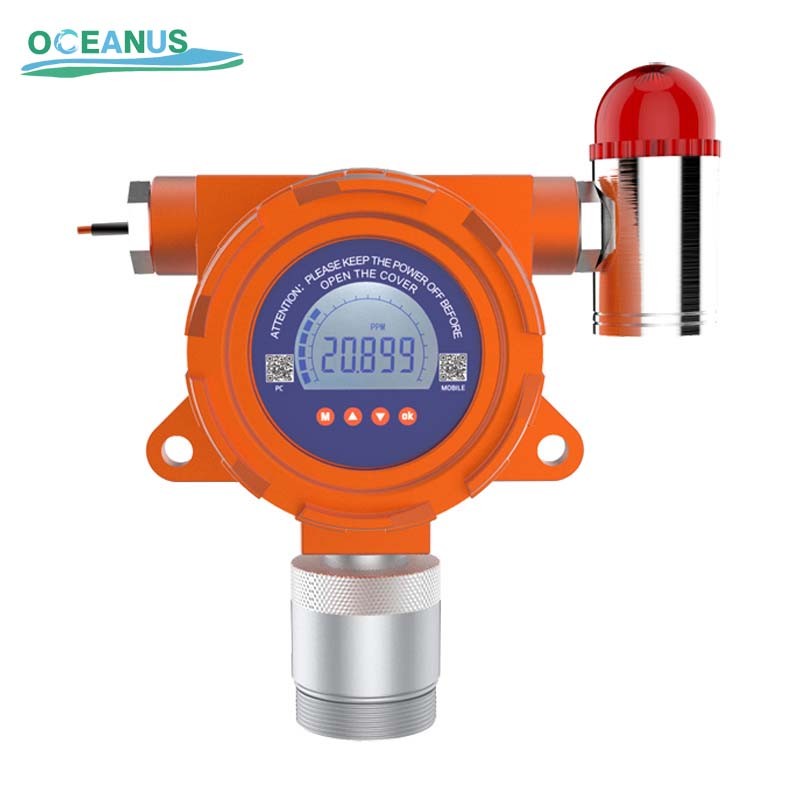

OC-F08 series online gas detector use the imported sensor and microcontroller technology, so with the advantages of high precision, good repeatability, stable signal, respond quickly, ect. Possible connected with many controller system, such as PLC, DCS, computer and other, with the function of remote monitor and alarm, data logger and analysis.
Common applications is gas safety inspection and alarm for industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc.
Features
4‑20mA analog signal, RS485 digital signal and relay output available
Independent air chamber design for simple calibration operation
Infrared remote control, realize safe non‑contact operation
Multiple certifications: CE, RoHS, CNEX, ATEX
Diffusion sampling, pump‑suction sampling optional
Supports customization for various industrial working conditions
Die‑cast aluminum housing, IP66 protection grade
Explosion‑proof design for hazardous explosive areas
Company Profile
We Henan Oceanus is located in Henan, a land with a long history and profound cultural heritage, has been dedicated to the research, development, production, and sales of Gas detection system and Environment equipment since its establishment. With exquisite technology and outstanding quality, we have won widespread recognition in the global marketing.
01
Business areas
As a leader in the field of Gas detector and Air quality monitor system, we Henan Oceanus will be continued to expand its business scope and provide customers around the world with customizable Air quality monitor system of various types and specifications.
02
Values and ideas
Our company upholds the core values of integrity and quality service, focusing more on friendship with our customers. We always adhere to integrity management, customer-centered, and provide a full range of pre-sales, sales, and after-sales services to ensure that customers can be worry-free when using our products.
03
Global Service Network
We have a comprehensive global service network, offering timely, professional pre-sales consultation, after-sales service, and technical support for overseas users. Regardless of where users are located, they can enjoy our attentive and thoughtful service.
04
Custom Service
With excellent products and services, Henan Oceanus Gas detector and Air quality monitor system have been exported to more than 100 countries around the world and have won widespread praise.
Parameter:
Applicable Gas | Odor gas |
Detecting Range | 0~10ppm, 0~100ppm |
Resolution | 0.01ppm |
Sampling | Diffusion or pump-suction |
Accuracy | ≤±3%F.S |
Repeatability | ≤±1% |
Zero drift | ≤±1%(F.S/year) |
Sensor Type | Electrochemical |
Sensor Life | 2~3 years |
Response Time (T90) | ≤20s |
Alarming mode | Audible-visual alarm |
Operating Environment | Temperature: -20℃~50℃ Humidity: ≤95%RH (non-condensing); if >90%RH, can add the filter Pressure: 86kPa~106kPa |
Working Voltage | 24V DC (16~30VDC) |
Output Signals | Three-wire system 4~20mA standard signals output; longest transmit distance is 1000m; Four-wire system RS485 signal output; longest transmit distance is 1800m; Two-level passive contact output:220VAC 3A, 24VDC 3A |
Installation Means | Wall mounted, Pipe type (Thread:M40*1.5 ) |
Material of Body | Cast aluminum |
Explosion-proof Index | Ex d IIC T6 Gb |
Protection Grade | IP65 |
Electrical Interface | 3/4″NPT(Female Screw),1/2″NPT(Female Screw) |
Transmit Distance | ≤1800m |
Dimension | 200 mm×160 mm×80 mm(L×W×H) |
Weight | About 1.5Kg |
Our After-sales service:
1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc.
2. Free calibration service and provide calibration methods.
3. One year warranty and lifetime warranty
