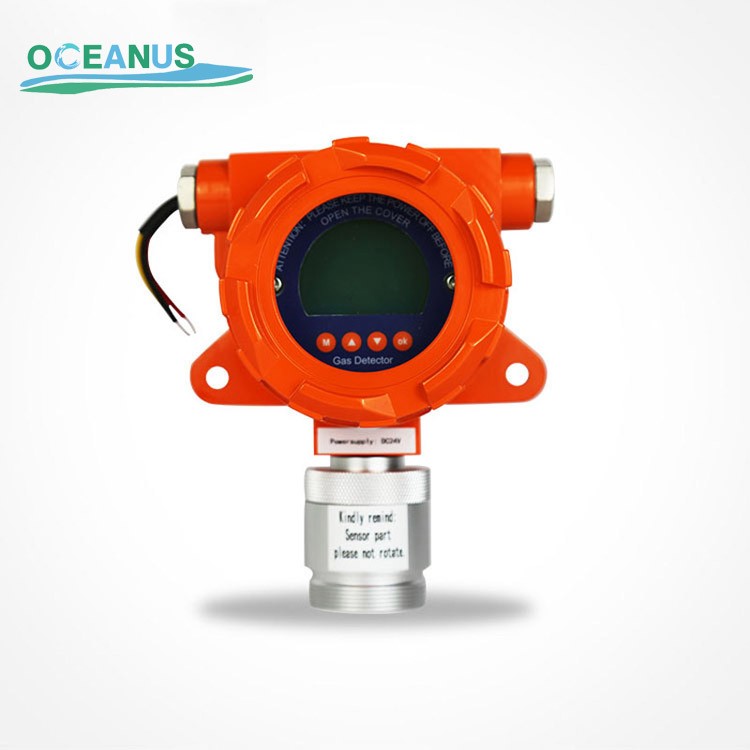

OC‑F08 Fixed Chlorine Dioxide ClO₂ gas detector is wall‑mounted toxic gas equipment with remote monitor function. It adopts high‑stability electrochemical sensor for 24‑h continuous ClO₂ concentration detection. Sound‑light alarm triggers at over‑limit value. Support RS485 & 4‑20mA output for remote data viewing, explosion‑proof housing, fit for water disinfection and chemical industrial sites.
Description:

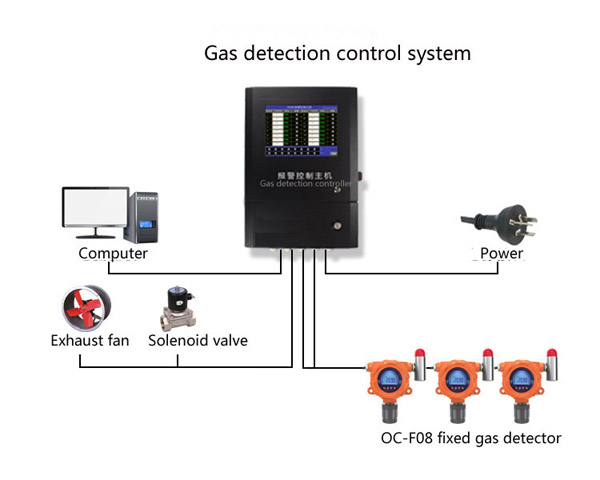

OC-F08 series online gas detector used the original imported sensor and the ultra low power 32 bit microprocessor, so with the advantages of high precision, good repeatability, stable signal, respond quickly, etc. Possible connected with many controller system, such as PLC, DCS, computer and other, with the function of remote monitor and alarm, data logger and analysis.
Features:
4-20mA and RS485 signal output, 200~1000HZsignal output, relay output, data restore, data logger(optional);
LED screen displaying the gas concentration, gas type, unit, instrument status etc. Display the gas concentration in ppm and mg/m3 is selectable. Infrared remote controller operation; With the 16bit ADC acquisition chip, designed with four-layer circuit board, so with high anti-interference ability. With the Ex-proof certificate, the Ex-proof grade is Exd II CT6. Common applications: Gas safety inspection and alarm for industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc., where need to inspect the Chlorine Dioxide (ClO2) gas concentration. Technical Parameter: Applicable Gas Chlorine Dioxide (ClO2) Detecting Range 0～1ppm、0～10ppm、0～50ppm、0～100ppm、0～200ppm or customized Resolution 0.001ppm（0～1ppm）；0.01ppm（0～100ppm）；0.1ppm（0～200ppm） Sampling Diffusion or pump-suction, circulation selectable Repeatability ≤±1% Zero drift ≤±1%(F.S/year) Sensor Type Electrochemical sensor Sensor Life 2~3 years Response Time (T90) ≤20s Alarming mode Audible-visual alarm（Optional） Operating Environment Temperature: -30℃~60℃ (Customized for special demands) Humidity: ≤95%RH (non-condensing); if >90%RH, can add the filter Pressure: 86kPa~106kPa Working Voltage 24V DC(16~30VDC) Output Signals (Standard)Three-wire system 4~20mA standard signals output, available for PLC, DCS, etc; (Optional) Four-wire system RS485 digital signal output; (Optional) Frequency signal 200~1000Hz output; Two-level relay output:220VAC 0.5A, 5VDC 0.5A Installation Means Wall mounted, Pipe type(Thread:M40*1.5 ) Material of Body Cast aluminum Explosion-proof Index Ex d IIC T6 Protection Grade IP66 Electrical Interface 3/4″NPT(Female Screw)、1/2″NPT(Female Screw) Transmit Distance ≤2000m Dimension 210 mm×140 mm×92 mm（L×W×H） Weight About 1.5Kg Warranty 12 months Standards GB15322.1-2003，GB3836.1-2010，GB3836.2-2010，GB3836.4-2010
Independent air chamber, the sensor is not required to replace the sensor calibration, automatic identification of key parameters of the sensor
Protection function to prevent high gas concentration attack.
Our After-sales service:
1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc.
2. Free calibration service and provide calibration methods.
3. One year warranty and lifetime warranty
