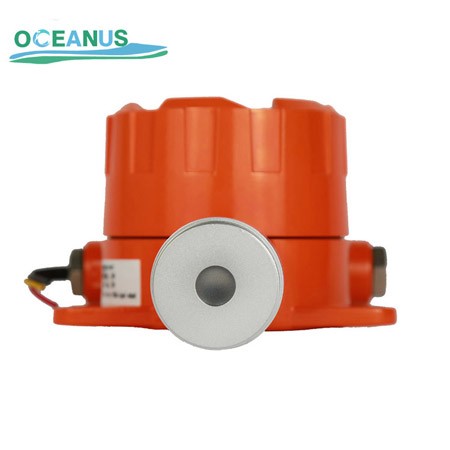

OC-F08 fixed combustible gas detector is specially designed for LPG station safety monitoring. Equipped with high-precision catalytic sensor, it real-time detects propane C3H8 and butane C4H10 gas leakage. It provides stable concentration monitoring and fast audible-visual alarm when gas exceeds threshold. Explosion-proof design fits flammable and dangerous environments, effectively preventing LPG explosion accidents in gas stations.
Description:
OC-F08 series online gas detector used the original imported sensor and the ultra low power 32 bit microprocessor, so with the advantages of high precision, good repeatability, stable signal, respond quickly, etc. Possible connected with many controller system, such as PLC, DCS, computer and other, with the function of remote monitor and alarm, data logger and analysis.
Common applications is gas safety inspection and alarm for industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc.
Features:
4-20mA standard analog signal and RS485 digital signal output, 200~1000HZsignal output, relay output, data restore, data logger(optional);
LED screen displaying the gas concentration, gas type, unit, instrument status etc.
Independent air chamber, the sensor is not required to replace the sensor calibration, automatic identification of key parameters of the sensor
Protection function to prevent high gas concentration attack.
Display the gas concentration in %LEL.
Infrared remote controller operation;
With the 16bit ADC acquisition chip, designed with four-layer circuit board, so with high anti-interference ability.
With the Ex-proof certificate, the Ex-proof grade is Exd II CT6.
Parameter:
Gas type: Combustible gas, methane, LPG, etc.
Measuring range: 0~100%LEL
Resolution: 0.1%LEL
Working principle: Catalytic combustion sensor

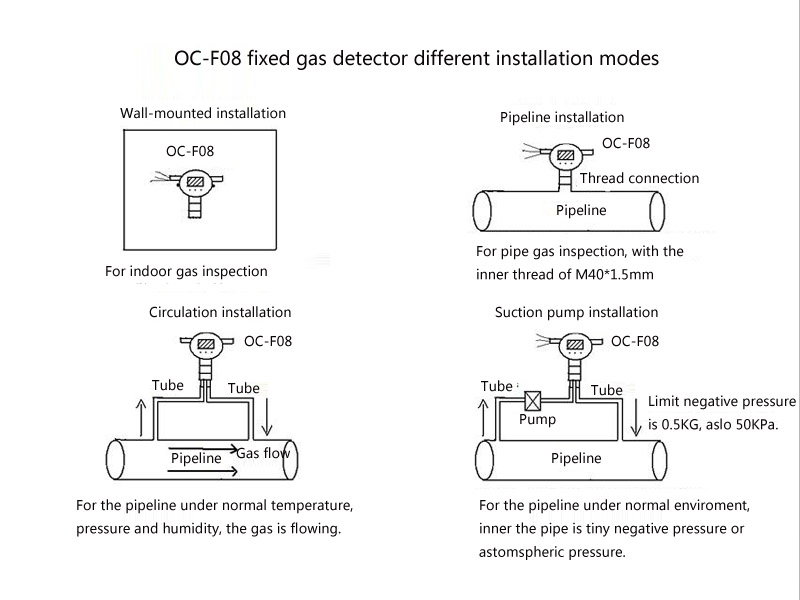

Sampling mode：Natural diffusion, natural circulation, or pump-suction circulation selectable
Ex-proof grade: Exd II CT6
Protection grade: IP66
