OC‑905 pump‑suction portable TVOC gas detector with imported sensor, 100000‑group data storage & USB export, two‑stage sound‑light alarm, Ex ib IIC T4 Gb explosion‑proof for indoor environment and industrial TVOC safety detection.
Description:

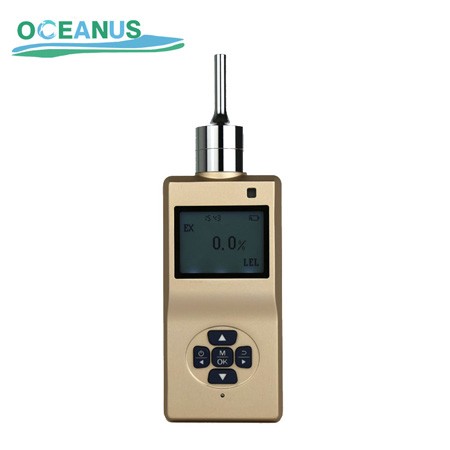

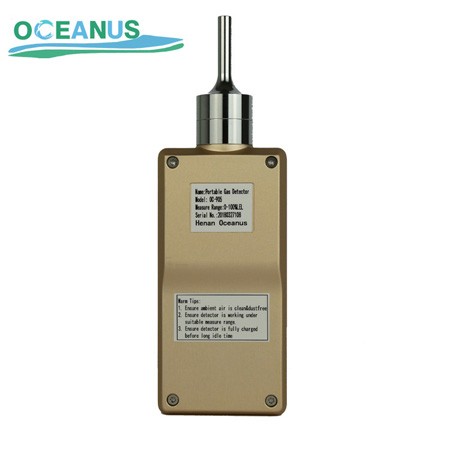

OC‑905 portable pump‑suction TVOC gas detector adopts famous‑brand original imported sensor and ultra‑low‑power 32‑bit microprocessor. Equipped with built‑in sampling pump with stable 300ml/min flow rate, it realizes active suction sampling for total volatile organic compounds. Featuring four‑layer circuit wiring, intelligent algorithm, multi‑point calibration and temperature compensation, the detector delivers high‑accuracy and stable measurement results. The 2.5‑inch dot‑matrix LCD screen directly shows real‑time TVOC concentration data. It supports up to 100 000 groups data storage and data export to PC via USB cable. Two‑stage adjustable audible‑visual alarm will activate when gas concentration reaches preset threshold. With all‑English operation menu, aluminum‑alloy metal housing, Ex ib IIC T4 Gb explosion‑proof grade and IP54 protection grade, this handheld unit is widely applied in petroleum‑petrochemical, chemical industry, home environmental protection, laboratory, sewage treatment and other sites requiring TVOC hazard detection.
Features:
Used original imported sensors and ultra-low power 32 bit microprocessor
The circuit adopts 4-layer wiring, which is stronger for weak signal processing and anti-interference ability
Intelligent algorithm + multi-point calibration + temperature compensation, more accurate measurement results
2.5 inch dot matrix display interface,reading intuitively
All English operation menu and easy operation.
Function：
Inspect the gas concentration and alarm when it reaches preset alarm level.
High accuracy, good stability and good repeatability, long working life.
One-key operation to restore to factory default setting.
Adjustable two-stage audible-visual alarm threshold value.
Powered by rechargeable lithium battery with big capacity.
The built-in pump, stable flow rate, can be opened or closed.
Technical Parameter:
Gas type | TVOC |
Working principle | PID sensor |
Measuring range | 0-1.000ppm、5ppm、10ppm、20ppm、50ppm、100ppm、200ppm、2000ppm、10000ppm、20000ppm or customized |
Resolution | 0.1ppm or customized |
Concentration unit | %LEL, %Vol, ppb, ppm，mg/m3 |
Precision | ±≤3%F.S |
Repeatability | ≤±2% |
Zero drift | ≤±1%(F.S/year) |
Sampling mode | Pump-suction sampling (Flow rate of 300ml/minute) |
Data storage | Can record 100000 group of measuring data |
Response time | T90≤30s (different gas sensors have different response times) |
Recovery time | ≤20s |
Pre-heating time | ≤60s |
Display | LCD dot matrix display of the Gas type, gas concentration unit, gas concentration data, time, battery status, data storage status; |
Working temperature | -20℃～50℃(Special requirements need to be customized) |
Working humidity | 10%-95%RH(non-condensing) |
Working pressure | 86Kpa~106Kpa |
Explosion-Proof grade | Ex ib IIC T4 Gb |
Protection grade | IP54 |
Alarm mode | Audible, visual. Two-color LED alarm light, sound≥75dB@25cm |
Shell material | Aluminum alloy metal housing, ABS+PC |
Power supply | 3.7VDC, 2600mAh,Rechargeable lithium battery DC5V USB charger |
Charge time | ≤6 hours |
Working time | ≥12 hours (Normal temperature electrochemical sensor) |
Power consumption | 0.5W |
Dimensions | 200.5*64.8*35.5mm （L*W*H） |
Weight | 0.46KG |
Accessory | Box, instruction, USB charger , data line |
Quality standard | GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010,GB12358-2006 |
Application Scenarios
Home environmental protection & indoor air quality inspection
Chemical plant volatile organic gas monitoring
School laboratory gas safety test
Sewage treatment plant on‑site patrol inspection
Petrochemical and painting workshop TVOC leakage detection
