Portable PH3 phosphine gas detector adopts high‑precision electrochemical sensor, real‑time concentration display, triple sound‑light‑vibration alarm, support 100,000 groups of data storage, ideal for grain depot, fumigation operation, chemical plant and pest control safety inspection.
Product Description

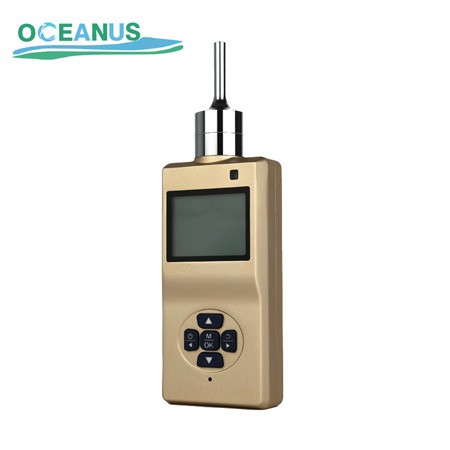

This portable PH3 (Phosphine) gas detector is developed for detecting highly toxic phosphine gas in industrial and storage scenarios. PH3 is widely used for grain fumigation and pest killing, improper operation will cause toxic gas leakage and threaten personnel safety.
Equipped with high‑performance electrochemical sensor, the unit achieves fast response and stable detection data. Real‑time LCD shows gas concentration; sound‑light‑vibration triple alarm will trigger once exceeding preset threshold. Built‑in large‑capacity storage supports 100,000 groups detection data recording for checking and exporting. Explosion‑proof compact handheld design makes it easy to carry for on‑site field work.
It provides reliable safety protection for fumigation operators, grain depot staff and chemical workers, effectively avoiding safety accidents caused by phosphine gas leakage.
Features:
Used original imported sensors and ultra-low power 32 bit microprocessor
The circuit adopts 4-layer wiring, which is stronger for weak signal processing and anti-interference ability
Intelligent algorithm + multi-point calibration + temperature compensation, more accurate measurement results
2.5 inch dot matrix display interface,reading intuitively
All English operation menu and easy operation.
Function：
Inspect the gas concentration and alarm when it reaches preset alarm level.
High accuracy, good stability and good repeatability, long working life.
One-key operation to restore to factory default setting.
Adjustable two-stage audible-visual alarm threshold value.
Powered by rechargeable lithium battery with big capacity.
The built-in pump, stable flow rate, can be opened or closed.
Technical Parameter:
| Gas type | PH3 Phosphine |
| Working principle | Electrochemical sensor |
| Measuring range | 0-5ppm、20ppm、50ppm、100ppm、1000ppm or customized |
| Resolution | 0.01ppm 0.1ppm or customized |
| Concentration unit | %LEL, %Vol, ppb, ppm, mg/m3 |
| Precision | ±≤3%F.S |
| Repeatability | ≤±2% |
| Zero drift | ≤±1%(F.S/year) |
| Sampling mode | Pump-suction sampling (Flow rate of 300ml/minute) |
| Data storage | Can record 100000 group of measuring data |
| Response time | T90≤30s (different gas sensors have different response times) |
| Recovery time | ≤20s |
| Pre-heating time | ≤60s |
| Display | LCD dot matrix display of the Gas type, gas concentration unit, gas concentration data, time, battery status, data storage status; |
| Working temperature | -20℃～50℃(Special requirements need to be customized) |
| Working humidity | 10%-95%RH(non-condensing) |
| Working pressure | 86Kpa~106Kpa |
| Explosion-Proof grade | Ex ib IIC T4 Gb |
| Protection grade | IP54 |
| Alarm mode | Audible, visual. Two-color LED alarm light, sound≥75dB@25cm |
| Shell material | Aluminum alloy metal housing, ABS+PC |
| Power supply | 3.7VDC, 2600mAh,Rechargeable lithium battery DC5V USB charger |
| Charge time | ≤6 hours |
| Working time | ≥12 hours (Normal temperature electrochemical sensor) |
| Power consumption | 0.5W |
| Dimensions | 200.5*64.8*35.5mm （L*W*H） |
| Weight | 0.46KG |
| Accessory | Box, instruction, USB charger , data line |
| Quality standard | GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010,GB12358-2006 |
Applications
Grain depot, grain silo phosphine fumigation safety monitoring
Grain and warehouse pest control fumigation site detection
Chemical plant phosphine production workshop leakage inspection
Pharmaceutical manufacturing production site gas monitoring
Metallurgical processing workshop on‑site safety patrol
Fumigation service company field operation detection
Storage warehouse residual phosphine gas test
Laboratory chemical reaction safety monitoring
