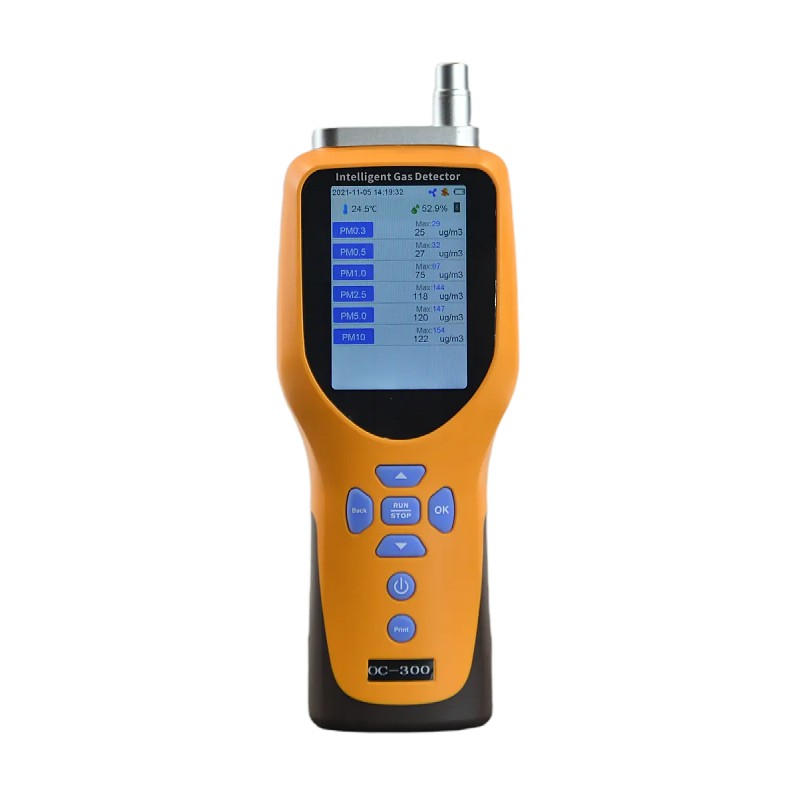

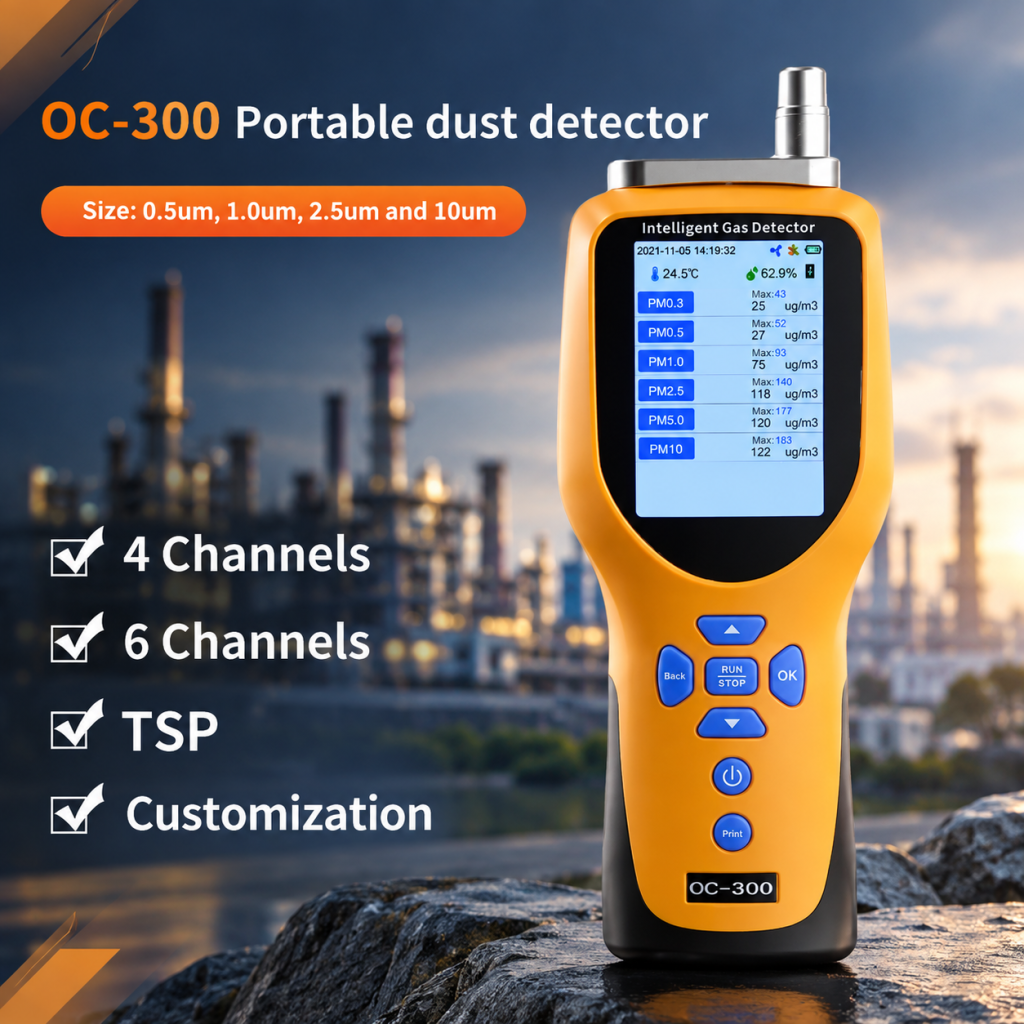

OC-300 Dust Particulate Matter Counter is a 4-channel particle test instrument detecting 0.5μm,1.0μm,2.5μm,10μm particulates. Equipped with built-in temperature and humidity sensor, it monitors particles and ambient temperature & humidity at the same time.
With optical counting technology, it delivers stable and reliable test results. Widely used in clean room, pharmaceutical, food, electronics factory and laboratory for air cleanliness inspection. It is a practical portable test instrument for particulate matter monitoring.
Product Description
OC-300 Dust Particulate Matter Counter is a high-precision 4-channel particle detection instrument, which can simultaneously measure 4 particle sizes: 0.5μm,1.0μm,2.5μm,10μm. Built-in temperature and humidity sensor, it can monitor environmental temperature and humidity synchronously while counting particulates.
Adopting advanced optical counting principle, this particulate matter counter features stable performance, fast response and easy operation. It is widely used in cleanroom, pharmaceutical workshop, food processing workshop, laboratory, electronics factory and other occasions for air particle concentration inspection.
This portable dust counter supports real-time data display, helps users quickly judge air cleanliness level. It is an ideal test instrument for environmental air quality monitoring and clean area routine inspection.
Features:
Semiconductor technology of ultra low power 32 bit microprocessor, 24 bit ADC acquisition chip, so with the high accuracy.
3.5 inch IPS industrial grade color screen, displaying each parameter.
Channel sizes: 0.5um, 1.0um, 2.5um, 10um. (Optional sizes 0.3um, 5.0um)
Support the Temperature/ Humidity sensor.
Different mode adjustable: quantity detecting mode and quality detecting mode.
Data logger function, the capacity is 100000 group data.
Optional function of micro printer to print the measurement data.
With the function of overvoltage protection, overcharge protection, short circuit protection, anti-electrostatic interference, anti-magnetic interference.
Chinese / English operation menu.
Technical Specification:
Light source | Laser diode(>100,000 hours MTBF) |
Sensor | Ultra high sensitivity optical sensor |
Particle size | 0.5um 、1.0um、2.5um、10um (Optional sizes 0.3um, 5.0um) |
Measuring range | 0-999ug/m3 and 0-999999PC/L |
Resolution | 1ug/m3 and 1PC/L |
Gas detection | With 1~4 gas type(Optional) |
Tem/Humidity inspection | Temperature：-40 ～ 60℃， Humidity：0-100%RH |
Verification standard | According to GB/T16292-1996 and ISO14644-1 |
Flow Rate | 2.83 L /min (0.1cfm) |
Sample time | 30s |
Measuring mode | Quantity mode (unit of PC/L ) and quality mode( unit of ug/m3) |
Detect methods | Time detecting or circle detection is adjustable |
Interface | RS232-USB |
Data Storage function | Real-time storage or timing storage is adjustable；Storage capacity of 100000 group data，can check the history data on the counter screen |
Print mode | Optional micro-printer, can reset the print period and print mode |
Working environment | Working temperature: 5 ～ 45℃ Working humidity: ≤90%RH，non-condensing |
Power supply | 4000mA rechargeable lithium battery |
Explosion-Proof grade | ExiaⅡCT4 |
Protection grade | IP65 |
Body material | ABS+PC |
Size and Weight | 220*85*55 mm（L×W×H），0.5 Kg（net weight） |
Accessory | Box, data cable, Charger, CD |
Remark: For different gas types, it used different gas sensor. If you have any requirement for other gas type or measurement range, please contact the manufacturer freely.
Applications: The Portable air quality detector can be widely used in the disease control center, health supervision, environmental monitoring, public area, family and other environment where need to detect the air quality detection.
