OC‑905 pump‑suction portable ozone O3 gas detector with imported electrochemical sensor, 100000‑group data storage & USB export, two‑stage sound‑light alarm, Ex ib IIC T4 Gb explosion‑proof for water‑treatment, disinfection workshop and industrial ozone safety monitoring.
Description:

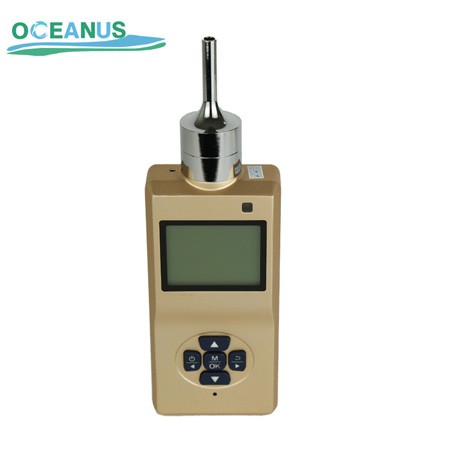

OC‑905 portable pump‑suction ozone(O3) gas detector adopts famous‑brand original imported electrochemical sensor and ultra‑low‑power 32‑bit microprocessor. Equipped with built‑in sampling pump with stable 300 ml/min flow rate for active suction sampling of ozone gas. Benefiting from four‑layer circuit wiring, intelligent algorithm, multi‑point calibration and temperature compensation, the instrument delivers stable performance and high‑accuracy measuring results. The 2.5‑inch dot‑matrix LCD screen directly displays real‑time ozone concentration data. It supports maximum 100 000 groups measurement‑data storage, and historical data can be exported to computer via USB cable. Two‑stage adjustable audible‑visual alarm will trigger when ozone concentration reaches preset alarm threshold. Featuring all‑English operation menu, aluminum‑alloy metal housing, Ex ib IIC T4 Gb explosion‑proof grade and IP54 protection grade, this handheld detector is widely used in water‑treatment plant, ozone‑disinfection workshop, biological‑pharmacy, food‑processing factory, laboratory, sewage‑treatment station and other occasions requiring ozone toxic‑gas safety monitoring.
Features:
Used original imported sensors and ultra-low power 32 bit microprocessor
The circuit adopts 4-layer wiring, which is stronger for weak signal processing and anti-interference ability
Intelligent algorithm + multi-point calibration + temperature compensation, more accurate measurement results
2.5 inch dot matrix display interface,reading intuitively
All English operation menu and easy operation.
| Gas type | Ozone O3 |
| Working principle | Electrochemical sensor |
| Measuring range | 0-10ppm、20ppm、50ppm、100ppm or customized |
| Resolution | 0.1ppm or customized |
| Concentration unit | %LEL, %Vol, ppb, ppm，mg/m3 |
| Precision | ±≤3%F.S |
| Repeatability | ≤±2% |
| Zero drift | ≤±1%(F.S/year) |
| Sampling mode | Pump-suction sampling (Flow rate of 300ml/minute) |
| Data storage | Can record 100000 group of measuring data |
| Response time | T90≤30s (different gas sensors have different response times) |
| Recovery time | ≤20s |
| Pre-heating time | ≤60s |
| Display | LCD dot matrix display of the Gas type, gas concentration unit, gas concentration data, time, battery status, data storage status; |
| Working temperature | -20℃～50℃(Special requirements need to be customized) |
| Working humidity | 10%-95%RH(non-condensing) |
| Working pressure | 86Kpa~106Kpa |
| Explosion-Proof grade | Ex ib IIC T4 Gb |
| Protection grade | IP54 |
| Alarm mode | Audible, visual. Two-color LED alarm light, sound≥75dB@25cm |
| Shell material | Aluminum alloy metal housing, ABS+PC |
| Power supply | 3.7VDC, 2600mAh,Rechargeable lithium battery DC5V USB charger |
| Charge time | ≤6 hours |
| Working time | ≥12 hours (Normal temperature electrochemical sensor) |
| Power consumption | 0.5W |
| Dimensions | 200.5*64.8*35.5mm （L*W*H） |
| Weight | 0.46KG |

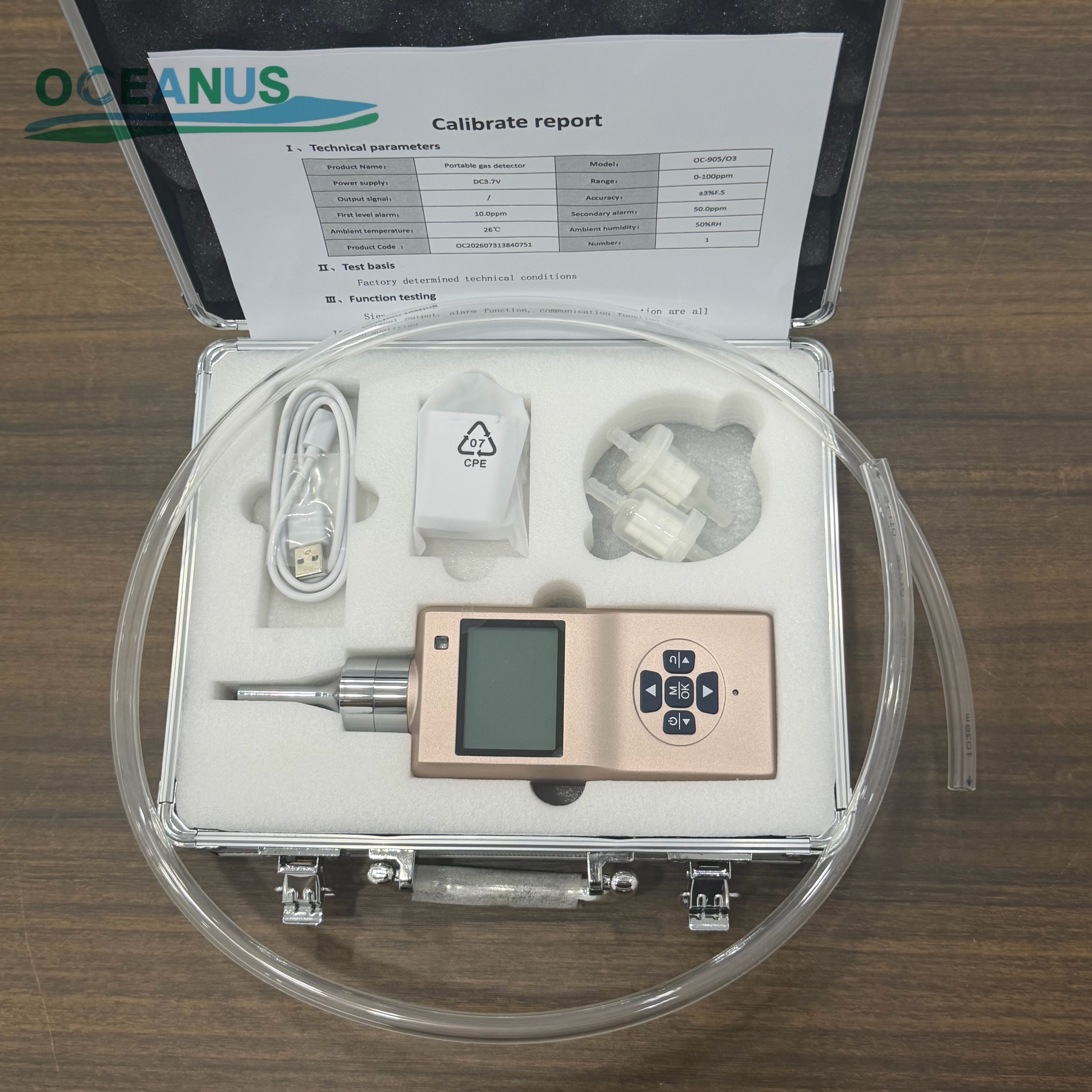

| Accessory | Box, instruction, USB charger , data line |
| Quality standard | GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010,GB12358-2006 |
Application field:
Water‑treatment plant ozone disinfection monitoring
Ozone disinfection workshop and food‑processing plant inspection
Biological‑pharmaceutical factory ozone‑site safety patrol
School laboratory ozone‑gas test
Sewage‑treatment station and industrial ozone‑generator site detection
