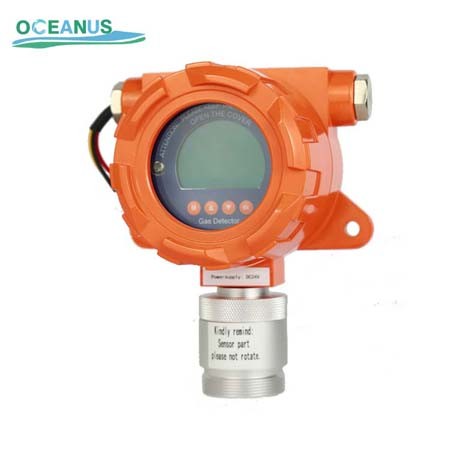

OC‑F08 fixed ozone O3 gas detector adopts high‑precision electrochemical sensor, supports real‑time concentration monitoring. Built‑in audible‑visual alarm warning when gas exceeds threshold. Explosion‑proof structure, stable signal, compatible with PLC and DCS, widely used for industrial ozone safety monitoring
Description:
OC-F08 series fixed Ozone gas detector used the original imported sensor and the ultra low power 32 bit microprocessor, so with the advantages of high precision, good repeatability, stable signal, respond quickly, etc. Possible connected with many controller system, such as PLC, DCS, computer and other, with the function of remote monitor and alarm, data logger and analysis.
Common applications is gas safety inspection and alarm for industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc., where need to inspect the Ozone O3 gas concentration.
Features:
4-20mA standard analog signal and RS485 digital signal output, ModBus RTU output, 200~1000HZ signal output, relay output, data restore, data logger (optional);
LED screen displaying the gas concentration, gas type, unit, instrument status etc.
Independent air chamber, the sensor is not required to replace the sensor calibration, automatic identification of key parameters of the sensor
Protection function to prevent high gas concentration attack.
Display the gas concentration in ppm, ppb and mg/m3 is selectable.
Infrared remote controller operation;
With the 16bit ADC acquisition chip, designed with four-layer circuit board, so with high anti-interference ability.
With the Ex-proof certificate, the Ex-proof grade is Exd II CT6.
Technical Parameter:
| Applicable Gas | Ozone (O3) |
| Detecting Range | 0~1000ppb、0-20ppm、100ppm、500ppm、1000ppm、5000ppm、50000ppm, 50 mg/m3、100 mg/m3、500 mg/m3、1000 mg/m3、5000 mg/m3、10000 mg/m3 or customized |
| Resolution | 1ppb、0.01ppm、0.1ppm、1ppm 0.01 mg/m3、0.1 mg/m3、1 mg/m3 |
| Sampling | Diffusion or pump-suction, circulation selectable |
| Accuracy | ≤±3%F.S |
| Repeatability | ≤±1% |
| Zero drift | ≤±1%(F.S/year) |
| Sensor Type | Electrochemical sensor |
| Sensor Life | 2~3 years |
| Response Time (T90) | ≤20s |
| Alarming mode | Audible-visual alarm（Optional） |
| Operating Environment | Temperature: -30℃~60℃ (Customized for special demands) Humidity: ≤95%RH (non-condensing); if >90%RH, can add the filter Pressure: 86kPa~106kPa |
| Working Voltage | 24V DC(16~30VDC) |
| Output Signals | (Standard)Three-wire system 4~20mA standard signals output, available for PLC, DCS, etc; (Optional) Four-wire system RS485 digital signal output; (Optional) Frequency signal 200~1000Hz output; Two-level relay output:220VAC 0.5A, 5VDC 0.5A |
| Installation Means | Wall mounted, Pipe type(Thread:M40*1.5 ) |
| Material of Body | Cast aluminum |
| Explosion-proof Index | Ex d IIC T6 |
| Protection Grade | IP66 |
| Electrical Interface | 3/4″NPT(Female Screw)、1/2″NPT(Female Screw) |
| Transmit Distance | ≤2000m |
| Dimension | 210 mm×140 mm×92 mm（L×W×H） |
| Weight | About 1.5Kg |
| Warranty | 12 months |
| Standards | GB15322.1-2003，GB3836.1-2010，GB3836.2-2010，GB3836.4-2010 |
