OC-9200 Online Dust And Noise Monitor System with LED Screen, real-time on-site data display. Supports dust, noise, meteorological parameters measurement, auto heating dehumidification, 4G GPRS cloud remote data reading for construction and environmental monitoring projects.
Description:

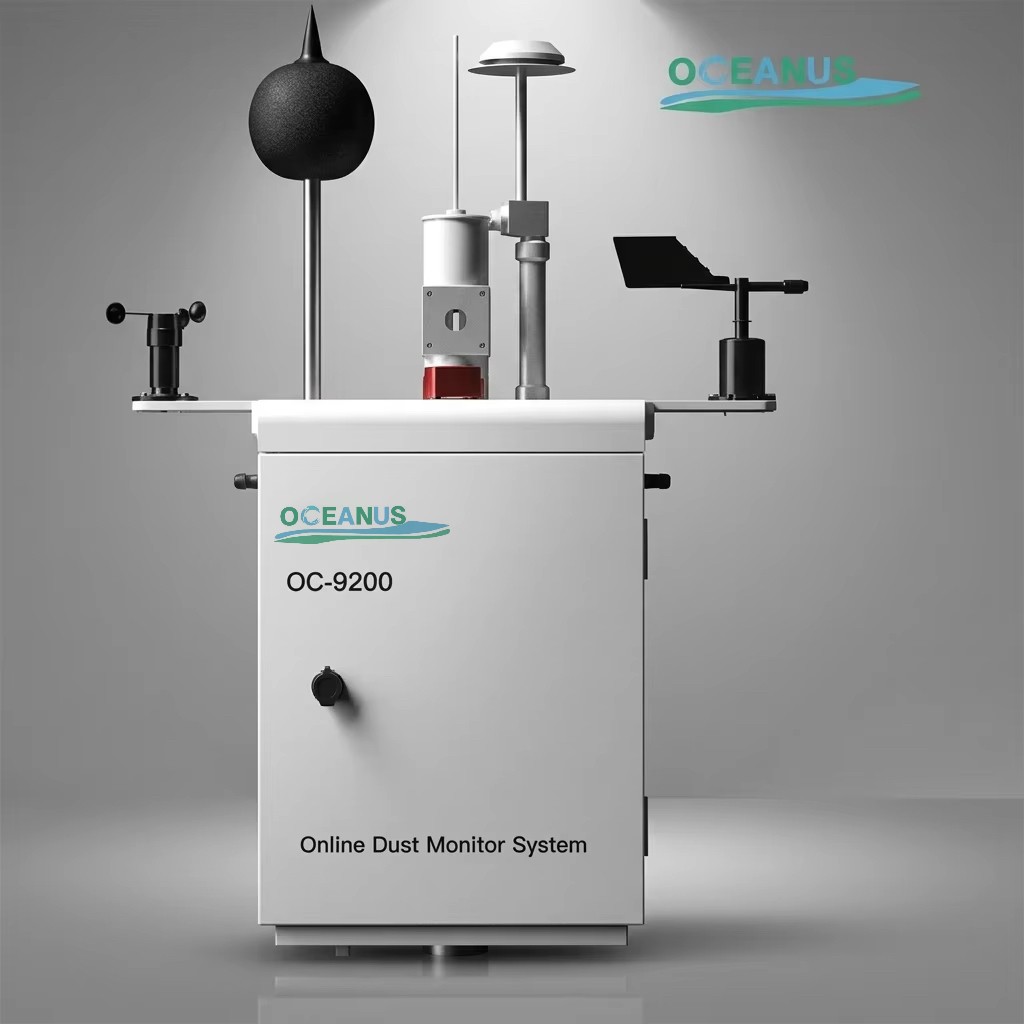

OC-9200 Online Dust And Noise Monitor System is a continuous environmental monitoring unit fitted with a clear LED display screen for on-site real-time data viewing. It monitors dust concentration, noise level together with temperature, humidity, wind speed, wind direction and air pressure. Built-in automatic heating and dehumidification module ensures stable operation in humid weather. It supports 4G & GPRS cloud transmission, enabling remote data access and data storage. Suitable for construction sites, mines, hydropower projects and third-party environmental monitoring.
Core Features
Modular design, convenient for large-scale grid deployment and batch layout
No need to replace sampling cutter, capable of simultaneous monitoring PM10, PM2.5 and TSP
Adopts industrial embedded processor, stable operation adaptable to severe outdoor working environment
Unique automatic heating and dehumidification function, effectively eliminate humidity interference on detection data
Long service life anti-interference sampling system, adjustable sampling cycle to meet diversified monitoring demands
Industrial-grade transmission module built-in, guarantee stable and reliable long-distance data transmission
Cloud platform supporting remote real-time data viewing, data storage and historical query
Multiple installation options available, including pole mounting, tripod mounting and wall mounting
Technical Parameter:
| Item | Data | ||
| Product name | Real time particulate monitor | ||
| Particulate | PM2.5, PM10, TSP (PM1 supporting customization) | ||
| Meteorological parameters | Temperature, Humidity, Wind speed, Wind direction, Barometric pressure, Noise, Rainfall, Solar radiation, etc.(Supporting customization) | ||
| Monitor method | Continuously, automatically and real‑time | ||
| Working principle | Light scattering technique | ||
| Dehumidification | With the automatic dehumidification function module | ||
| Sampling mode | Pump‑suction | ||
| Transmission Network | Automatically and real‑time upload data, supporting 4G/GPRS | ||
| Data transmission | Cloud platform | ||
| Power Supply | AC220V/50Hz/Solar power (optional) | ||
| Protection grade | IP55 | ||
| Optional parts | Solar panel, LED screen, Tripod, etc. | ||
System specification:
| Data efficient transmission rate | ≥95% |
| Remote control | Support for remote setting |
| Interface | RS485/RS232 port, Network port |
| Transmission network | Automatically and real-time upload data, optional 3G/4G/VPN/WIFI |
| Box material | Q235 spray, Stainless box optional |
| Scaffold material | Q235 |
| Scaffold height | Standard height is 4.5m, Flange connection(1m fixed underground, 2*1.5m+1*0.5m) |
| Lightning arrester | Length 1m, Q235 Galvanized material |
| Working environment | Temperature: -30~70℃ Humidity: 10%RH~90%RH Pressure: 65~108Kpa |
| Protection grade | IP55 |
| Power supply | AC220V/50Hz/Solar power (optional) |
Application Scenarios

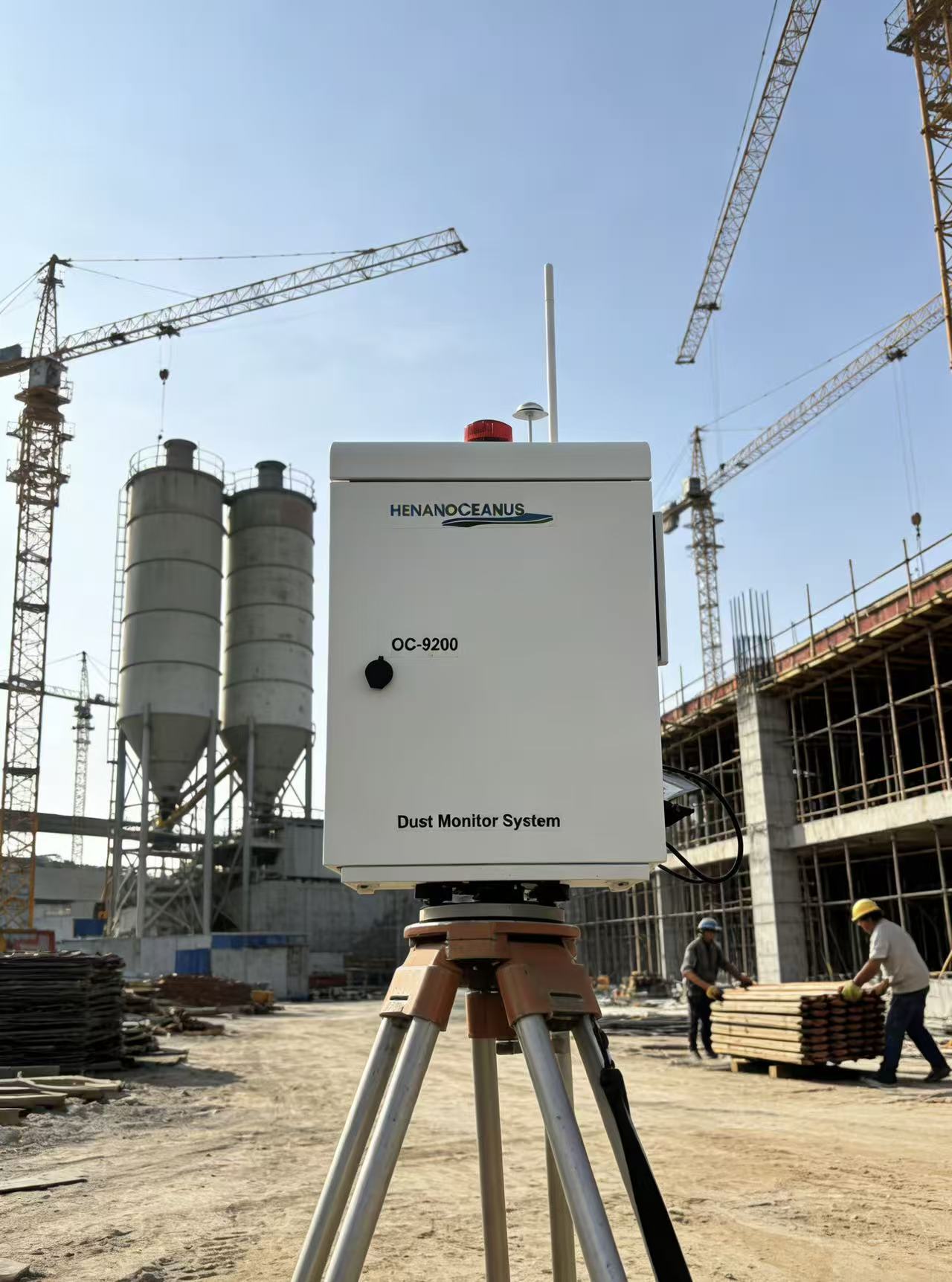

Construction sites, municipal road projects for dust pollution real-time supervision and over-limit early warning
Quarries, mines, concrete plants and bulk material storage yards for industrial dust continuous monitoring
Industrial parks, chemical enterprises for environmental particulate pollution regular monitoring
Urban environmental air quality grid monitoring, urban scenic spots and residential area ambient dust monitoring
Ecological environmental protection law enforcement fixed monitoring points for long-term pollution source data recording
