OC-9200 Online Air Quality Dust And Noise Monitor System with LED screen, auto heating dehumidification, 4G GPRS cloud data transmission, real-time dust, noise and meteorological parameters monitoring for environmental supervision projects.
Description:

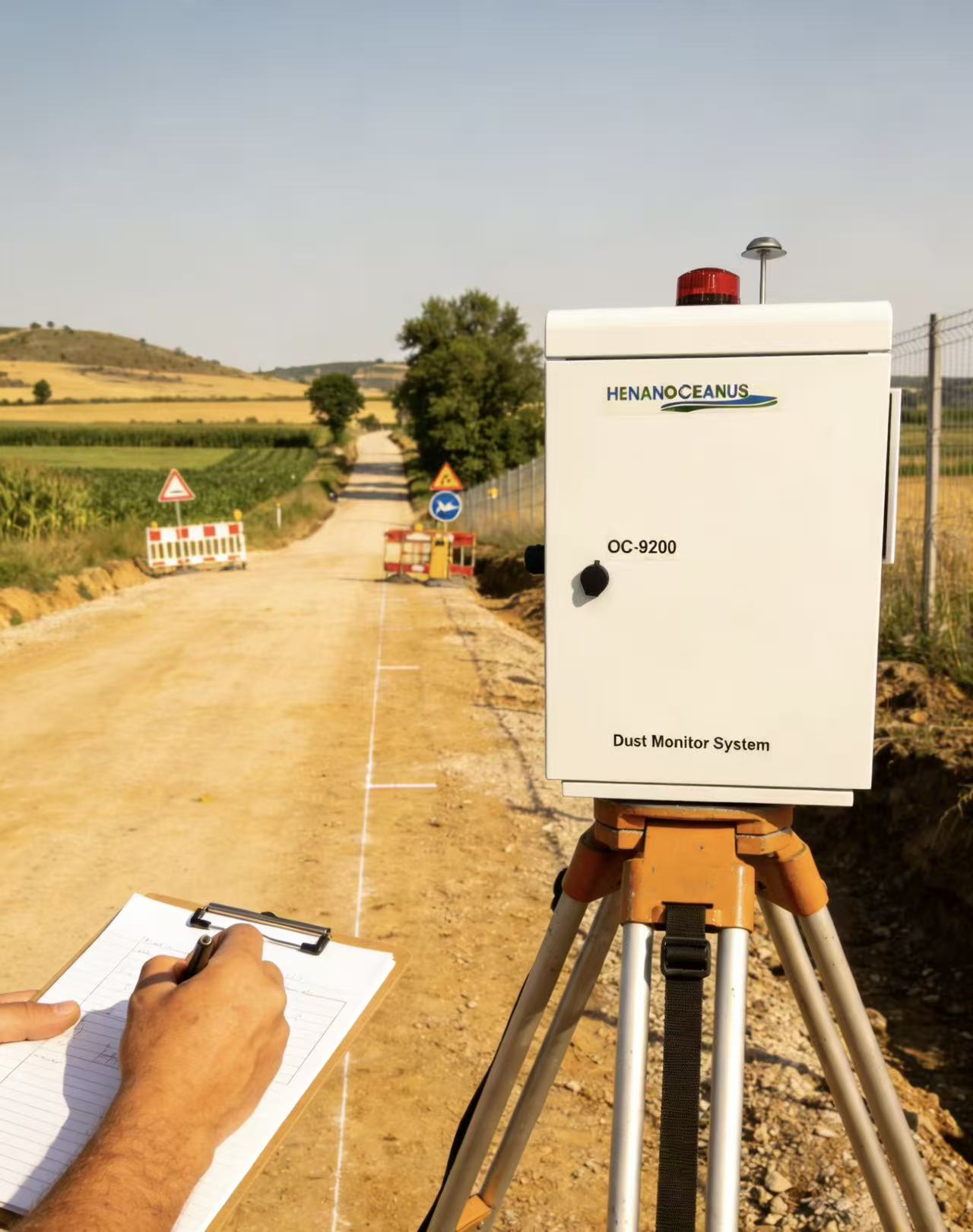

OC-9200 Online Air Quality Dust And Noise Monitor System is an integrated continuous environmental monitoring station. It can measure dust concentration, noise, temperature, humidity, wind speed, wind direction and air pressure in real time. Built-in automatic heating and dehumidification module protects sensors under high humidity and rainy conditions. Equipped with LED screen for on-site data display, it supports 4G and GPRS cloud remote data transmission. Monitoring data can be remotely checked and stored.
Application Scenarios
Construction sites, municipal road projects for dust pollution real-time supervision and over-limit early warning
Quarries, mines, concrete plants and bulk material storage yards for industrial dust continuous monitoring
Industrial parks, chemical enterprises for environmental particulate pollution regular monitoring
Urban environmental air quality grid monitoring, urban scenic spots and residential area ambient dust monitoring
Ecological environmental protection law enforcement fixed monitoring points for long-term pollution source data recording
Features:
Display screen and host in one.
Could inspect the environmental quality 24 hours continuously or timing-inspection;
GPRS and RS485 communication optional;
The meteorological factors could choose to connect: Temperature, Humidity, Wind direction, Wind speed, Pressure, etc.
The shell material available for the all bad environment, dust-proof, rust-proof and moisture-proof; The protection grade is IP65;
Available to connect with the information supervisory platform(optional);
Easy installation and operation.
Technical Parameter:
| Noise measuring range | 25~130dB(A), frequency range: 20Hz~12.5kHz |
| Dust size | PM2.5, PM10 and TSP (Total suspended particulate) |
| Dust Measuring range | PM2.5：0~500ug/m3 PM10: 0~2000ug/m3 TSP: 0~30000ug/m3 |
| Resolution | PM2.5：1ug/m3 PM10：1ug/m3 TSP： 1ug/m3 |
| Meteorological monitor(Optional) | Temperature: -40℃~70℃ Humidity: 0~100% Wind speed: 0~60m/s Wind direction: 0~360° |
| Output interface | RS232, RS485, GPRS optional |
| Power supply | 220V |
| Size | Screen: 30cm*30cm Monitor system: 42cm*40cm Vertical column: 3m or 1.5m(optional) |
| Sampling time | The standard time is 10 minutes or customized |
| Installation type | Vertical column or Wall-mounted |
