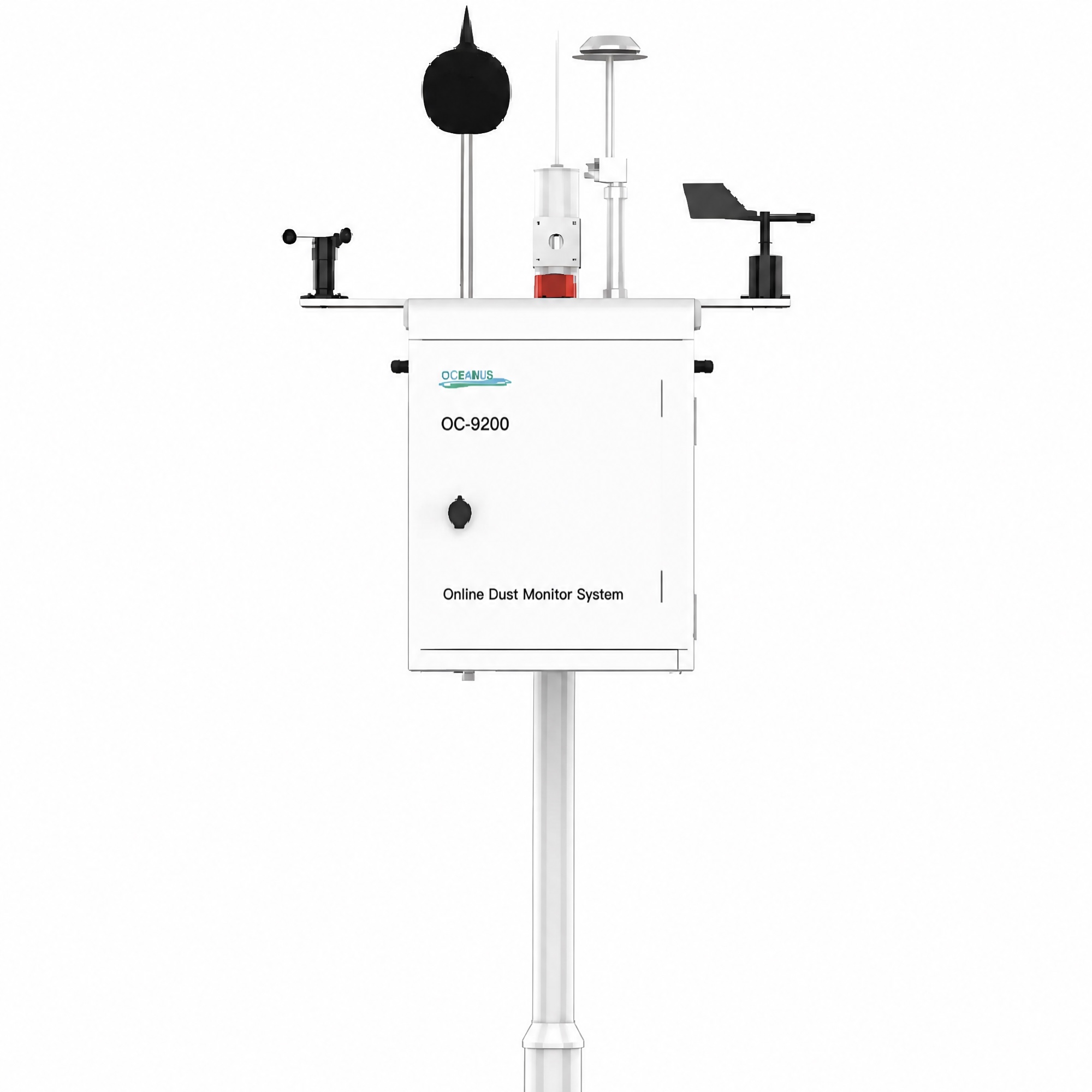

OC-9200 is an integrated environmental monitoring device for real-time outdoor air quality measurement. It detects noise, temperature, humidity, wind speed, wind direction and air pressure simultaneously. Equipped with automatic heating and dehumidification function, the monitor can work stably under high humidity and rainy conditions to avoid sensor failure. It supports 4G/GPRS cloud remote data access, allowing users to view and download monitoring data remotely. Widely used in construction sites, mines, hydropower projects and environmental supervision projects for continuous environmental data collection.
Description:
Online air quality monitor could inspect the multi environmental parameter, including of the Dust, Noise, Meteorological factors, etc. With the advantage of large measuring range, long working life and easy operation, etc. The measurement data could display on the LED screen.
The monitor system include of inspection device, also the different optional function of Surveillance Camera, Wireless or wired Transmission, Background Data Processing System and Information Supervisory Platform. For the measurement data, the platform with the function of alarm processing, record, query, statistics, report output, etc.
Applications:
The Dust and noise monitor system mainly used in the City management, Smart city, Construction sites, Garbage dumps, Demolition sites, Docks, Industrial parks, Communities, Road dust environmental monitor center, and other place need to inspect the air quality.
Features:
Display screen and host in one.
Could inspect the environmental quality 24 hours continuously or timing-inspection;
GPRS and RS485 communication optional;
The meteorological factors could choose to connect: Temperature, Humidity, Wind direction, Wind speed, Pressure, etc.
The shell material available for the all bad environment, dust-proof, rust-proof and moisture-proof; The protection grade is IP65;
Available to connect with the information supervisory platform(optional);
Easy installation and operation.
Technical Parameter:
| Noise measuring range | 25~130dB(A), frequency range: 20Hz~12.5kHz |
| Dust size | PM2.5, PM10 and TSP (Total suspended particulate) |
| Dust Measuring range | PM2.5：0~500ug/m3 PM10: 0~2000ug/m3 TSP: 0~30000ug/m3 |
| Resolution | PM2.5：1ug/m3 PM10：1ug/m3 TSP： 1ug/m3 |
| Meteorological monitor(Optional) | Temperature: -40℃~70℃ Humidity: 0~100% Wind speed: 0~60m/s Wind direction: 0~360° |
| Output interface | RS232, RS485, GPRS optional |
| Power supply | 220V |
| Size | Screen: 30cm*30cm Monitor system: 42cm*40cm Vertical column: 3m or 1.5m(optional) |
| Sampling time | The standard time is 10 minutes or customized |
| Installation type | Vertical column or Wall-mounted |
