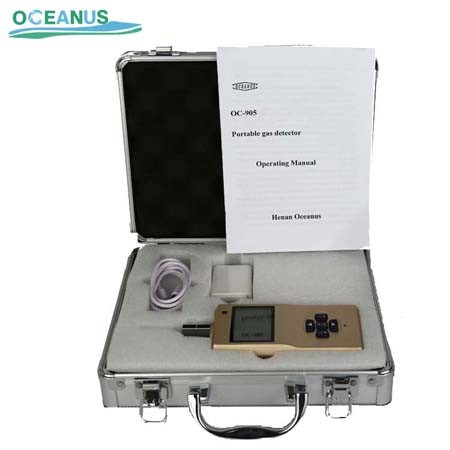

OC‑905 portable chlorine dioxide ClO2 gas detector adopts inner pump suction design and well‑known brand sensor, featuring stable performance and high measuring accuracy. It is dedicated to detect chlorine dioxide gas concentration on‑site. Real‑time gas value displays clearly on screen, supporting data export via USB cable. Widely applied in disinfection plant, water treatment, food processing, pharmaceutical factory and chemical sites for ClO₂ leakage inspection and safety monitoring.
Description:
OC-905 Portable ClO2 gas detector designed with the inner pump and the famous brand sensors, with stable performance and high accuracy. Used to detect the single gas concentration for the Combustible gas, Toxic gas, Carbon Dioxide, Oxygen, TVOC, etc. It can directly display the gas concentration data on the screen, the data also could be exported to the computer by USB cable.
For the portable Chlorine Dioxide gas detector, the common applications is gas safety inspection and alarm for industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc., where need to inspect the Chlorine Dioxide ClO2 gas concentration.
Features:
Used the original imported sensor, semiconductor technology of ultra low power 32 bit microprocessor, 24 bit ADC acquisition chip, so with the high accuracy.
2.5 inch dot matrix display interface.
All English operation menu and easy operation.
Unit data available for ppm and mg/m3.
The circuit installed the four layers of wire, so well anti-interference.
Explosion proof grade is Exd ib ⅡC T4 Gb.
Function:
Inspect the gas concentration and alarm when it reaches preset alarm level.
High accuracy, good stability and good repeatability, long working life.
One-key operation to restore to factory default setting.
Adjustable two-stage audible-visual alarm threshold value.
Powered by rechargeable lithium battery with big capacity.
The built-in pump could be controlled.
| Gas type | SF6 Sulfur Hexafluoride |
| Working principle | Infrared sensor |
| Measuring range | 0-1ppm、10ppm、50ppm、200ppm or customized |
| Resolution | 0.01ppm 0.1ppm or customized |
| Concentration unit | %LEL, %Vol, ppb, ppm，mg/m3 |
| Precision | ±≤3%F.S |
| Repeatability | ≤±2% |
| Zero drift | ≤±1%(F.S/year) |
| Sampling mode | Pump-suction sampling (Flow rate of 300ml/minute) |
| Data storage | Can record 100000 group of measuring data |
| Response time | T90≤30s (different gas sensors have different response times) |
| Recovery time | ≤20s |
| Pre-heating time | ≤60s |
| Display | LCD dot matrix display of the Gas type, gas concentration unit, gas concentration data, time, battery status, data storage status; |
| Working temperature | -20℃～50℃(Special requirements need to be customized) |
| Working humidity | 10%-95%RH(non-condensing) |
| Working pressure | 86Kpa~106Kpa |
| Explosion-Proof grade | Ex ib IIC T4 Gb |
| Protection grade | IP54 |
| Alarm mode | Audible, visual. Two-color LED alarm light, sound≥75dB@25cm |
| Shell material | Aluminum alloy metal housing, ABS+PC |
| Power supply | 3.7VDC, 2600mAh,Rechargeable lithium battery DC5V USB charger |
| Charge time | ≤6 hours |
| Working time | ≥12 hours (Normal temperature electrochemical sensor) |
| Power consumption | 0.5W |
| Dimensions | 200.5*64.8*35.5mm （L*W*H） |
| Weight | 0.46KG |
| Accessory | Box, instruction, USB charger , data line |
| Quality standard | GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010,GB12358-2006 |
Our After-sales service:
1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc.
2. Free calibration service and provide calibration methods.
3. One year warranty and lifetime warranty
