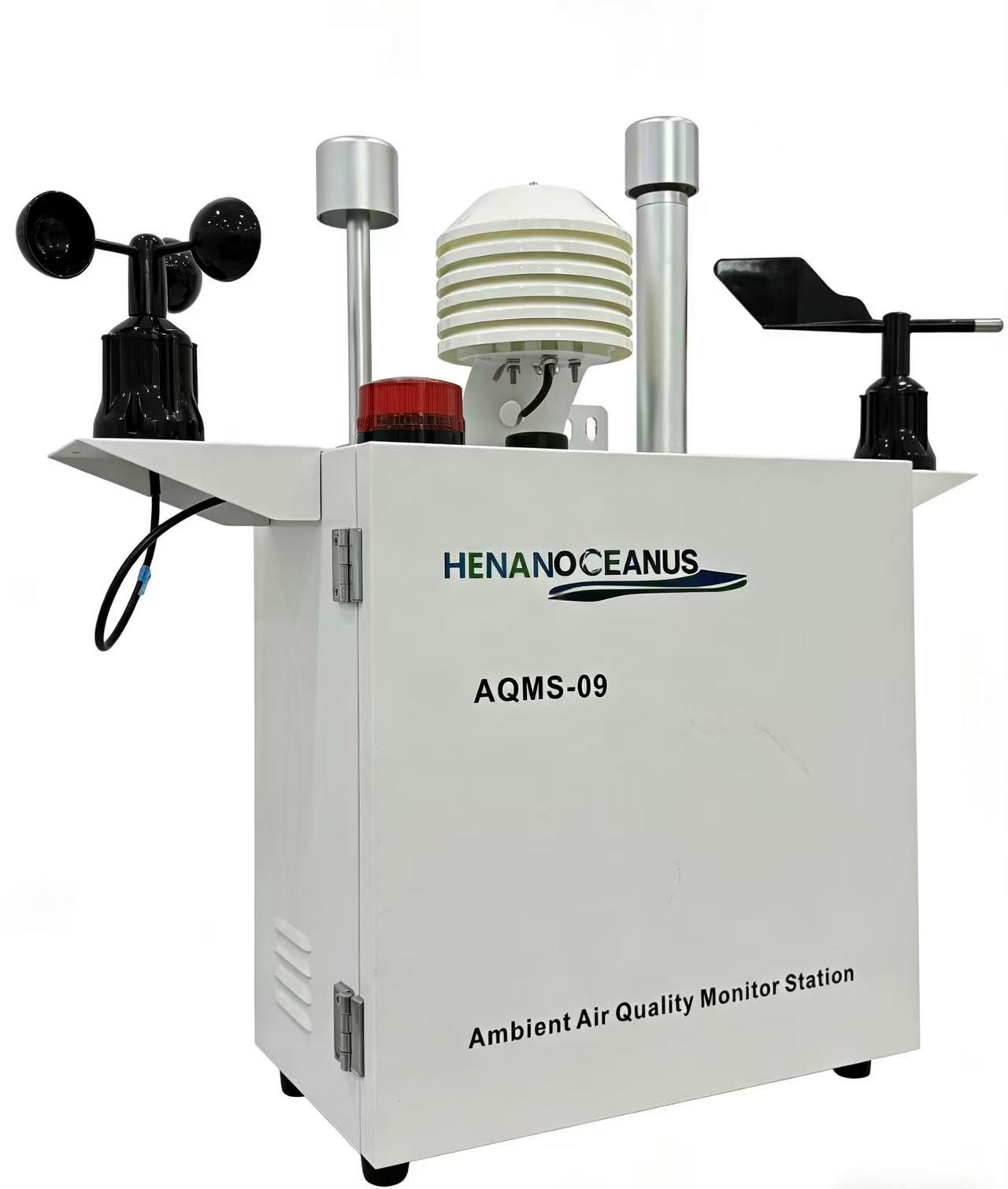

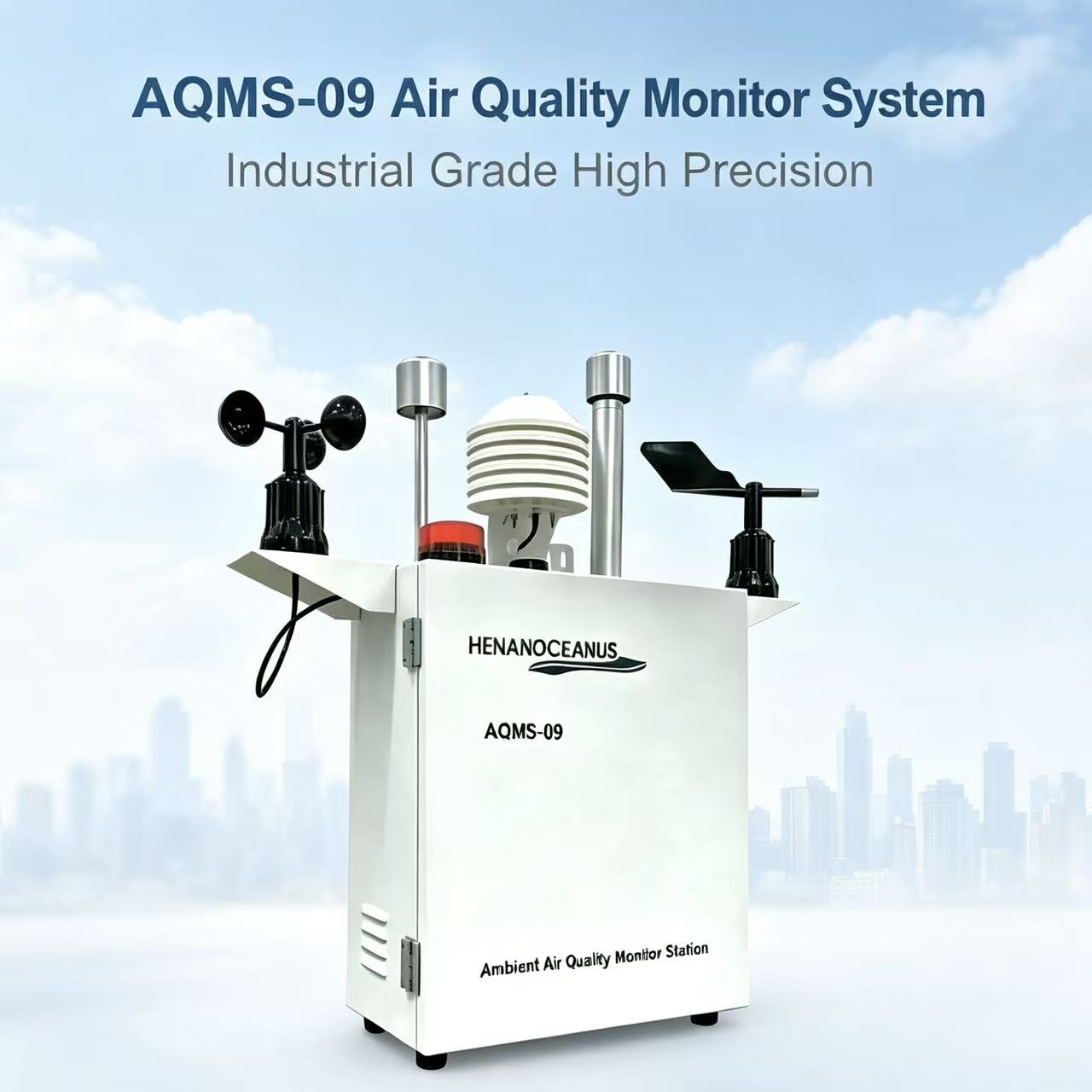

AQMS-09 Online VOCs Gas Monitoring System adopts professional PID photoionization sensor for high-sensitivity VOCs detection. Equipped with heating dehumidification module and LED display, it supports off-grid working and 4G cloud platform real-time data upload. 24-hour unattended monitoring ideal for humid reservoir, coastal and foggy mountainous areas.
Description
AQMS-09 Online VOCs Gas Monitoring System is a high-precision outdoor VOCs environmental monitoring device upgraded with industrial PID photoionization sensor. Different from ordinary TVOC sensors, the PID sensor provides ppb-level ultra-high sensitivity, fast response and wide detection range, accurately capturing trace volatile organic compound pollutants in the air.
Built-in intelligent heating and dehumidification system effectively eliminates condensation and humidity interference, ensuring stable and precise VOCs detection data even in high-humidity, foggy and dew-heavy environments such as reservoirs, coastal zones and mountainous areas. Equipped with outdoor LED display screen, real-time air quality data can be displayed visually on site.
The system supports full off-grid solar power operation and 4G full-network wireless transmission. All VOCs data, gas parameters, dust, noise and meteorological data are automatically uploaded to the cloud platform. Users can remotely view real-time data, historical curves and over-limit alarms, realizing fully unattended 24/7 outdoor environmental monitoring.
Widely used for ecological reservoir environmental protection, coastal industrial park VOCs supervision, mountain hydropower projects, wetland reserves and remote off-grid industrial zones, it provides accurate and compliant VOCs monitoring data for environmental management.
Core Features
High-precision PID Photoionization Sensor: ppb-level sensitive VOCs detection, fast response and high stability
Built-in Heating & Dehumidification: Anti-condensation, adapt to high-humidity reservoir, coastal and mountain areas
Real-time LED Display: On-site visual data viewing
Off-grid Solar Working: No mains power required for remote sites
4G Cloud Platform Transmission: Remote data check, storage and over-limit alarm
24h Fully Unattended Operation: Low maintenance cost for outdoor long-term monitoring
Detailed Technical Parameters
| Category | Item | Detection Method | Measuring Range | Resolution | Accuracy / Indication Error | Lower Detection Limit |
|---|---|---|---|---|---|---|
| Gaseous Pollutants | SO₂ Sulfur Dioxide | Electrochemistry | 0 ~ 500 ppb | 0.1 ppb | ±10% FS | 5 ppb |
| NO₂ Nitrogen Dioxide | Electrochemistry | 0 ~ 500 ppb | 0.1 ppb | ±10% FS | 5 ppb | |
| O₃ Ozone | Electrochemistry | 0 ~ 500 ppb | 0.1 ppb | ±10% FS | 5 ppb | |
| CO Carbon Monoxide | Electrochemistry | 0 ~ 20 ppm | 0.1 ppm | ±10% FS | 0.2 ppm | |
| TVOC Total Volatile Organic Compounds | PID Photoionization Detection PID | 0 ~ 10 ppm | 0.1 ppm | ±5% FS | 1 ppm | |
Particulate Matter
| PM2.5 | Laser Scattering | 0~1000 / 0~10000 / 0~30000 μg/m³ | 0.1 μg/m³ | ±10% | 2 μg/m³ |
| PM10 | Laser Scattering | 0~1000 / 0~10000 / 0~30000 μg/m³ | 0.1 μg/m³ | ±10% | 2 μg/m³ | |
| TSP Total Suspended Particulates | Laser Scattering | 0~1000 / 0~10000 / 0~30000 μg/m³ | 0.1 μg/m³ | ±10% | 2 μg/m³ | |
Meteorological Parameters
| Temperature | / | -40 ~ 123.8 ℃ | 0.01 ℃ | ±0.4 ℃ | / |
| Humidity | / | 0 ~ 100 %RH | 0.01 %RH | ±3 %RH | / | |
| Atmospheric Pressure | / | 70 ~ 120 kPa | 1 Pa | ±250 Pa | / | |
| Wind Speed | / | 0 ~ 60 m/s | 0.1 m/s | ±1 m/s | / | |
| Wind Direction | / | 0 ~ 359 ° | 1 ° | ±1 ° | / |
| Noise | Range：35 dB(A) ~ 110 dB(A) |
| Max error：0.5 dB(A) | |
| Self-noise：< 35 dB(A) | |
| Working temperature：-30 ℃ ~ 60 ℃ |
Remark: If your need parameters not listed, or any special request, please contact us for confirmation.
Our After-sales service:
1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc.
2. Free calibration service and provide calibration methods.
3. One year warranty and lifetime warranty
