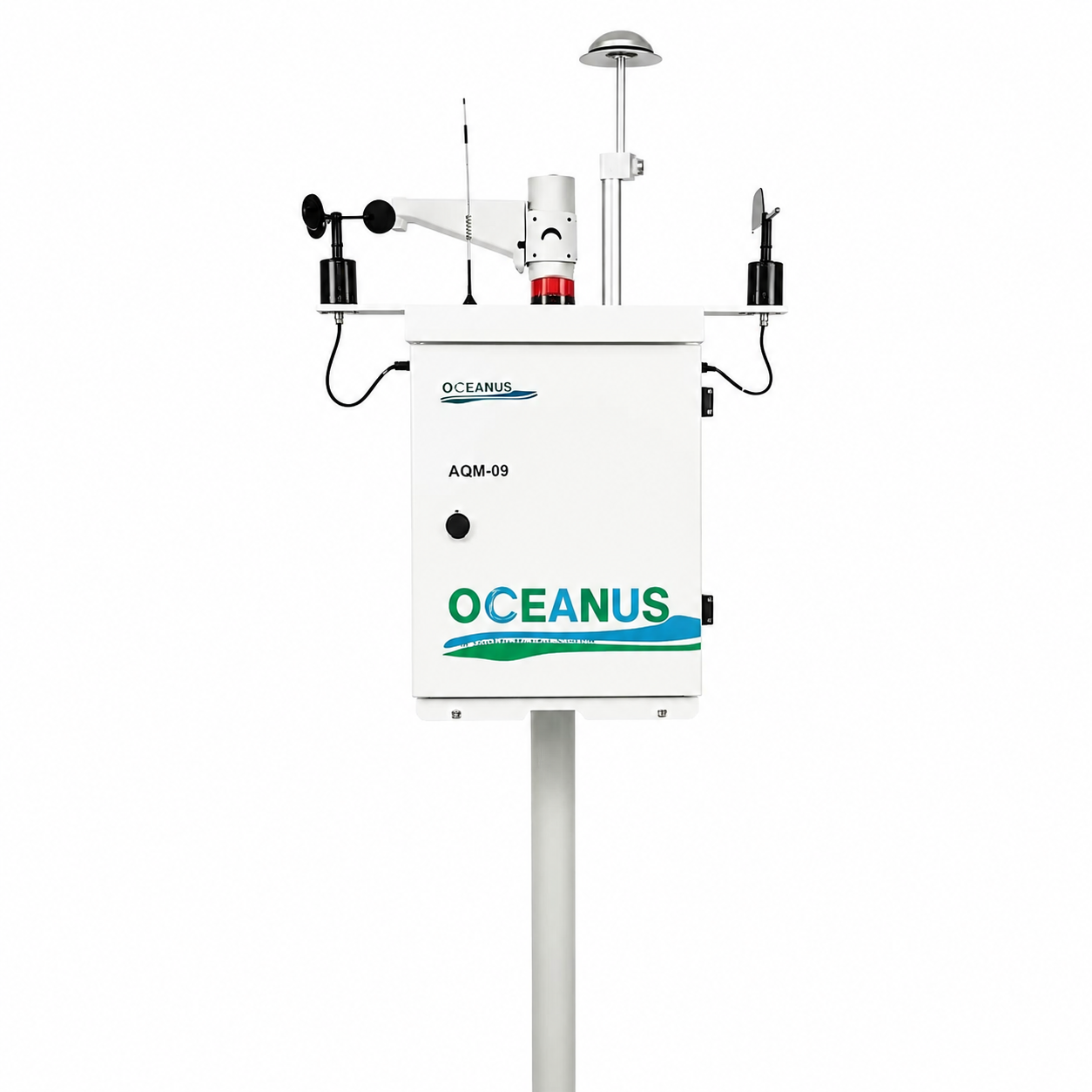

AQM-09 Online Flue Gas Monitoring System, continuous real-time flue gas & particulate monitoring with auto heating dehumidification, built-in NDIR CO2 monitor, 4G/GPRS cloud transmission, customizable parameters for industrial exhaust emission monitoring.
Description:
AQM‑09 Online Flue Gas Monitoring System realizes continuous real‑time detection of flue gas pollutants and particulate matter. Equipped with automatic heating and dehumidification module to eliminate moisture‑caused data deviation. It supports 4G/GPRS cloud data upload, optional solar power supply and flexible parameter customization, applied for emission supervision of power plants, chemical plants and incineration stations.
Core Features
Optional solar power kit, support off‑grid 24‑hour continuous monitoring
Multi‑parameter detection: Noise, TSP, PM2.5, PM10, PM1, TVOC, Temperature, Humidity, Rainfall, Wind Speed
Dynamic heating humidity compensation & cross‑interference compensation, adapt high‑humidity field environment
4G wireless communication with breakpoint resume, high data transmission rate
Pollutant over‑limit alarm, support external LED display and alarm light

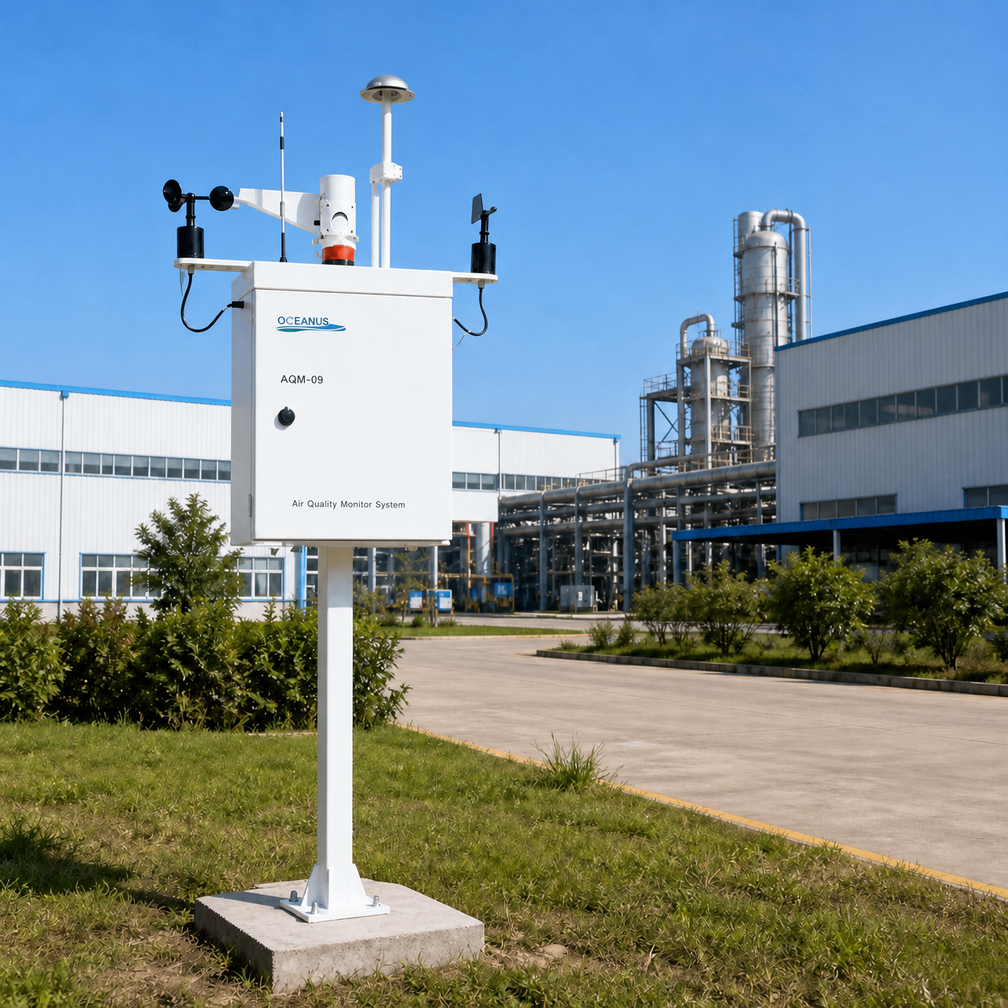

Rugged outdoor design, suitable for hydropower project, industrial area and construction site
Technical Parameter:
| Items | Description | Specification |
| Particle Modules | Monitor method | Continuously, automatically and real-time |
| Working principle | Light scattering technique | |
| Measurement data | PM2.5, PM10，TSP | |
| Measuring range | 0~1000ug/m3 (Range can be extended) | |
| Response time | ≤60s | |
| Measuring time | 0.1min (Shortest measurement time) 1min(Standard measurement time) | |
| Minimum detection limit | ≤0.001 mg/m3 | |
| Instrument parallelism | ≤±10% | |
| Data validity | ＞75% | |
| Dehumidification | With the automatic dehumidification function module | |
| Alarm function | With high concentration alarm function, the platform can configure the alarm threshold | |
| Gas modules | Monitor method | Continuously, automatically and real-time |
| Working principle | High precision Electrochemical sensor | |
| Gas monitor | SO2, NO2, CO, O3 | |
| Sulfur Dioxide SO2 | Measuring range: 0~2000ppb Resolution: 1ppb Response time: ＜45s | |
| Nitrogen Dioxide NO2 | Measuring range: 0~2000ppb Resolution: 1ppb Response time: ＜45s | |
| Ozone O3 | Measuring range: 0~2000ppb Resolution: 5ppb Response time: ＜45s | |
| Carbon Monoxide CO | Measuring range: 0~200ppm Resolution: 0.1ppm Response time: ＜45s | |
| Noise monitor | Measuring range: 30~130dB (A) | |
| Sampling frequency: ＜1s | ||
| Dynamic analysis range: ≥100dB (A) | ||
| Frequency weighting: A, C,Z | ||
| Time weighting: F, S | ||
| Meteorological parameters | Temperature: Measuring range: -30℃~60℃, Precision: ±0.3℃ (20℃) | |
| Humidity: Measuring range: 0~95%RH, Precision: ±5%(5%RH~95%RH, 25℃) | ||
| Wind direction: Measuring range: 0~360°, Precision: ±5° | ||
| Wind speed: Measuring range: 0~60m/s, Precision: ±0.3m/s | ||
| Barometric pressure: Measuring range: 600~1110hpa, Precision: ±0.5hpa | ||
System specification:
| Data efficient transmission rate | ≥95% |
| Remote control | Support for remote setting |
| Interface | RS485/RS232 port, Network port |
| Transmission network | Automatically and real-time upload data, optional 4G/GPRS |
| Box material | Q235 spray, Stainless box optional |
| Scaffold material | Q235 |
| Scaffold height | Standard height is 4.5m, Flange connection(1m fixed underground, 2*1.5m+1*0.5m) |
| Lightning arrester | Length 1.5~2m, Q235 Galvanized material |
| Working environment | Temperature: -20~50℃ Humidity: 5%RH~95%RH Pressure: 65~108Kpa |
| Protection grade | IP55 |
| Power supply | AC220V/50Hz/Solar power (optional) |
Our After-sales service:
1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc.
2. Free calibration service and provide calibration methods.
3. One year warranty and lifetime warranty
