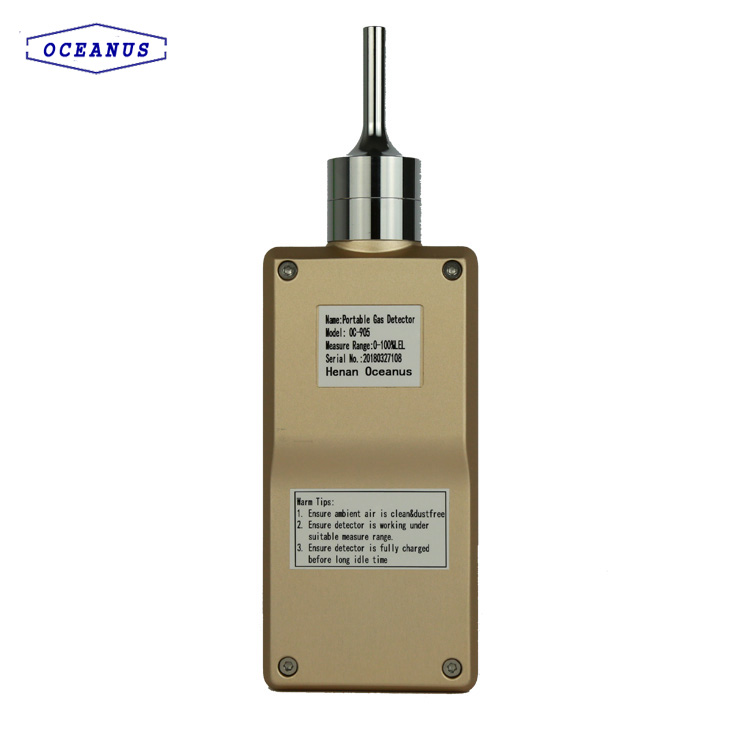

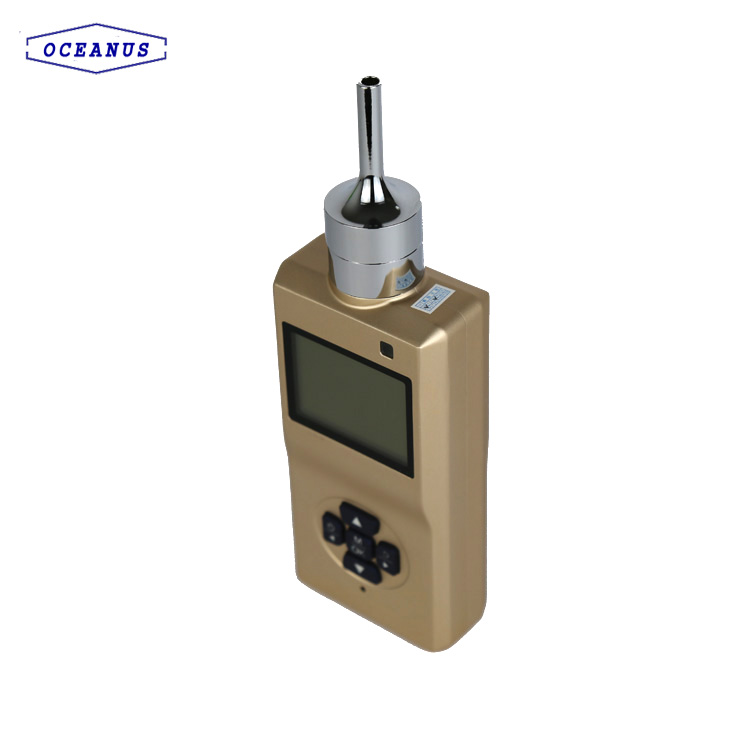

OC-905 Portable Tetrahydrothiophene C4H8S/THT gas detector with inner pump

2018-4-20      View:
  • Brand   Oceanus
  • Type   OC-905
  • Inquire Now
Introduction

Description:

OC-905 Portable C4H8S gas detector designed with the inner pump and the famous brand sensors, with stable performance and high accuracy. Used to detect the single gas concentration for the Combustible gas, Toxic gas, Carbon Dioxide, Oxygen, TVOC, etc. It can directly display the gas concentration data on the screen, the data also could be exported to the computer by USB cable.

For the portable C4H8S gas detector, the common applications is gas safety inspection and alarm for industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc., where need to inspect the C4H8S gas concentration.


Features:
Used the original imported sensor, semiconductor technology of ultra low power 32 bit microprocessor, 24 bit ADC acquisition chip, so with the high accuracy.

2.5 inch dot matrix display interface.

All English operation menu and easy operation.

Unit data available for mg/m3.

The circuit installed the four layers of wire, so well anti-interference.

Explosion proof grade is Exd ib ⅡC T4 Gb.

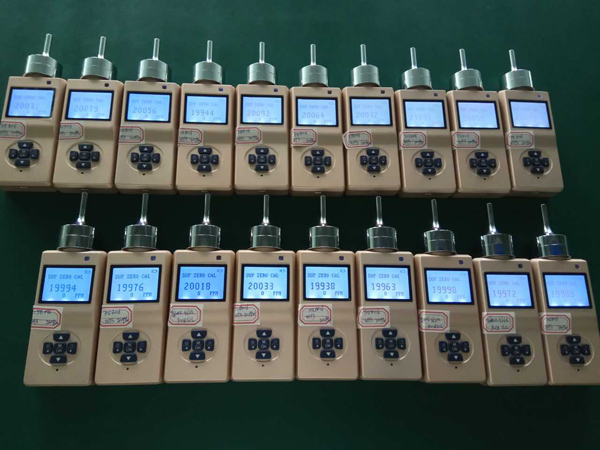

 OC-905 production

Function:

Inspect the gas concentration and alarm when it reaches preset alarm level.

High accuracy, good stability and good repeatability, long working life.

One-key operation to restore to factory default setting.

Adjustable two-stage audible-visual alarm threshold value.

Powered by rechargeable lithium battery with big capacity.

The built-in pump could be controlled.



Technical Parameter:

Gas type

Tetrahydrothiophene (C4H8S/THT)

Measuring range

0~50mg/m3 or Customized

Working principle

Electrochemical sensor

Resolution

0.01mg/m3

Precision

±≤3%FS or Customized

Repeatability

≤±1%

Zero drift

≤±1%(F.S/year)

Sampling mode

Pump-suction sampling (Flow rate of 300ml/minute)

Data storage

Can record 300000 group of measuring data

Response time

T90≤20s

Recovery time

≤20s

Pre-heating time

≤60s

Display

LCD dot matrix display of the Gas type, gas concentration unit, gas concentration data, time, battery status, data storage status;

Concentration unit

mg/m3

Working environment

Working temperature: -2060

Working humidity: 10%-95%RH(non-condensing)

Working pressure: 86Kpa 106Kpa

Explosion-Proof grade

Exd ib CT4 Gb

Protection grade

IP66

Alarm mode

Audible, visual

Shell material

Metal

Power supply

3.7VDC, 2800mAh,Rechargeable lithium battery

DC5V USB charger

Charge time

≤6 hours

Working time

≥24 hours

Dimensions

135*65*35mm

Weight

0.5KG

Accessory

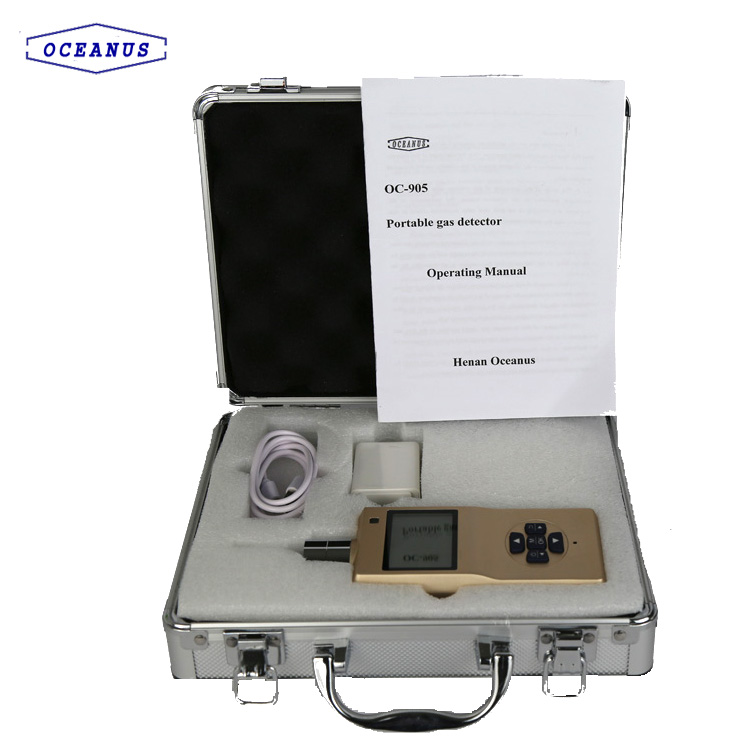

Box, instruction, USB charger , data line

Quality standard

GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010
