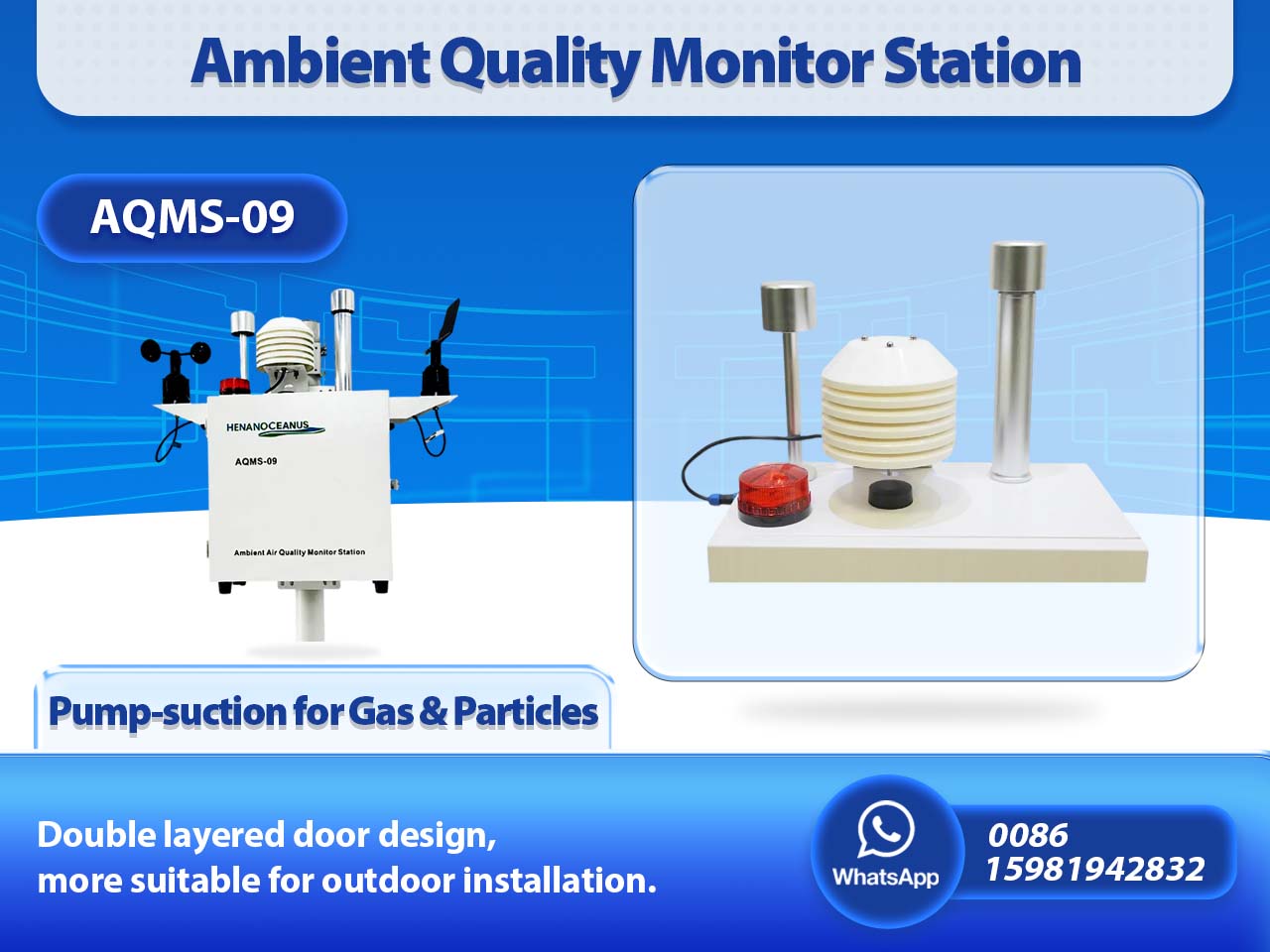

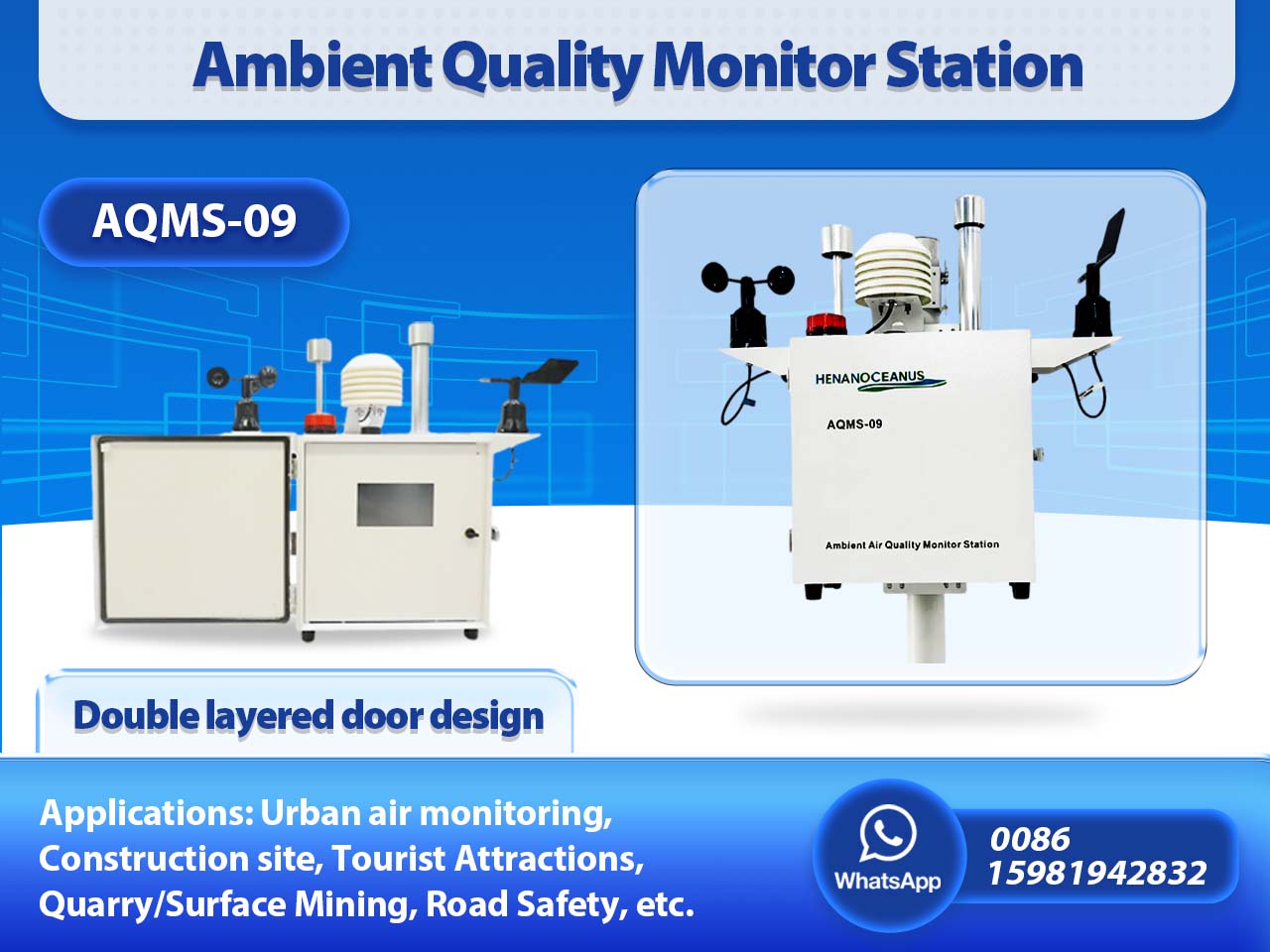

AQMS-09 Micro Ambient Air Quality Monitor Station for Environment monitoring

2025-11-20 View:

Brand Oceanus
Type AQMS-09

Introduction

AQMS-09 Micro Ambient Air Quality Monitor Station is an integrated open pollution source online monitoring terminal that includes particle monitor, gaseous pollutant monitor, meteorological parameter monitor, main control units, communication units, human-computer interaction units, and other components. Mainly used for online automatic monitoring of unorganized particulate matter emissions from construction sites, sand and gravel fields, coal yards, straw burning, and environmental air quality in residential areas, commercial areas, road traffic, construction areas, etc.

System Specification:

Item	AQMS-09 basic parameter
Power Supply	AC 220V / 50Hz or customized
Installation Height	3m (Or according local rules)
Data Display	LED outdoor screen(680x360x85mm)（Optional）
Data Display	7inch display screen device inside
Data Transmission	GPRS\4G
Sampling Method	Pump-suction for Gases & Particle
Working Temperature	(-30~55)℃
Working Humidity	(0~95)%RH
Working Air pressure	(80~110)kPa

Technical Parameter:

Parameter	Range	Resolution	Accuracy
Temperature	(-40 ~ 123.8)℃；	0.01 ℃	±0.4 ℃
Humidity	(0 ~ 100)%RH	0.01 %RH	±3 %RH
Air Pressure	(70 ~ 120)kPa	1 Pa	±250 Pa
Wind Speed	(0 ~ 32.4)m/s	0.1 m/s	±1 m/s
Wind Direction	(0 ~ 359)°	1°	±1°

Noise	Range：35 dB(A) ~ 110 dB(A)
	Max error：0.5 dB(A)
	Self-noise：< 35 dB(A)
	Working temperature：-30 ℃ ~ 60 ℃

Gas Name	Method	Range	Indication Error	Resolution	Low Limited	Repeatability	Drift
SO₂	Electrochemistry	(0 ~ 500) ppb	±10% FS	0.1 ppb	5 ppb	5 %	±10 % FS
NO₂	Electrochemistry	(0 ~ 500) ppb	±10% FS	0.1 ppb	5 ppb	5 %	±10 % FS
O₃	Electrochemistry	(0 ~ 500) ppb	±10% FS	0.1 ppb	5 ppb	5 %	±10 % FS
CO	Electrochemistry	(0 ~ 20) ppm	±10% FS	0.1 ppm	0.1 ppm	5 %	±10 % FS
TVOC	PID	(0 ~ 10) ppm	±5% FS	0.1 ppm	0.2 ppm	3 %	±10 % FS

Particle Size	Method	Range	Indication Error	Resolution	Low Limited	Repeatability	Drift
PM_2.5	Laser scattering	（0 ~ 1000）μg/m³	±10 %	0.1 μg/m³	2 μg/m³	5 %	±5 %FS
		（0 ~ 10000）μg/m³
		（0 ~ 30000）μg/m³
PM₁₀	Laser scattering	（0 ~ 1000）μg/m³	±10 %	0.1 μg/m³	2 μg/m³	5 %	±5 %FS
		（0 ~ 10000）μg/m³
		（0 ~ 30000）μg/m³
TSP	Laser scattering	（0 ~ 1000）μg/m³	±10 %	0.1 μg/m³	2 μg/m³	5 %	±5 %FS
		（0 ~ 10000）μg/m³
		（0 ~ 30000）μg/m³
