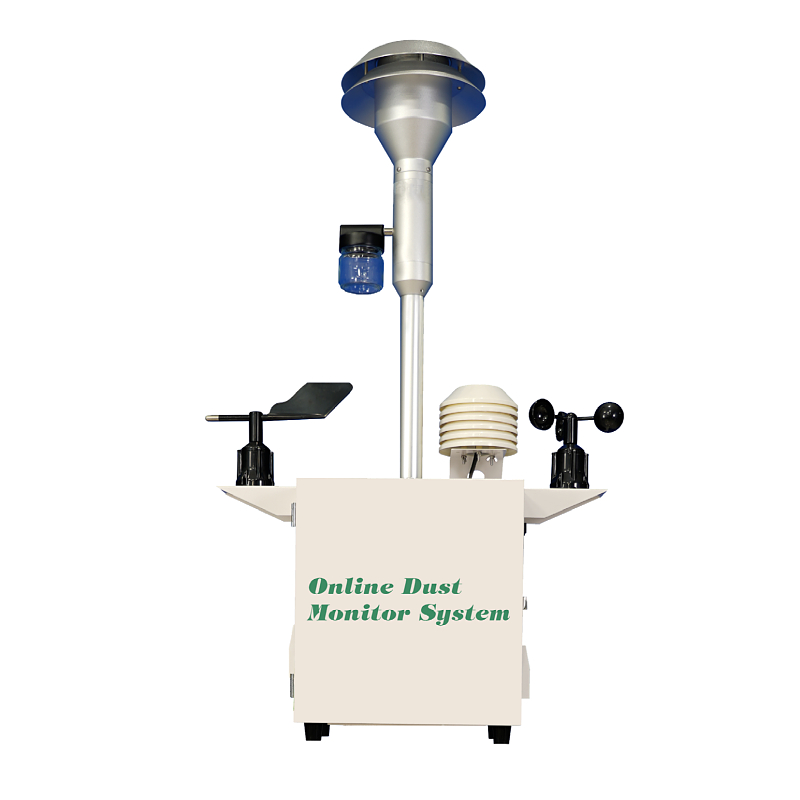

OC-9500 Dust monitoring system with Beta-ray technology

Company profile

We Henan Oceanus Company is located in Henan province, a land with a long history and profound cultural heritage, has been dedicated to the research, development, production, and sales of Gas detectors and Air quality monitor system since its establishment. With exquisite technology and outstanding quality, we have won widespread recognition in the global marketing.

01. Business areas

As a leader in the field of gas detectors, Henan OCEANUS continues to expand its business scope and provide customers around the world with customizable Gas detectors and Air quality monitor system of various types and specifications.

02. Values and ideas

Our company upholds the core values of integrity and quality service, focusing more on friendship with our customers. We always adhere to integrity management, customer-centered, and provide a full range of pre-sales, sales, and after-sales services to ensure that customers can be worry-free when using our products.

03. Customers Service

With excellent products and services, Henan Oceanus Gas detector and Air quality monitor system  have been exported to more than 30 countries around the world and have won widespread praise.

Product Description:

OC-9500 Dust monitoring system with beta ray adopts the working principle of beta ray attenuation to automatically measure and record airborne particulate concentration. The C14 emits a constant source of high-energy electrons (known as beta rays) through a spot of clean filter tape. These beta rays are detected and counted by a sensitive scintillation detector determine a zero reading. The OC-9500 system automatically advances this spot of tape to the sample nozzle, where the vacuum pump will pull the measured and controlled amount of dust-loaded air through the filter tape. Then the dirty spot will be placed back between the beta source and the detector, so causing an attenuation of the beta ray signal, which is used to assure the mass of the particulate matter on the filter tape.

According to the sampling flow, sampling time, filter membrane area and environmental parameters, the working condition concentration and standard condition concentration of particulate matter in ambient air are calculated to realize the automatic monitoring of ambient air particulate matter.

Applications:

Mining site, Quarries area, Smart city project, Urban ambient quality inspection, Port environmental monitoring, Dust detection in Ceramic factory, Tourist attractions, Surface Mining Garbage landfills, etc.

Function:

Highly accurate of PM2.5 and PM10 real-time monitoring, also supporting the Meteorological parameters (Temperature, Humidity, Wind speed, Wind direction, Air pressure) and Noise.

The DHS can eliminate the influence of the humidity on the measurement results and ensure the accurate measurement of semi volatile nitrate and organic compounds.

Adopt the advanced temperature and humidity compensation algorithm to ensure the accuracy of the monitoring data.

Automatically record the sampling data, once power off the data will be saved automatically and will start sampling after power on.

Support the data transmission of 4G LTE, RS485, etc.

Modular design and low maintenance costs.

Technical parameters:

Items	Details
Monitoring Parameters	Dust concentration (one of TSP, PM10, PM2.5), noise, temperature, humidity, air pressure, wind speed (optional), wind direction (optional)
Measurement Range	(0~10000) μg/m³
Indication Error	±8%
Indication Repeatability	≤0.9%
Zero Drift	±0.2% FS
Sampling Flow Rate	16.67 L/min
Sampling Flow Stability	Flow rate change at each test time point within 24h is ±2.2%/24h of the set flow rate; average flow rate change within 24h is ±1.1%/24h of the set flow rate
Clock Error	±0.31s
Display Resolution	0.1 μg/m³
Standard Membrane Reproducibility	≤±2%
Filter Tape	Glass fiber filter tape
Radiation Source	C-14
Concentration Alarm	Flexible setting within the full measurement range
Temperature	Measurement range -40℃ - 70℃, resolution 0.1℃, accuracy ±0.5℃
Humidity	Measurement range 0 - 100%RH, resolution 0.1%RH, accuracy ±3%RH
Air Pressure	Measurement range 10 - 110 kPa, resolution 0.1 kPa, accuracy ±0.5 kPa
Wind Speed (optional)	Measurement range 0 - 45 m/s, starting wind speed ≥0.5 m/s, resolution 0.1 m/s, accuracy ±0.3 m/s
Wind Direction (optional)	Measurement range 0 - 359°, resolution 1°, accuracy ±1°
Noise (optional)	Measurement range 30 dB - 130 dB, resolution 0.1 dB, accuracy ±0.5 dB
Power Supply	AC 220V ±5%, 55Hz / DC 24V (optional)
Average Power Consumption	60W
Operating Environment	-30℃ - 55℃, ≤100%RH (non-condensing)
Protection Class	IP53

Our After-sales service:

1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc.

2. Free calibration service and provide calibration methods.

3. One year warranty and lifetime warranty
