Portable Hydrogen Chloride OC-904 HCl gas detector

2018-4-11      View:
  • Brand   Oceanus
  • Type   OC-904
  • Inquire Now
Introduction

Description:

OC-904 Portable Hydrogen Chloride HCl gas detector which is applicable for HCl detection, with the original imported sensor, with the safe and reliable quality. It’s with the diffusion sampling mode, can be connected with the external pump. The portable gas detector can promise the security for the personnel working under the harmful environments.

 hcl gas detect

Features:

It used original imported sensor with good quality and high accuracy.

It can be combined with 1~4 different gas sensors for different gas type.

LCD dot matrix display, support both English and Chinese operating menu.

Adjustable preset two-stage alarm level.

With audible-visual-vibration alarm mode.

With a back clip, which is easy to carry when working.

Powered by rechargeable battery with big capacity which support a long working period.

 gas hydrogen chloride detector

Technical Specification:



Gas type

Hydrogen Chloride (HCl)

Sensor Type

Electrochemical sensor

Sensor life

2~3 years

Measuring range

0~10ppm

Display Information

Gas types, Concentration value, Concentration unit, Time, Battery status, Alarm status, etc.

Display

Large screen LCD

Data Storage

With data storage function with memory capacity of 1000 alarm records.

Sampling mode

Diffusion sampling (Available for connection with external pump)

Operating Language

Chinese or English operating menu is able to be changed freely.

Alarm Mode

Audible-visual-vibration alarm, sound75dB

Power Supply

3.6V, 1600mAh rechargeable lithium battery, continuous working period can reach to 10 hours or above.

Explosion-proof Grade

Ex ib IIB T3

Protection Grade

IP65

Working Environment

Working Temperature: -2050

Working Humidity: 0-95%RH (non-condensing)

Body Material

ABS and PC

Package

ABS carrying case

Dimensions

110*60*30mm

Weight

210g (with charger)

Warranty

2 years



 handheld gas alarm

Applications:

The portable Hydrogen Chloride HCl gas detector used in the gas safety inspection and alarm for industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc., where need to inspect the gas concentration of the HCl gas.

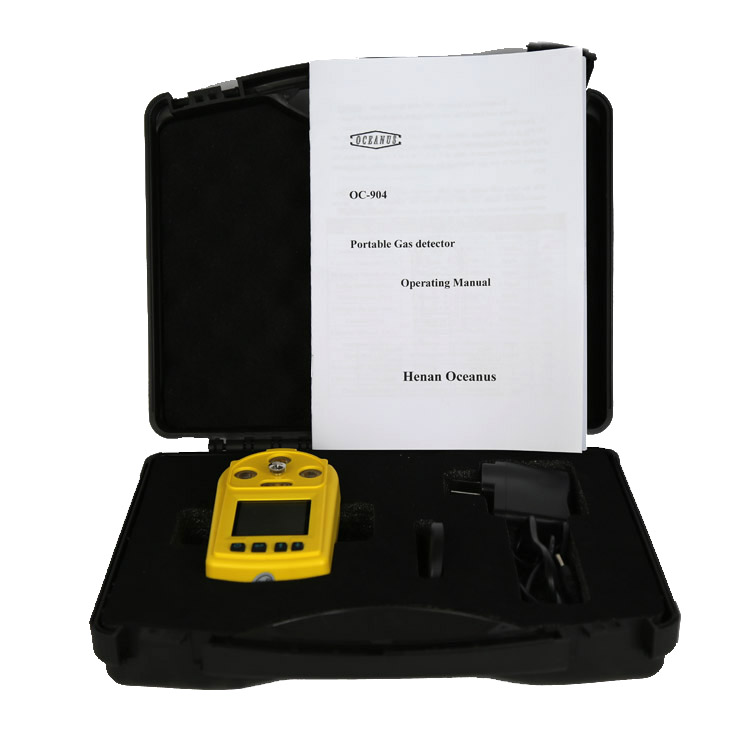

 pack box
