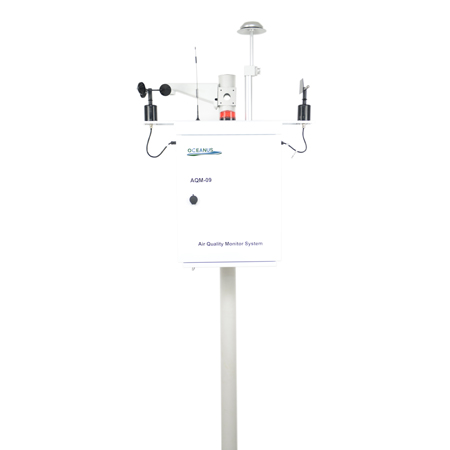

AQM-09 Ambient Air Monitoring Station

2019-7-1      View:
  • Brand   Henan Oceanus
  • Type   AQM-09
  • Inquire Now
Introduction



Description:

The AQM-09 Air Quality Monitoring Station can measure outdoor air pollutants in real-time, measuring data quickly and accurately. It can be customized for different applications demands, the measurement parameter can be choose from the following: the gas type Ozone(O3), Nitrogen Dioxide(NO2), Sulfur Dioxide(SO2), Carbon Monoxide(CO), Particulate matter PM2.5 and PM10, also the Noise, Meteorological parameters (including of Temperature, Humidity, Wind speed, Wind direction, Barometric pressure ), etc.


Features:

Installed with the famous brand sensor, with quick response, good linearity, stable performance and high resolution, the minimum unit up to ppb;

Designed with the all-in-one type and easy installation;

The modular design makes the later maintenance very convenient;

With the function of remote parameter correction, can save the costs;

With the built-in pump, respond quickly more than the normal diffusion sampling type;

With the Double-layer protection box, preventing it from external environment influence;

It’s with the Wireless network adapter, transmitting the data by GPRS, also with optional RS232 connection to display the data on the LED display screen;

With the Remote data acquisition system.


Applications:

Pollution control in traffic environment;

Road and tunnel pollution monitoring;

Urban air quality monitoring;

Emission monitoring of particulate and pollution sources;

Long-term air quality trends analysis;

Short-term atmospheric environmental impact assessment;

Environmental monitoring in residential areas, schools, Hospitals;

Park / forest environmental monitoring;

Industrial area air quality monitoring: Chemical plant, Power plant, Landfill, Incineration station, Port, Sewage treatment plant, Storage facilities, Underground facilities, etc.




Technical Parameter:

Items

Description

Specification

Particle Modules

Monitor method

Continuously, automatically and real-time

Working principle

Light scattering technique

Measurement data

PM2.5, PM10

Measuring range

0~10mg/m3

Response time

≤60s

Measuring time

0.1min (Shortest measurement time)

1min(Standard measurement time)

Minimum detection limit

≤0.001 mg/m3

Instrument parallelism

≤±10%

Data validity

75%

Dehumidification

With the automatic dehumidification function module

Alarm function

With high concentration alarm function, the platform can configure the alarm threshold

Gas modules

Monitor method

Continuously, automatically and real-time

Working principle

High precision Electrochemical sensor

Gas monitor

SO2, NO2, CO, O3

Sulfur Dioxide SO2

Measuring range: 0~2000ppb

Resolution: 1ppb

Response time: 45s

Nitrogen Dioxide NO2

Measuring range: 0~2000ppb

Resolution: 1ppb

Response time: 45s

Ozone O3

Measuring range: 0~20000ppb

Resolution: 5ppb

Response time: 45s

Carbon Monoxide CO

Measuring range: 0~200ppm

Resolution: 0.1ppm

Response time: 45s

Noise monitor

Measuring range: 30~130dB (A)
Sampling frequency: 1s
Dynamic analysis range: ≥100dB (A)
Frequency weighting: A, C,Z
Time weighting: F, S

Meteorological parameters

Temperature: Measuring range: -40℃~60℃, Precision: ±0.3℃ (20℃)
Humidity: Measuring range: 0~100%RH, Precision: ±2%(5%RH~95%RH, 25℃)
Wind direction: Measuring range: 0~360°, Precision: ±5°
Wind speed: Measuring range: 0~30m/s, Precision: ±0.3m/s
Barometric pressure: Measuring range: 30~110Kpa, Precision: ±2.5pa

System specification:

Data efficient transmission rate

≥95%

Remote control

Support for remote setting

Interface

RS485/RS232 port, Network port

Transmission network

Automatically and real-time upload data, optional 3G/4G/VPN/WIFI

Box material

Q235 spray, Stainless box optional

Scaffold material

Q235

Scaffold height

Standard height is 4.5m, Flange connection(1m fixed underground, 2*1.5m+1*0.5m)

Lightning arrester

Length 1m,  Q235 Galvanized material

Working environment

Temperature: -30~50℃

Humidity: 10%RH~90%RH

Pressure: 65~108Kpa

Protection grade

IP65

Power supply

DC12V, AC220V


AQM-09 Meteorological Monitoring Station
