Portable pump-suction SF6 gas detector Model: OC-905

2016-4-21      View:
  • Brand   Oceanus
  • Type   OC-905
  • Inquire Now
Introduction



Feature

Used the original imported sensor, semiconductor technology of ultra low power 32 bit microprocessor, 24 bit ADC acquisition chip, so with the high accuracy.

2.5 inch dot matrix display interface.

All English operation menu and easy operation.

Unit data avaible for PPM, %VOL, mg/m3, LEL, PPB.

The circuit installed the four layers of wire, so well anti-interference.

Explosion proof grade is Exd ib ⅡC T4 Gb.

SF6 gas detector

Function


Inspect the gas concentration and alarm when it reaches preset alarm level.

High accuracy, good stability and good repeatability, long working life.

One-key operation to restore to factory default setting.

Adjustable two-stage audible-visual alarm threshold value.

Powered by rechargeable lithium battery with big capacity.

The built-in pump could be controlled.

SF6 gas alarm

Applications

Common applications include chemical industry, petroleum, gas station, metallurgy, oil, municipal, environment protection, agriculture, biology pharmaceuticals, power, lab research and other industry environment where need to inspect sulfur hexafluoride (SF6) gas concentration.


Specifications

Gas type

Sulfur hexafluoride (SF6)

Working principle

Electrochemical

Measure range

0-10ppm, 20ppm, 50ppm, 100ppm, 200ppm, 500ppm, 1000ppm, 10000ppm or be customized.

Resolution

0.01ppm, .0.1ppm, 1ppm

Precision

3%FS

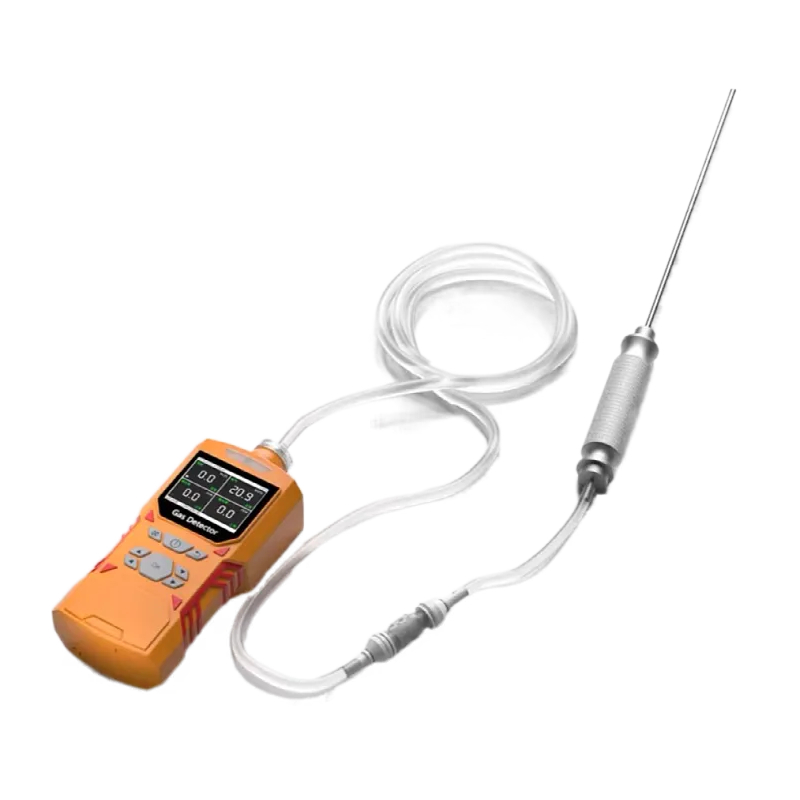

Sampling method

Pump-suction sampling

Data storage

About 100000 group of data capacity.

Response time

T9030s

Pre-heating time

60S

Repeatability

≤±1%

Display

LCD dot matrix display

Operating language

English

Concentration unit

ppmmg/m3, %vol, %LEL

Working temperature

-20℃~60

Working humidity

10%-95%RH(non-condensing)

Explosion-Proof grade

Exd ib CT4 Gb

Protection grade

IP66

Alarm mode

Audible, visual

Working pressure

86Kpa 106Kpa

Dimensions

135*65*35mm

Weight

0.5KG

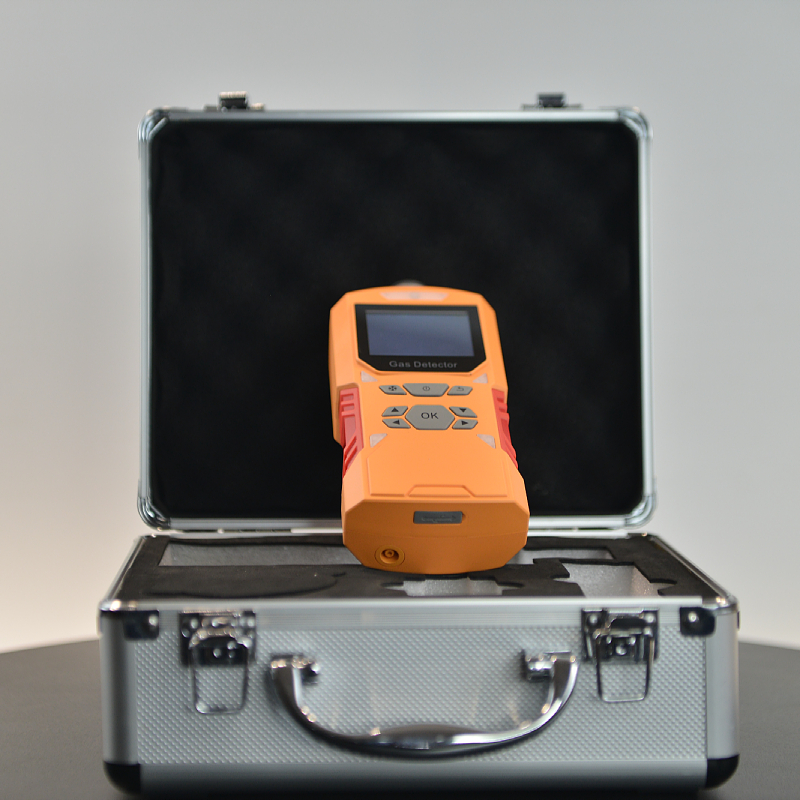

Accessory

Box, instruction, USB charger , data line

Quality standard

GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010



If any requirements for different gas detector, please contact with us freely. Send us the requirements of gas type or measuring range,  We can provide more details for you. OEM is ok, even for the sample order.
