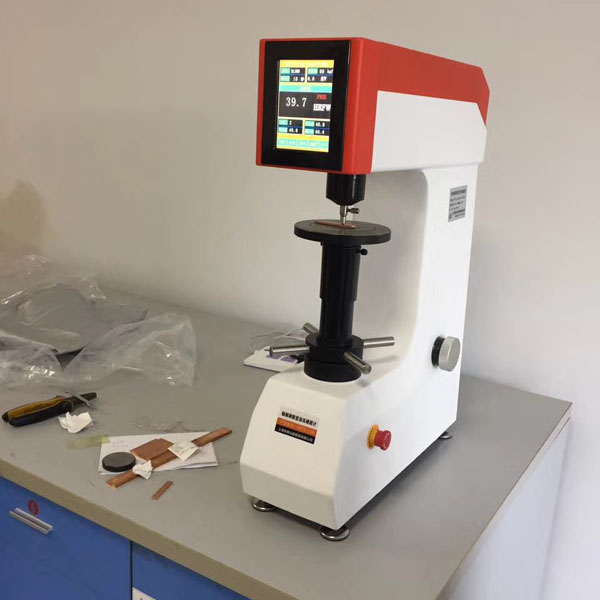

HRTS-150 Touch screen digital automatic Rockwell hardness tester designed with the beautiful appearance, multi function, high precision and performance, also the interface menu. The tester adopts the grating sensor and computer control, the hardness data will display on the LCD touch screen directly.

The Hardness tester can convert different hardness parameters automatically, also can identify the minimum thickness of the specimen and the testing environmental temperature. With the built-in printer, it read the hardness data automatically and avoid the manual operation error. HRTS-150 also equip with the emergency stop device to protect the worker’s safety.



Feature:

1、 The 7 inch LCD touch screen display the testing hardness value.

2、 The shell made by the special foundry molding casting, with the stable structure, can work under the severe environment; with the high class automobile paint with high anti scratch ability.

3、 Our company with the R& D team and we provide the service for the maintenance and upgrade.

4、 With the built-in system to debug the hardness error, the adjustment range is 95%~105%.



Applications:

Used in the following applications to test the hardness:

 Casting and forging parts;

 Sample test and acceptance inspection;

 Plane and cylindrical workpiece;

 Steel & Nonferrous metal;

 Automobile and Aviation industry;

 Hard alloy, Ceramic, Stainless steel.

 Laboratory and Workshop.



Technical Parameter:

Model	HRTS-150
Initial test force	10kgf(98.07N)
Total test force	60kgf(588N)   100kgf(980N)    150kgf(1471N)
Rockwell Scales	HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、HRL、HRM、HRP、HRR、HRS、HRV
Testing range	HRA:20-88   HRB:20-100  HRC:20-70  HRD:40-77
	HRE：70~94  HRF:60-100  HRG:30-94  HRH:80-100  HRK:40-100 HRL: 100~120  HRM:85~110  HRR: 114~125
Hardness Indication	Digital touch screen LCD display
Precision	0.1HR
Duration Time(s)	1~60
Execution Standard	GB/T230.1  GB/T230.2  JJG112、GB/T2848、GB/T3773、EN10109、ASTM E18、ISO6508
Max. Height of Specimen	170mm
Instrument Throat	165mm
Power supply	AC220V+5%,50~60Hz
Dimension(L*W*H)	550*220*730mm
Net weight	About 85kg



Accessories:

Name	Quantity
Rockwell diamond indenter	1pc
Standard block	3pcs
Fuse 2A	2pcs
Operation manual	1pc
φ1.5875mm ball indenter	1pc
Test bench	3pcs
Dust proof cover	1pc
Power cable	1pc
USB cable	1pc
Printer paper	1pc
Handheld case	1pc
Farmar A.B.C	3pc







Our company provides the different type Hardness tester, including of the Rockwell Hardness tester, Leeb Hardness tester, Barcol Hardness tester, Webster Hardness tester, Micro Hardness tester.



If you want to know more details, welcome to contact us.
