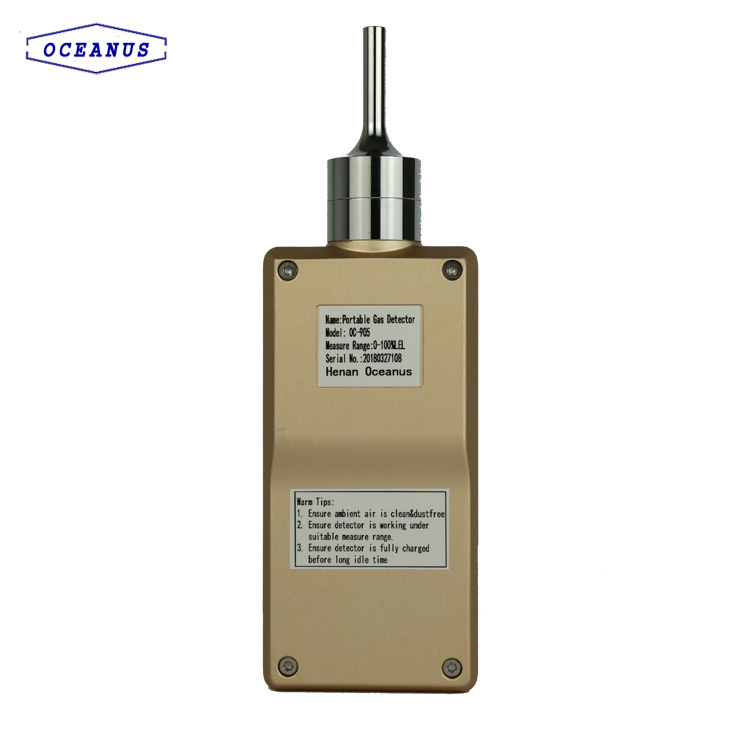

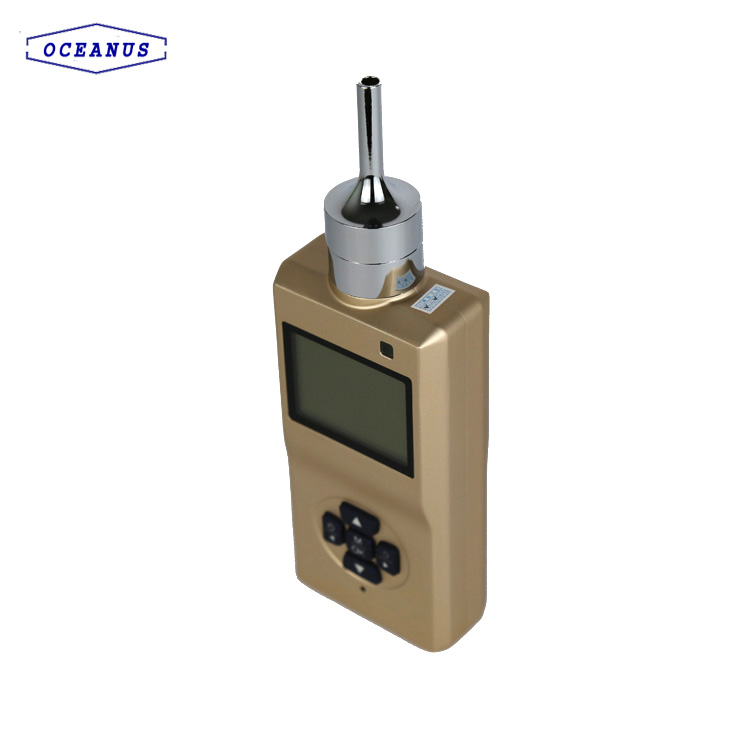

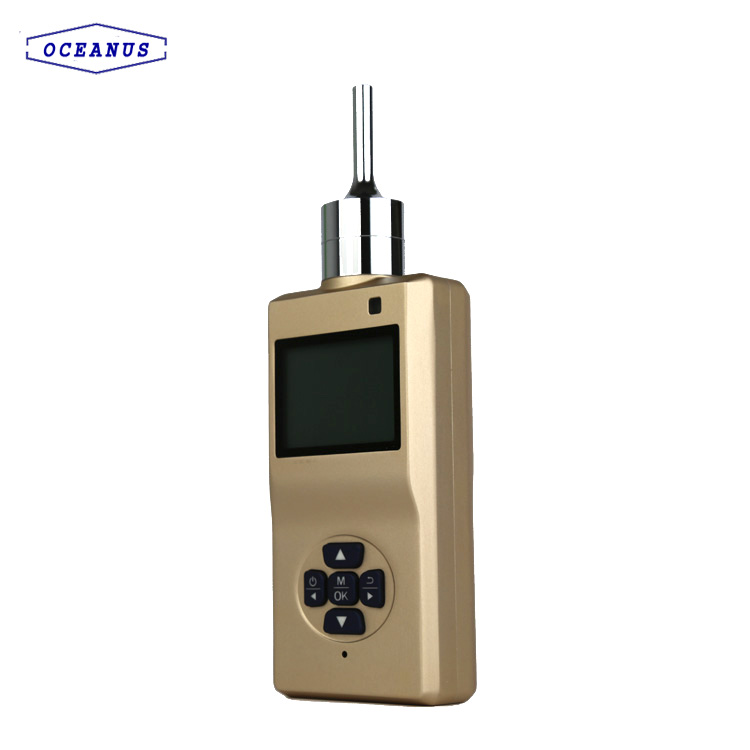

OC-905 Portable Argon Ar gas detector with inner pump

2018-3-9      View:
  • Brand   Oceanus
  • Type   OC-905
  • Inquire Now
Introduction

Description:

OC-905 Portable Argon gas detector designed with the inner pump and the famous brand sensors, with stable performance and high accuracy. It can directly display the gas concentration data on the screen, the data also could be exported to the computer by USB cable.

For the portable Ar gas detector, the common applications is gas safety inspection and alarm for industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc., where need to inspect the Argon Ar gas concentration.

Customized N2 gas detector


Features:
Used the original imported sensor, semiconductor technology of ultra low power 32 bit microprocessor, 24 bit ADC acquisition chip, so with the high accuracy.

2.5 inch dot matrix display interface.

All English operation menu and easy operation.

Unit data available for %vol.

The circuit installed the four layers of wire, so well anti-interference.

Explosion proof grade is Exd ib ⅡC T4 Gb.

 our produce house

Function:

Inspect the gas concentration and alarm when it reaches preset alarm level.

High accuracy, good stability and good repeatability, long working life.

One-key operation to restore to factory default setting.

Adjustable two-stage audible-visual alarm threshold value.

Powered by rechargeable lithium battery with big capacity.

The built-in pump could be controlled.



Technical Parameter:

Gas type

ArgonAr

Measuring range

05%vol, 30%vol, 100%vol or Customized

Working principle

Electrochemical sensor

Resolution

0.01%vol

Precision

±≤3%FS

Repeatability

≤±1%

Zero drift

≤±1%(F.S/year)

Sampling mode

Pump-suction sampling (Flow rate of 300ml/minute)

Data storage

Can record 300000 group of measuring data

Response time

T90≤20s

Recovery time

≤20s

Pre-heating time

≤60s

Display

LCD dot matrix display of the Gas type, gas concentration unit, gas concentration data, time, battery status, data storage status;

Concentration unit

%vol

Working environment

Working temperature: -2060

Working humidity: 10%-95%RH(non-condensing)

Working pressure: 86Kpa 106Kpa

Explosion-Proof grade

Exd ib CT4 Gb

Protection grade

IP66

Alarm mode

Audible, visual

Shell material

Metal

Power supply

3.7VDC, 2800mAh,Rechargeable lithium battery

DC5V USB charger

Charge time

≤6 hours

Working time

≥24 hours

Dimensions

135*65*35mm

Weight

0.5KG

Accessory

Box, instruction, USB charger , data line

Quality standard

GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010


OC-905 box
