Fixed combustible gas detector for LPG station

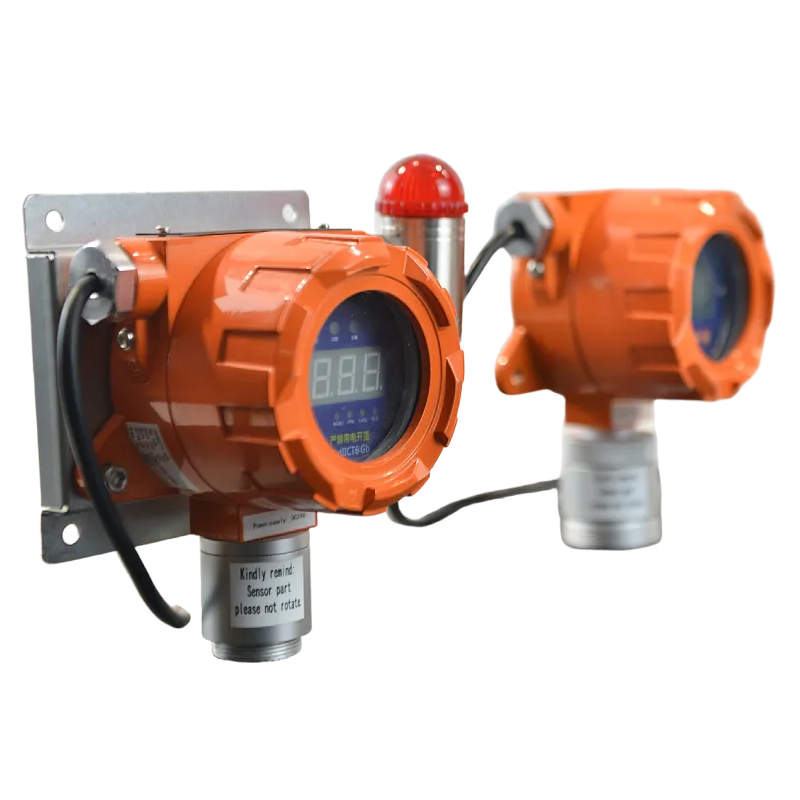

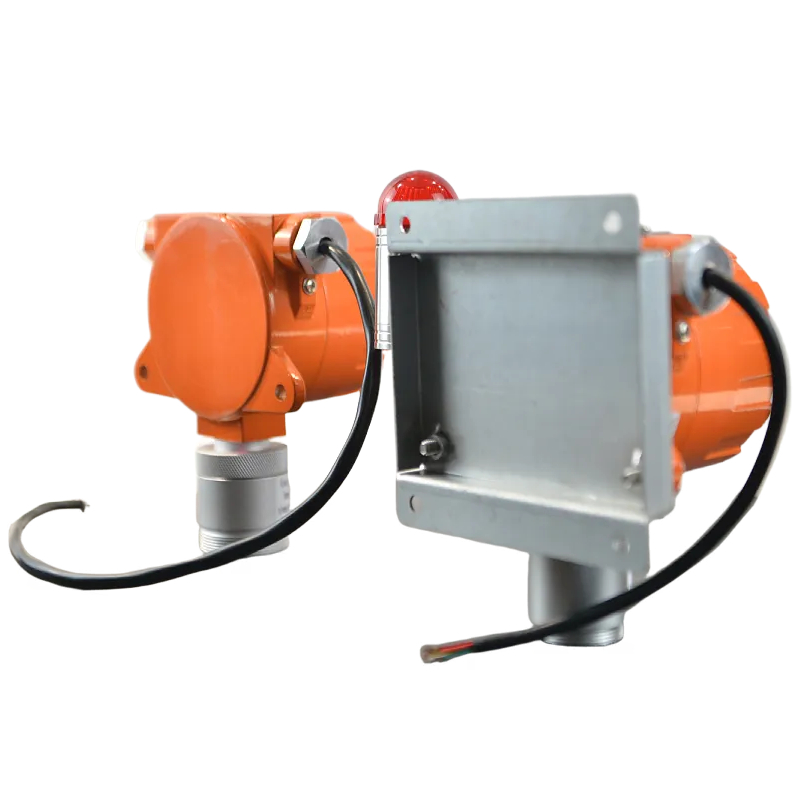

OC-F08 fixed combustible gas monitor used high performance gas sensor with good repeatability and long performance life. It adopt microcontroller technology and imported chip to get refined calculation. The enclosure material used explosion proof cast aluminum with resistance to corrosion. Used to inspection combustible LPG gas concentration in industrial environments or LPG station.

Features:

1) Used imported sensor with high sensibility and accuracy.

2) Standard 4-20mA output, two contact relay output.

3) LED display clearly shows LPG gas leak concentration.

4) Optional audible-visual alarm.

5) Remote controller, simple operation.(Optional)

6) Possible to connect to DCS system directly.

7) Optional data logger function.

Parameter:

1) Measurement range is 0-100%LEL, resolution is 1%LEL.

2) Output signal:

Three-wire system 4~20mA standard signals output; longest transmit distance is 1000m;

Four-wire system RS485 signal output; longest transmit distance is 1800m;

Two-level passive contact output:220VAC 3A, 24VDC 3A

3) Setting method: remotely operated by remote controller.

4)Sampling: Diffusion

5) Accuracy: ≤±3%F.S

6) Sensor Life: 2 to 3 years

7) Response Time (T90): ≤20s

8) Working Voltage: DC 24V(16~30 DV)

9) Electrical interface:3/4″NPT(Female Screw)、1/2″NPT(Female Screw)

10）Dimension: 200 mm×160 mm×80mm

11）Weight: About 1.5kg



We also produce control unit, used together with our gas detector, to display the concentration and alarm. If you need a whole gas detection solution, please contact with us.
