OC-904 Portable Phosgene (COCl2) gas detector

2018-4-11      View:
  • Brand   Oceanus
  • Type   OC-904
  • Inquire Now

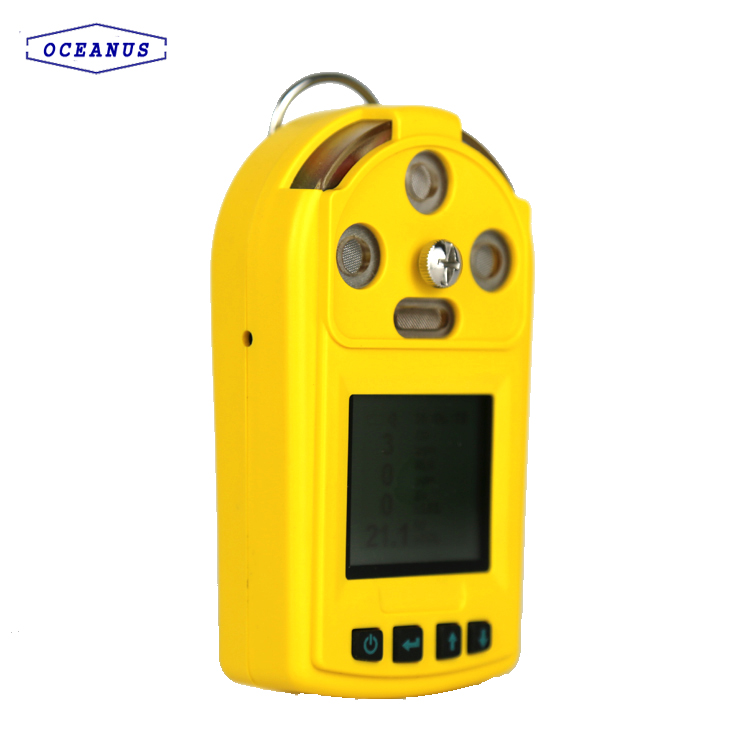

OC-904 Portable Phosgene (COCl2) gas detector which is applicable for COCl2 detection, with the original imported sensor, with the safe and reliable quality. It’s with the diffusion sampling mode, can be connected with the external pump. The portable gas detector can promise the security for the personnel working under the harmful environments.

 oc-904 detector


It used original imported sensor with good quality and high accuracy.

It can be combined with 1~4 different gas sensors for different gas type.

LCD dot matrix display, support both English and Chinese operating menu.

Adjustable preset two-stage alarm level.

With audible-visual-vibration alarm mode.

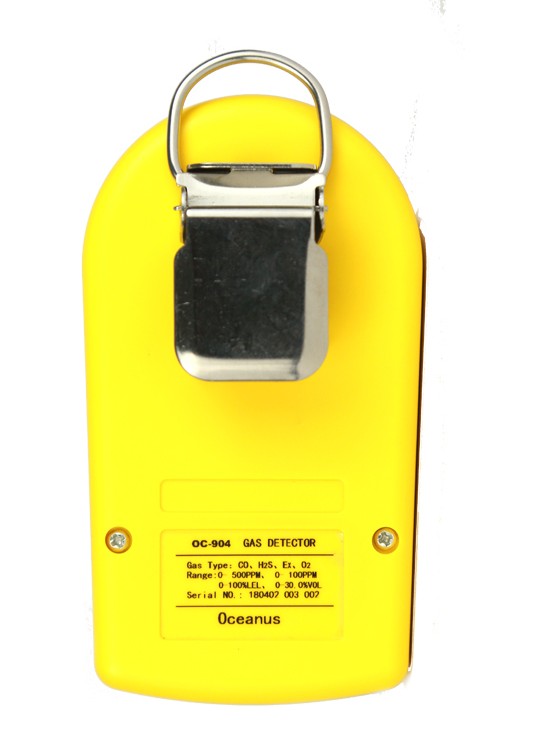

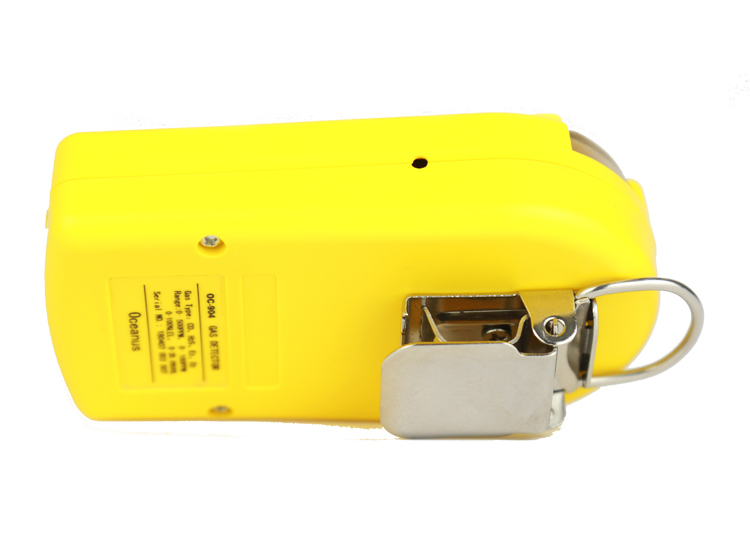

With a back clip, which is easy to carry when working.

Powered by rechargeable battery with big capacity which support a long working period.

oc-904 alarm

Technical Specification:


Gas type

Phosgene (COCl2)

Sensor Type

Electrochemical sensor

Sensor life

2~3 years

Measuring range


Display Information

Gas types, Concentration value, Concentration unit, Time, Battery status, Alarm status, etc.


Large screen LCD

Data Storage

With data storage function with memory capacity of 1000 alarm records.

Sampling mode

Diffusion sampling (Available for connection with external pump)

Operating Language

Chinese or English operating menu is able to be changed freely.

Alarm Mode

Audible-visual-vibration alarm, sound75dB

Power Supply

3.6V, 1600mAh rechargeable lithium battery, continuous working period can reach to 10 hours or above.

Explosion-proof Grade

Ex ib IIB T3

Protection Grade


Working Environment

Working Temperature: -2050

Working Humidity: 0-95%RH (non-condensing)

Body Material

ABS and PC


ABS carrying case




210g (with charger)


2 years


 oc-904 detection


The portable Phosgene (COCl2) gas detector used in the gas safety inspection and alarm for industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc., especially for the warehouse or the transportation of the fruits and vegetable,  where need to inspect the gas concentration of the COCl2 gas.

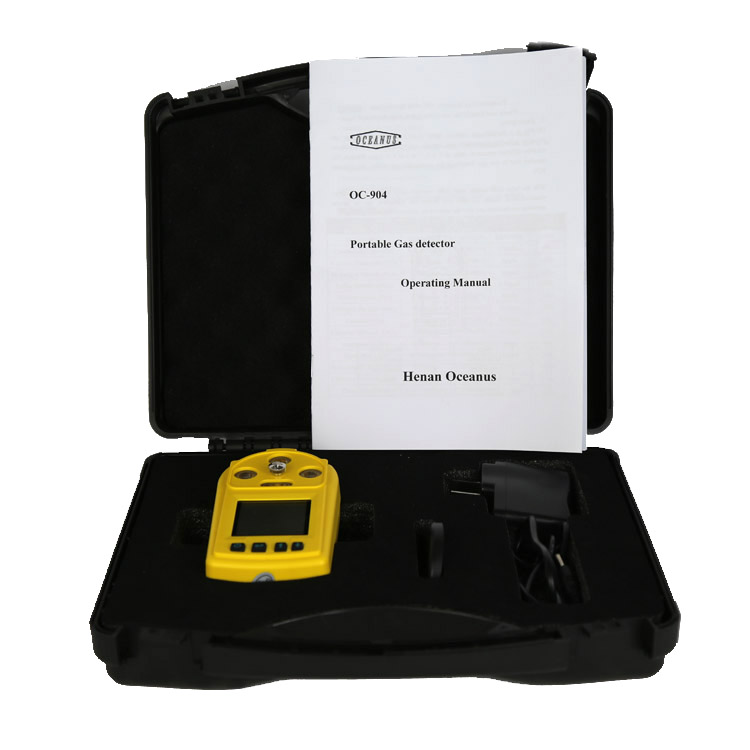

 oc-904 package
