Portable PH3 gas detector OC-905

2016-9-28      View:
  • Brand   Oceanus
  • Type   OC-905
  • Inquire Now
Introduction

OC-905 is portable PH3 gas detector can quickly and accurately measure PH3 gas concentration and display by LCD screen. when the PH3 gas concentration reaches or exceeds the preset alarm level, the gas detector will alarm.

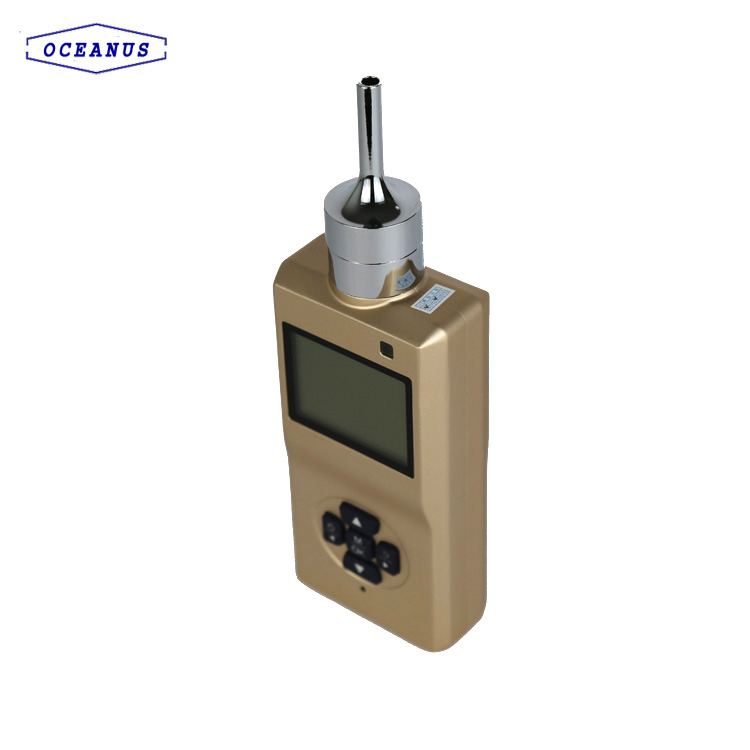

Portable PH3 gas detector   OC-905

OC-905 PH3 Gas Detector Feature

Used the original imported sensor, semiconductor technology of ultra low power 32 bit microprocessor, 24 bit ADC acquisition chip, so with the high accuracy.

2.5 inch dot matrix display interface.

All English operation menu and easy operation.

Unit data avaible for PPM, %VOL, mg/m3, LEL, PPB.

The circuit installed the four layers of wire, so well anti-interference.

Explosion proof grade is Exd ib ⅡC T4 Gb.

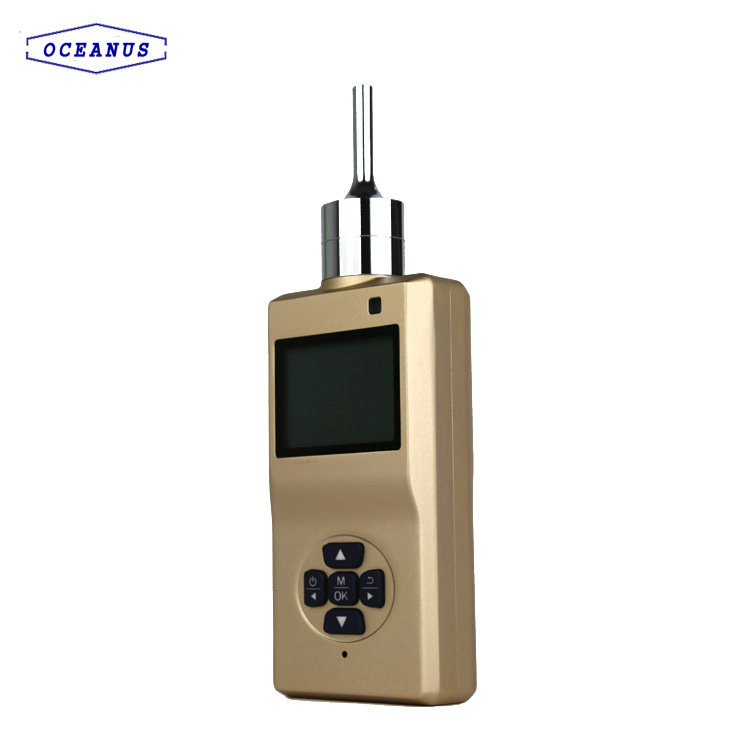

Portable PH3 gas alarm OC-905

OC-905 PH3 Gas Detector Specifications


Gas type

Phosphine (PH3)

Working principle

Electrochemical

Measure range

0-10ppm, 20ppm, 50ppm, 100ppm, 200ppm, 500ppm, 1000ppm or be customized.

Resolution

0.01ppm, .0.1ppm

Precision

3%FS

Sampling method

Pump-suction sampling

Data storage

About 100000 group of data capacity.

Response time

T9030s

Pre-heating time

60S

Repeatability

≤±1%

Display

LCD dot matrix display

Operating language

English

Concentration unit

ppmmg/m3, %vol, %LEL

Working temperature

-20℃~60

Working humidity

10%-95%RH(non-condensing)

Explosion-Proof grade

Exd ib CT4 Gb

Protection grade

IP66

Alarm mode

Audible, visual

Working pressure

86Kpa 106Kpa

Dimensions

135*65*35mm

Weight

0.5KG

Accessory

Box, instruction, USB charger , data line

Quality standard

GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010

Portable PH3 gas detector   OC-905

OC-905 PH3 Gas Detector Applications



Common applications include chemical industry, petroleum, gas station, metallurgy, oil, municipal, environment protection, agriculture, biology pharmaceuticals, power, lab research and other industry environment where need to inspect phosphine (PH3) gas concentration.

Portable PH3 gas monitor  OC-905



If any more questions about the OC-905 PH3 gas detector, welcome to contact with us.
