Portable Ammonia gas detector OC-905

2016-9-27      View:
  • Brand   Oceanus
  • Type   OC-905
  • Inquire Now
Introduction

OC-905 isportable NH3 gas detectorcan quickly and accurately measure NH3 gas concentration and display by LCD screen. when the NH3 gas concentration reaches or exceeds the preset alarm level, the gas detector will alarm.

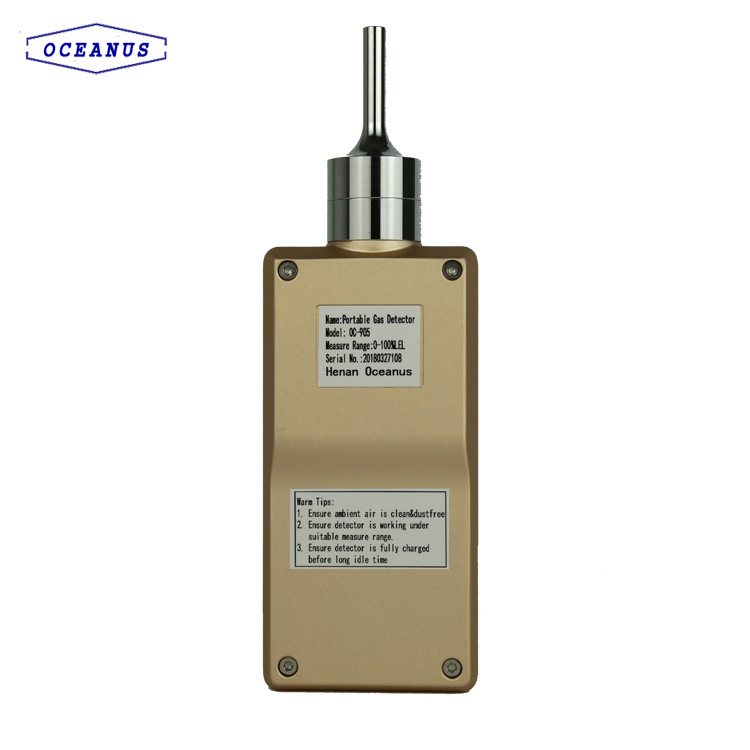

Portable Ammonia gas detector  OC-905


OC-905 NH3 Gas Detector Feature

Used the original imported sensor, semiconductor technology of ultra low power 32 bit microprocessor, 24 bit ADC acquisition chip, so with the high accuracy.

2.5 inch dot matrix display interface.

All English operation menu and easy operation.

Unit data avaible for PPM, %VOL, mg/m3, LEL, PPB.

The circuit installed the four layers of wire, so well anti-interference.

Explosion proof grade is Exd ib ⅡC T4 Gb.

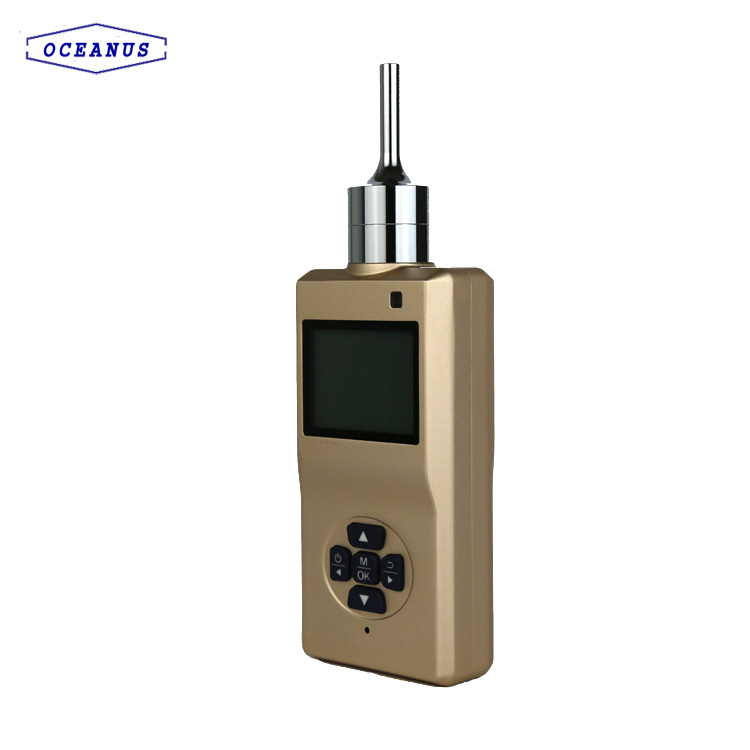

Portable Ammonia gas alarm OC-905

OC-905 NH3 Gas Detector Specifications

Gas type

Ammonia (NH3)

Working principle

Electrochemical

Measure range

0-10ppm, 20ppm, 50ppm, 100ppm, 200ppm, 500ppm, 1000ppm, 10000ppm or be customized.

Resolution

0.01ppm, .0.1ppm, 1ppm

Precision

3%FS

Sampling method

Pump-suction sampling

Data storage

About 100000 group of data capacity.

Response time

T9030s

Pre-heating time

60S

Repeatability

≤±1%

Display

LCD dot matrix display

Operating language

English

Concentration unit

ppmmg/m3, %vol, %LEL

Working temperature

-20℃~60

Working humidity

10%-95%RH(non-condensing)

Explosion-Proof grade

Exd ib CT4 Gb

Protection grade

IP66

Alarm mode

Audible, visual

Working pressure

86Kpa 106Kpa

Dimensions

135*65*35mm

Weight

0.5KG

Accessory

Box, instruction, USB charger , data line

Quality standard

GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010

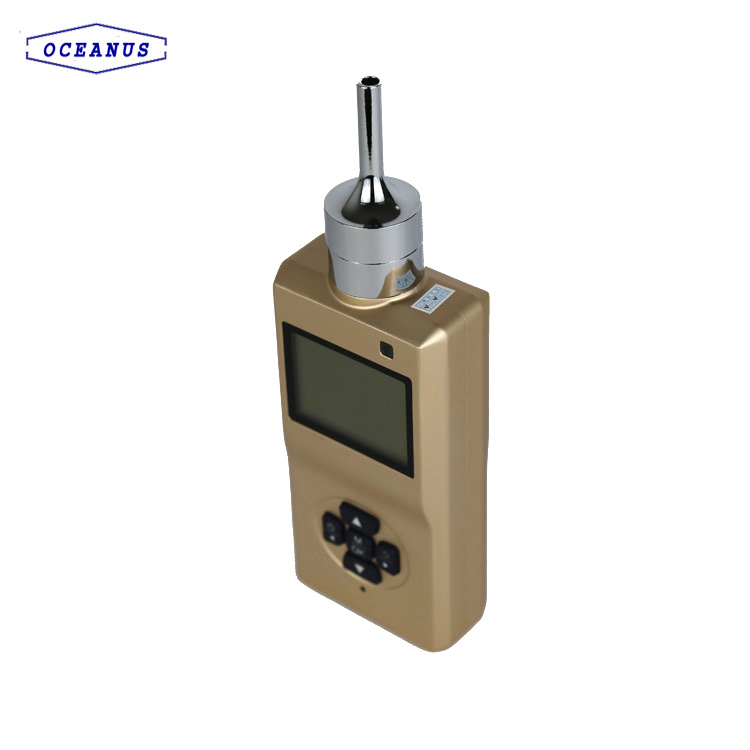

Portable Ammonia gas monitor OC-905

OC-905 NH3 Gas Detector Specifications

Common applications include chemical industry, petroleum, gas station, metallurgy, oil, municipal, environment protection, agriculture, biology pharmaceuticals, power, lab research and other industry environment where need to inspect ammonia (NH3) gas concentration.

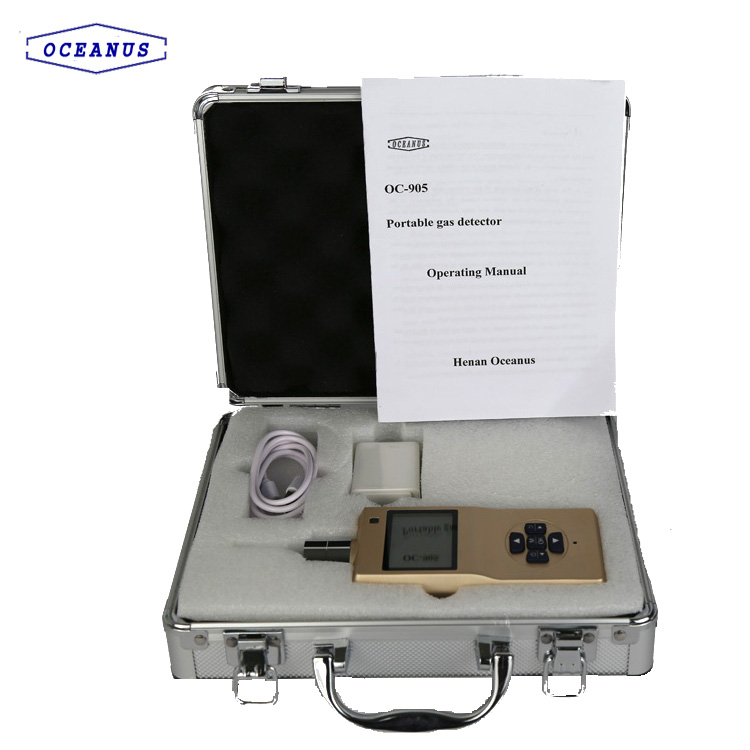

Portable Ammonia gas detector  OC-905


If any more questions about the OC-905 NH3 gas detector, welcome to contact with us.
