Portable Multi Gas Detector For Hydrogen Sulphide
- Brand Oceanus
- Type

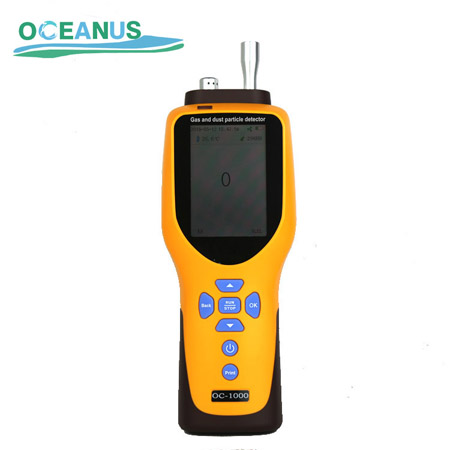

OC-1000 Portable multi gas detector for NH3, hydrogen sulphide and LEL
Description：
Portable Multi Gas Detector For NH3, H2S and LEL with inner pump,pump-suction sampling.It can detect 5 different gas at most,including combustible gas, toxic gas , O2, etc. It can also detect temperature, humidity and dust. With real-time data analysis, historical record storage, zero point calibration, alarm level setting and other functions.
FAQ:
1.Why choose us?
Price advantage, Product quality, Long sensor life, free calibration service, etc.
Original imported sensor with high accurately.
Professional technical service team, 7*24 hours response anytime.
Price advantage of after-sales accessories and consumabl.
2.What is the payment method?
Our company supports T/T, Western Union, Alibaba payment.
Technical Parameter:
|
Gas type |
Combustible gas, Toxic gas, Oxygen, Carbon Dioxide, TVOC, etc. |
||
|
Working principle |
Catalytic combustion sensor for Combustible gas; Electrochemical sensor for Toxic gas and Oxygen gas; NDIR sensor for CO2, CH4, SF6; PID sensor for TVOC gas. |
||
|
Particle size |
Optional particle sensor of the channels: 0.5um, 1.0um, 2.5um, 10um |
||
|
Particle testing mode |
Quantity testing(PC/L) and Quality testing(ug/m3) |
||
|
Sampling mode |
Pump-suction sampling |
||
|
Measuring range |
According to different gas type |
||
|
Resolution |
According to different gas type |
||
|
Precision |
±3%F.S (or customized) |
||
|
Dust Temp & Humidity testing range |
Temperature: -40~120℃; Humidity: 0~100% RH |
||
|
Data storage function |
With the capacity of the 100000 group of measuring data, by the software could be transmitted to the computer. |
||
|
Printer |
Optional mini-printer. |
||
|
Response time |
≤20s(T90) |
Recovery time |
≤20s |
|
Repeatability |
≤±1% |
Linearity |
≤±1% |
|
Zero drift |
≤±1%(F.S/year) |
Concentration unit |
ppm, %vol, %lel, mg/m3 |
|
Display |
LCD display the Date, time, Temp& humidity, Gas concentration data, unit, status for the pump, alarm and battery. |
||
|
Operation language |
Chinese/English |
Alarm mode |
Audible, visual, vibration |
|
Gas Working temperature |
-30~60℃ |
Working humidity |
0-95%RH(non-condensing) |
|
Working pressure |
70Kpa ~ 200Kpa |
Explosion-proof grade |
Ex ia IIC T4 Ga |
|
Protection grade |
IP65 |
Shell material |
ABS+PC |
|
Dimensions |
220*88*55mm |
Weight |
0.5KG |
|
Standard accessory |
Particle filter, box, instruction, USB charger , data line, calibration cap. |
||
