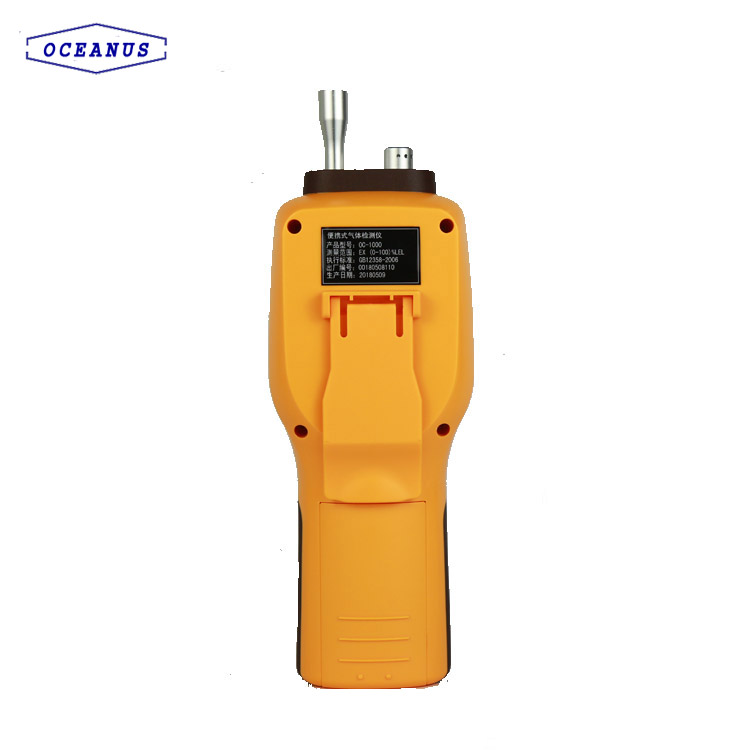

Multi pump-suction gas detector and particle counter OC-1000
- Brand Oceanus
- Type OC-1000
OC-1000 is a multi gas detector, you can customize gas type. We are specialized in gas detector, including portable type and fixed type, which can detect combustible gas, toxic gas and other special gas. As a manufacturer, we are able to promise the quality of products and provide after-sales service.
Semiconductor technology of ultra low power 32 bit microprocessor, 24 bit ADC acquisition chip, so with the high accuracy.
3.5 inch IPS industrial grade color screen.
Support Chinese or English operation menu
Detecting data avaible for PPM, %VOL, mg/m3.
For 1~5 gas detecting, gas type all be customized, supporting the PM2.5 particle counter sensor, and humidity sensor, etc.
Internal sampling pump for suction, the suction strength is adjustable in different level.
Explosion proof grade is ExiaⅡCT4.
Inspect the gas concentration and alarm when it reaches preset alarm level.
With auto-test and data recover function.
One-key operation to restore to factory default setting.
Temperature and pressure compensation.
Adjustable two-stage audible-visual alarm threshold value.
Powered by rechargeable lithium battery with big capacity.
Working under the micro negative pressure is avaible.
Overload protection, over charge protection, anti static interference, anti magnetic interference, etc.
OC-1000 Gas Detector Applications
Common applications include chemical industry, petroleum, gas station, metallurgy, agriculture, biology pharmaceuticals, power, lab research and other industry environment where need to inspect combustible or toxic gas concentration.
OC-1000 Gas Detector Specifications
|
Gas type |
Combustible gas, oxygen, toxic gas |
||
|
Working principle |
Catalytic combustion for combustible gas; Electrochemical for toxic gas and oxygen. |
||
|
Particle |
Optional the PM2.5 laser particle sensor |
||
|
Measure range |
Normal range or be customized. |
||
|
Resolution |
Depended on the gas types |
||
|
Precision |
3%FS |
||
|
Data storage |
About 100000 group of data capacity. |
||
|
Printing |
Optional printner function |
||
|
Response time |
≤20S/10S |
Recovery time |
≤20S |
|
Repeatability |
≤±1% |
Linearity |
≤±1% |
|
Zero drift |
≤±1%（F.S/year） |
Display |
LCD dot matrix display |
|
Operating language |
Chinese or English |
Concentration unit |
ppm or mg/m3 |
|
Working temperature |
-40℃～120℃ |
Working humidity |
0-95%RH(non-condensing) |
|
Explosion-Proof grade |
ExiaⅡCT4 |
Protection grade |
IP66 |
|
Alarm mode |
Audible, visual, vibration |
Working pressure |
-30Kpa ～ 100Kpa |
|
Dimensions |
220*88*55mm |
Weight |
0.5KG |
|
Accessory |

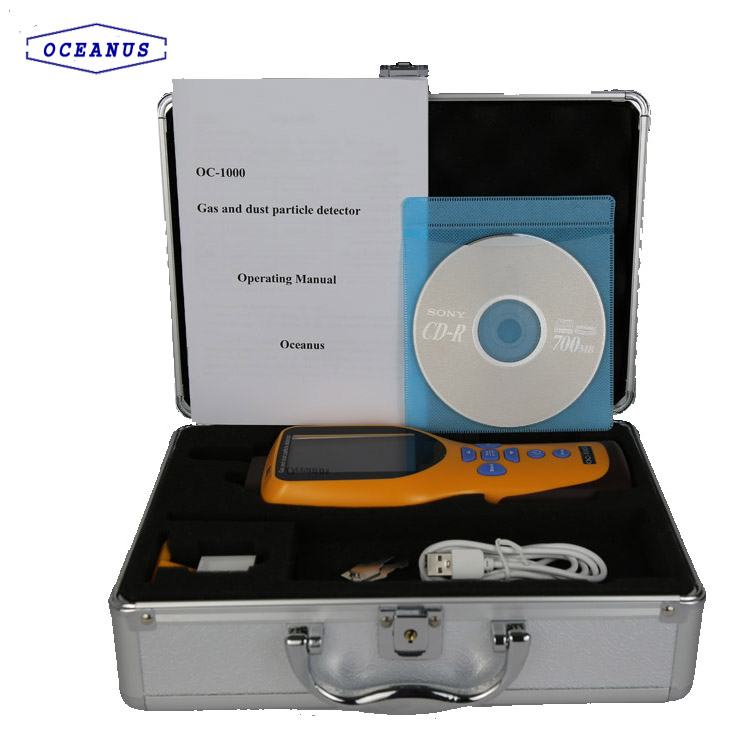

Particle filter, box, instruction, USB charger , data line, calibration cap. |
||
Target Gas List
|
Gas |
Detecting Range |
Resolution |
Sensor Type |
|
O3 |
0-10PPM |
0.01PPM |
Electrochemical sensor |
|
CO |
0-1000 PPM |
1PPM |
Electrochemical sensor |
|
NO2 |
0-20PPM |
0.01PPM |
Electrochemical sensor |
|
SO2 |
0-20 PPM |
0.01PPM |
Electrochemical sensor |
If any more questions about the OC-1000 multi gas detector, welcome to contact with us.
