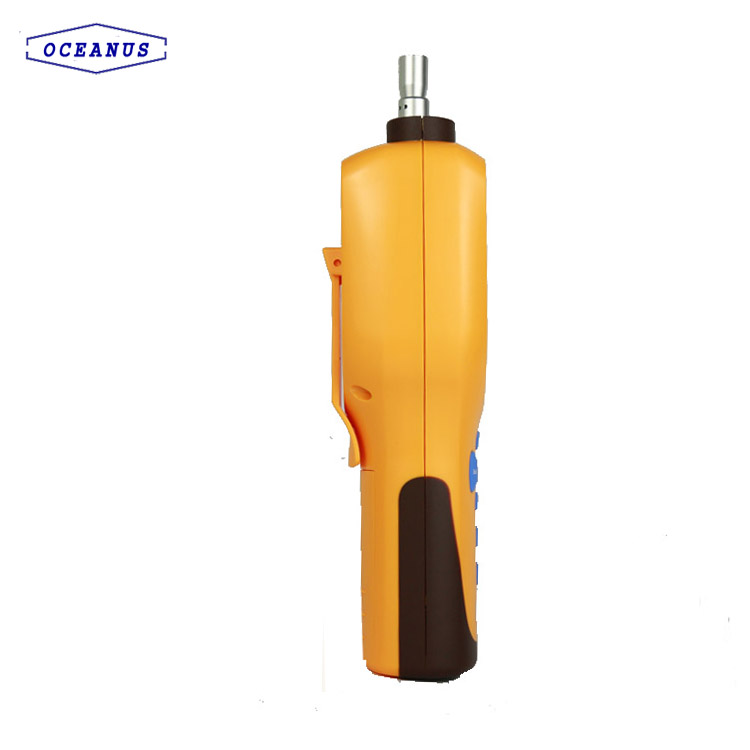

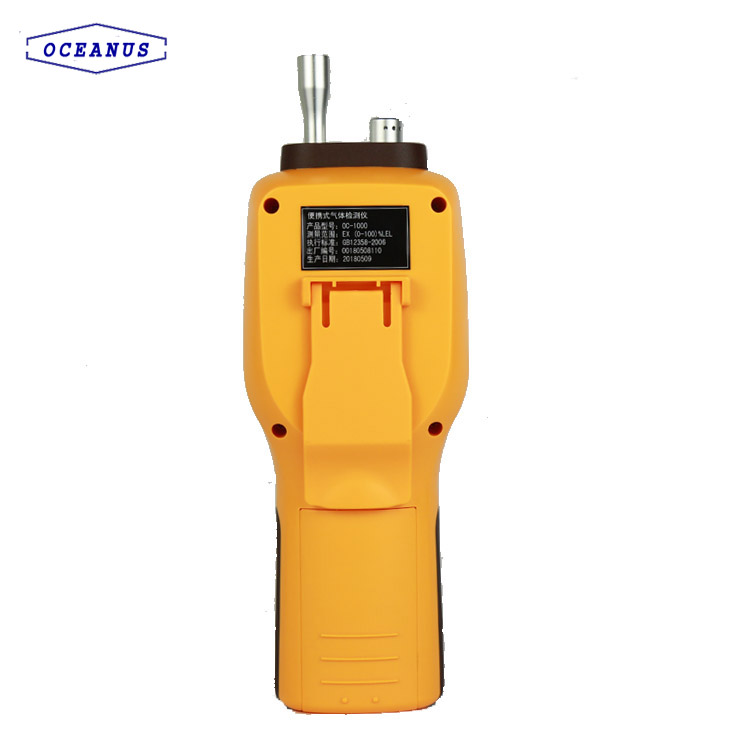

Multi pump-suction gas detector (CO+O3+NO2+SO2) OC-1000

2016-10-19      View:
  • Brand   Oceanus
  • Type   OC-1000
  • Inquire Now
Introduction


OC-1000 Gas Dtector Feature

Semiconductor technology of ultra low power 32 bit microprocessor, 24 bit ADC acquisition chip, so with the high accuracy.

3.5 inch IPS industrial grade color screen.

Support Chinese or English operation menu.

Detecting data avaible for PPM, %VOL, mg/m3.

For 1~5 gas detecting, gas type all be customized, supporting the PM2.5 particle counter sensor, and humidity sensor, etc.

Internal sampling pump for suction, the suction strength is adjustable in different level.

Explosion proof grade is ExiaCT4.

Multi pump-suction gas detector (CO+O3+NO2+SO2) OC-1000

OC-1000 Gas Dtector Function


Inspect the gas concentration and alarm when it reaches preset alarm level.

With auto-test and data recover function.

One-key operation to restore to factory default setting.

Temperature and pressure compensation.

Adjustable two-stage audible-visual alarm threshold value.

Powered by rechargeable lithium battery with big capacity.

Working under the micro negative pressure is avaible.

Overload protection, over charge protection, anti static interference, anti magnetic interference, etc.

Multi pump-suction gas alarm(CO+O3+NO2+SO2) OC-1000

OC-1000 Gas Dtector Applications

Common applications include chemical industry, petroleum, gas station, metallurgy, agriculture, biology pharmaceuticals, power, lab research and other industry environment where need to inspect combustible or toxic gas concentration.

Multi pump-suction gas monitor (CO+O3+NO2+SO2) OC-1000

OC-1000 Gas Dtector Specifications

Gas type

Combustible gas, oxygen, toxic gas

Working principle

Catalytic combustion for combustible gas;

Electrochemical for toxic gas and oxygen.

Particle

Optional the PM2.5 laser particle sensor

Measure range

Normal range or be customized.

Resolution

Depended on the gas types

Precision

3%FS

Data storage

About 100000 group of data capacity.

Printing

Optional printner function

Response time

20S/10S

Recovery time

20S

Repeatability

≤±1%

Linearity

≤±1%

Zero drift

≤±1%F.S/year

Display

LCD dot matrix display

Operating language

Chinese or English

Concentration unit

ppm or mg/m3

Working temperature

-40℃~120

Working humidity

0-95%RH(non-condensing)

Explosion-Proof grade

ExiaCT4

Protection grade

IP66

Alarm mode

Audible, visual, vibration

Working pressure

-30Kpa 100Kpa

Dimensions

220*88*55mm

Weight

0.5KG

Accessory

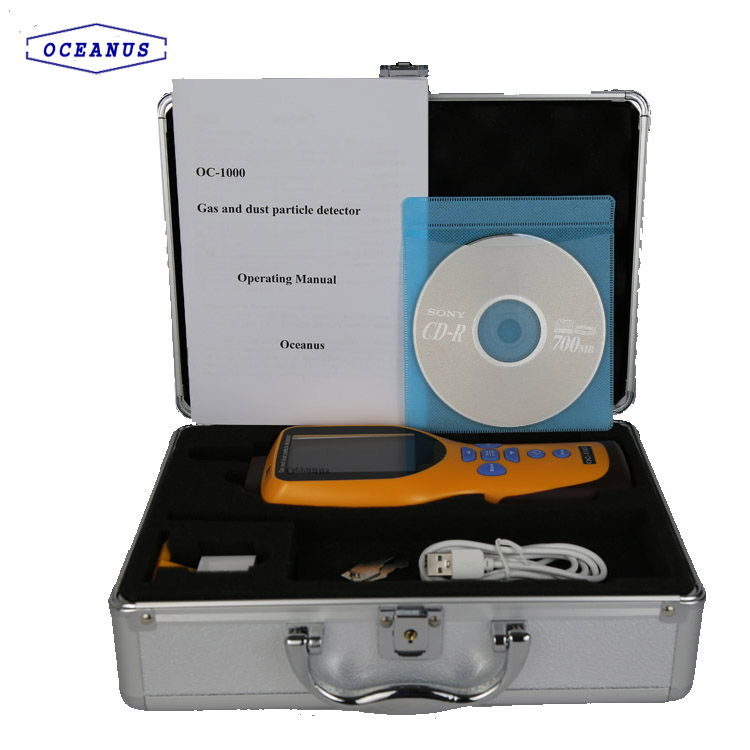

Particle filter, box, instruction, USB charger , data line, calibration cap.



If any more questions about the OC-1000 gas detector, welcome to contact with us.
