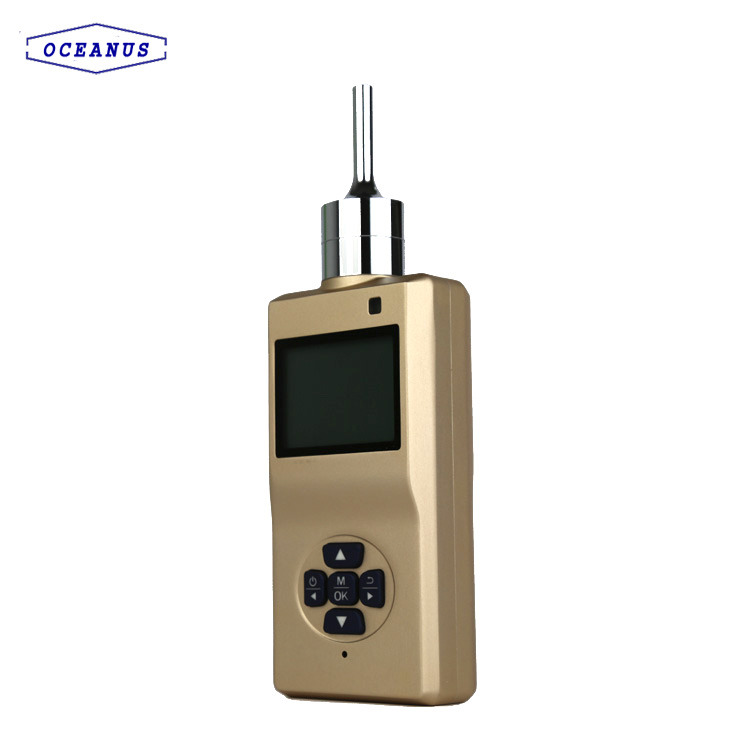

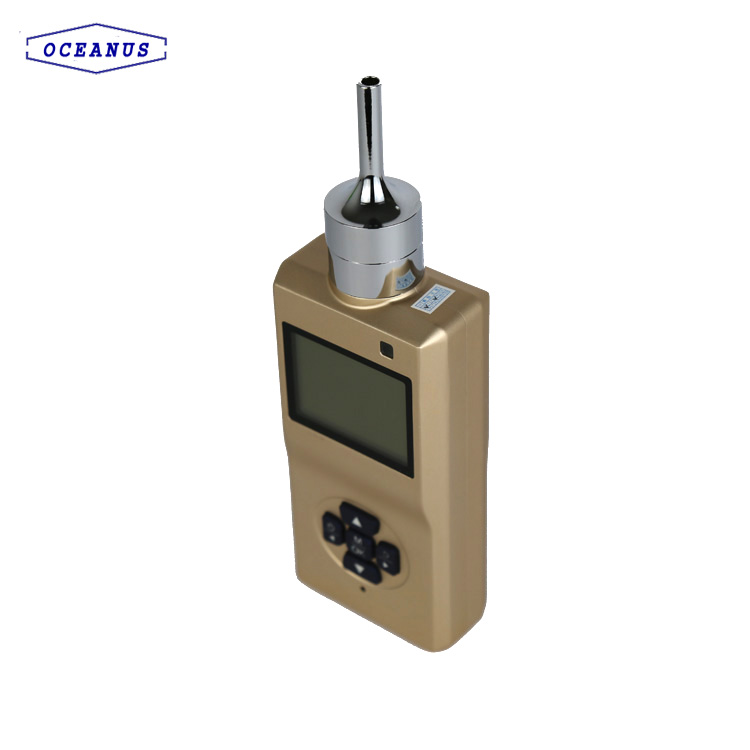

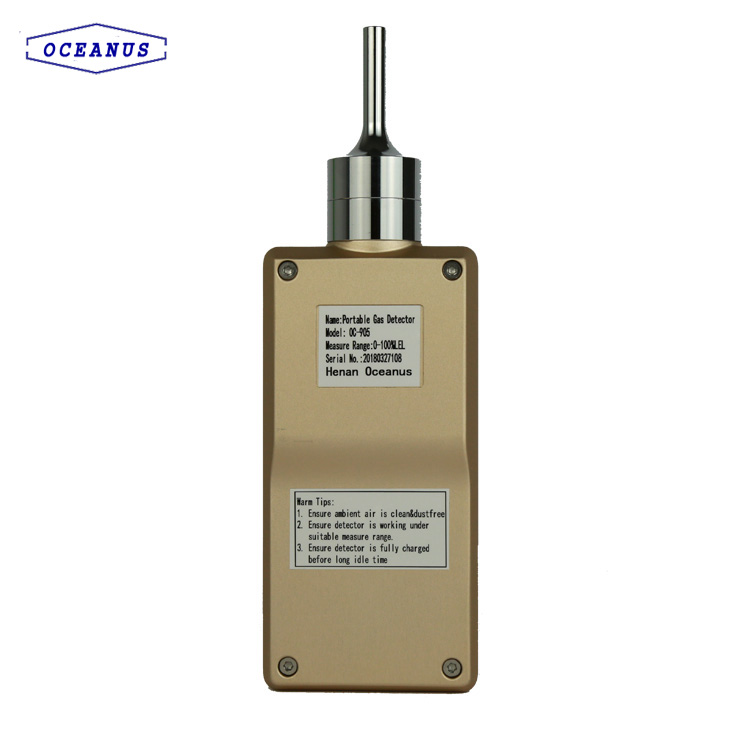

Portable pump-suction CO2 gas detector 0C-905
- Brand Oceanus
- Type OC-905
OC-905 is portable CO2 gas detector can quickly and accurately measure CO2 gas concentration. When the CO2 gas concentration reaches or exceeds the preset alarm level, the gas detector will alarm.
OC-905 CO2 GAS DETECTOR Feature
Used the original imported sensor, semiconductor technology of ultra low power 32 bit microprocessor, 24 bit ADC acquisition chip, so with the high accuracy.
2.5 inch dot matrix display interface.
All English operation menu and easy operation.
Unit data avaible for PPM, %VOL, mg/m3, LEL, PPB.
The circuit installed the four layers of wire, so well anti-interference.
Explosion proof grade is Exd ib ⅡC T4 Gb.
OC-905 CO2 GAS DETECTOR Function
Inspect the gas concentration and alarm when it reaches preset alarm level.
High accuracy, good stability and good repeatability, long working life.
One-key operation to restore to factory default setting.
Adjustable two-stage audible-visual alarm threshold value.
Powered by rechargeable lithium battery with big capacity.
The built-in pump could be controlled.
OC-905 CO2 GAS DETECTOR Applications
Common applications include chemical industry, petroleum, gas station, metallurgy, oil, municipal, environment protection, agriculture, biology pharmaceuticals, power, lab research and other industry environment where need to inspect CO2 gas concentration.
OC-905 CO2 GAS DETECTOR Specifications
|
Gas type |
Carbon dioxide(CO2) |
||
|
Working principle |
Infrared sensor |
||
|
Measure range |
0~500ppm, 0~1000ppm, 0~2000ppm, 0~5000ppm, 0~10000ppm, 0~30000ppm, 0~50000ppm, 0~3%vol, 0~5%vol, 0~10%vol, or customized |
||
|
Resolution |
0.1ppm(0~500ppm), 1ppm(0~50000ppm), 0.01%vol(0~100%vol) |
||
|
Precision |
≤3%FS |
||
|
Sampling method |
Pump-suction sampling |
||
|
Data storage |
About 100000 group of data capacity.(Optional) |
||
|
Response time |
T90≤30s |
Pre-heating time |
≤60S |
|
Repeatability |
≤±1% |
Display |
LCD dot matrix display |
|
Operating language |
English |
Concentration unit |
ppm，mg/m3, %vol, %LEL |
|
Working temperature |
-20℃～60℃ |
Working humidity |
10%-95%RH(non-condensing) |
|
Explosion-Proof grade |
Exd ib ⅡCT4 Gb |
Protection grade |
IP66 |
|
Alarm mode |
Audible, visual |
Working pressure |
86Kpa ～ 106Kpa |
|
Dimensions |
135*65*35mm |
Weight |
0.5KG |
|
Accessory |

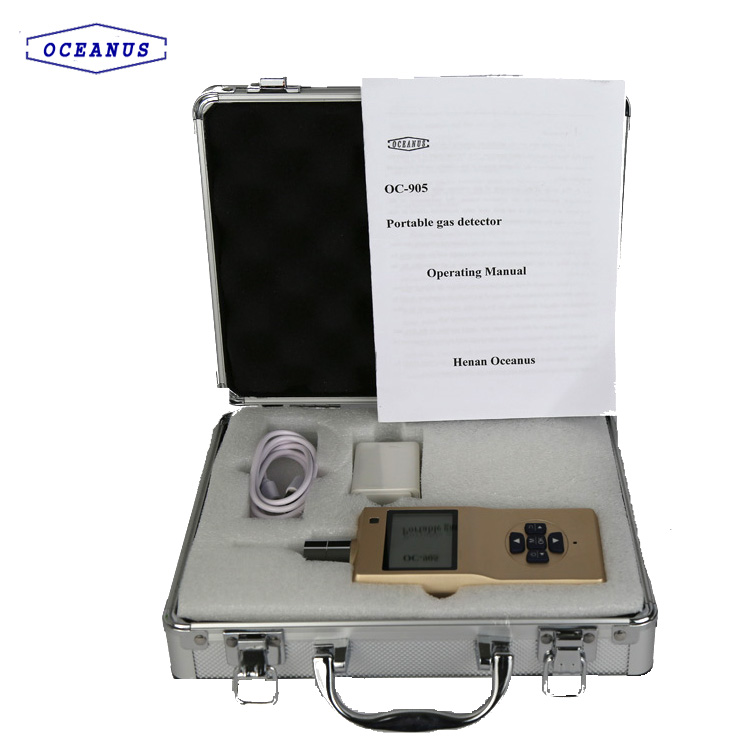

Box, instruction, USB charger , data line |
||
|
Quality standard |
GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010 |
||
If any more questions about the OC-905 CO2 gas detector, welcome to contact with us.
