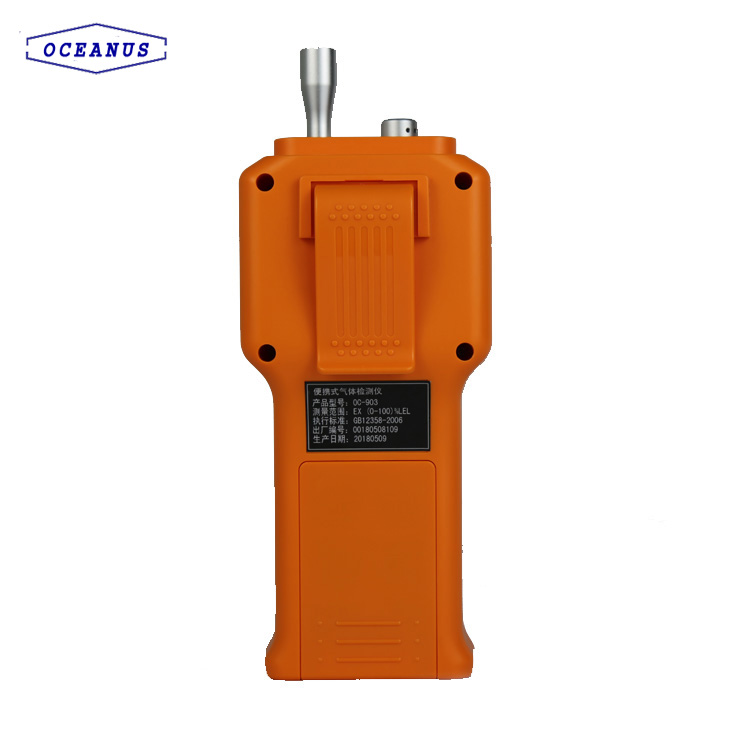

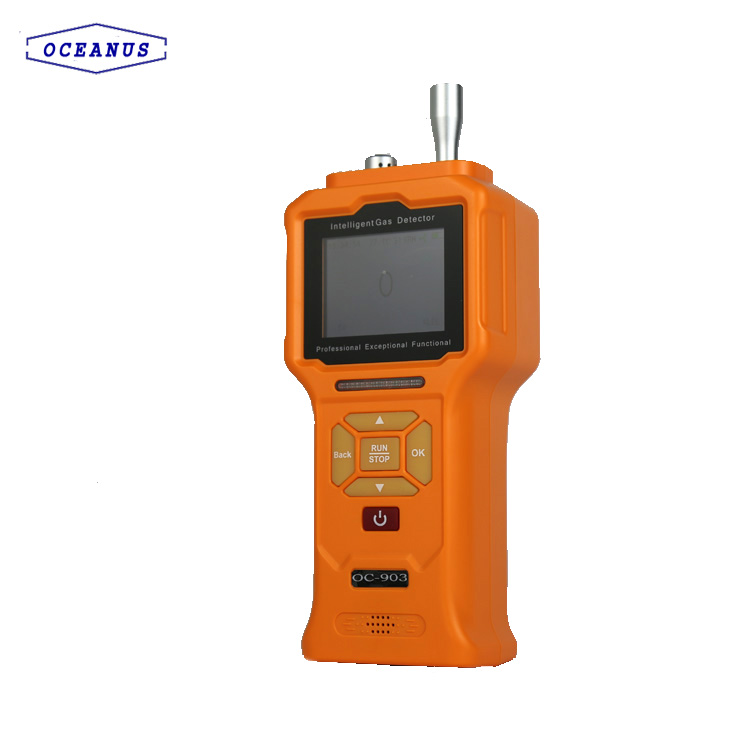

Portable pump-suction Carbon Dioxide (CO2) gas detector OC-903
- Brand Oceanus
- Type OC-903
OC-903 is portable CO2 gas detector can quickly and accurately measure CO2 gas concentration and display by LCD screen. when the CO2 gas concentration reaches or exceeds the preset alarm level, the gas detector will alarm.
OC-903 CO2 Gas detector Feature
Semiconductor technology of ultra low power 32 bit microprocessor, 24 bit ADC acquisition chip, so with the high accuracy.
2.4 inch IPS industrial grade color screen.
Support Chinese or English operation menu.
Detecting data avaible for PPM, %VOL, mg/m3.
For 1~4 gas detecting, single gas and some composite gas.
Internal sampling pump for suction, the suction strength is adjustable in different level.
Explosion proof grade is ExiaⅡCT4.
OC-903 CO2 Gas detector Function
Inspect the gas concentration and alarm when it reaches preset alarm level.
With auto-test and data recover function.
One-key operation to restore to factory default setting.
Temperature and pressure compensation.
Adjustable two-stage audible-visual alarm threshold value.
Powered by rechargeable lithium battery with big capacity.
Working under the micro negative pressure is avaible.
Overload protection, over charge protection, anti static interference, anti magnetic interference, etc.
OC-903 CO2 Gas detector Applications
Common applications include chemical industry, petroleum, gas station, metallurgy, agriculture, biology pharmaceuticals, power, lab research and other industry environment where need to inspect CO2 gas concentration.
OC-903 CO2 Gas detector Specifications
|
Gas type |
Carbon dioxide (CO2) |
||
|
Working principle |
Infrared sensor |
||
|
Measure range |
0~5000ppm, 0~30000ppm, 0~50000ppm, 0~20%vol, 0~50%vol, 0~100%vol,or customized |
||
|
Resolution |
1ppm or 0.01%vol |
||
|
Precision |
3%FS, 2%FS, 1%FS selectable |
||
|
Sampling method |
Pump-suction, flow rate of 100-1000mL L/min. (Adjustable) |
||
|
Data storage |
About 100000 group of data capacity. |
||
|
Response time |
≤20S/10S |
Recovery time |
≤20S |
|
Repeatability |
≤±1% |
Linearity |
≤±1% |
|
Zero drift |
≤±1%（F.S/year） |
Display |
LCD dot matrix display |
|
Operating language |
Chinese or English |
Concentration unit |
ppm or mg/m3 |
|
Working temperature |
-30℃～60℃ |
Working humidity |
0-95%RH(non-condensing) |
|
Explosion-Proof grade |
ExiaⅡCT4 |
Protection grade |
IP65 |
|
Alarm mode |
Audible, visual, vibration |
Working pressure |
-30Kpa ～ 100Kpa |
|
Dimensions |
180*80*60mm |
Weight |
0.5KG |
|
Accessory |

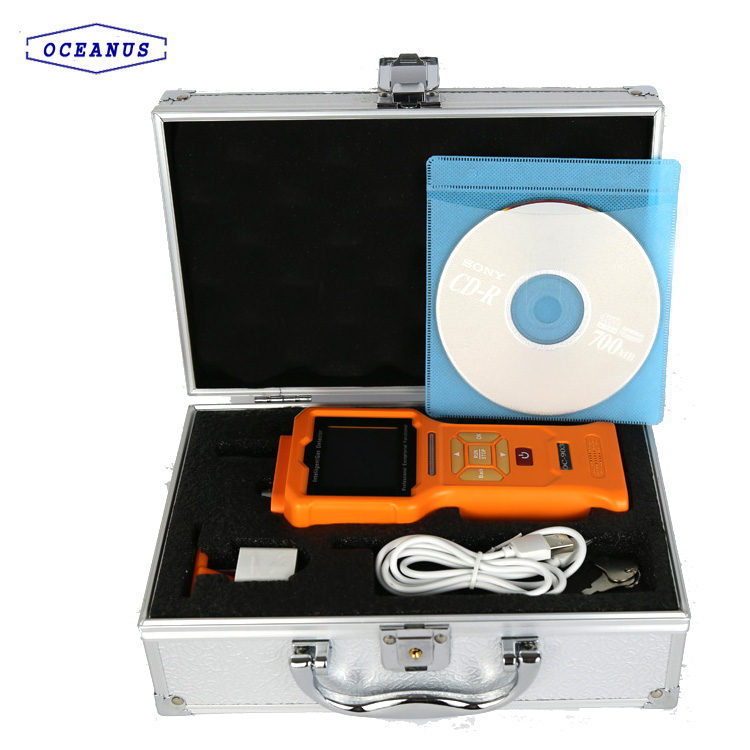

Box, instruction, USB charger , data line, calibration cap. |
||
If any more questions about the CO2 gas detector, welcome to contact with us.
