OC-F08 fixed CO2 gas detector

2016-10-13      View:
  • Brand   Oceanus
  • Type   OC-F08
  • Inquire Now
Introduction

OC-F08 Gas Detector Description:

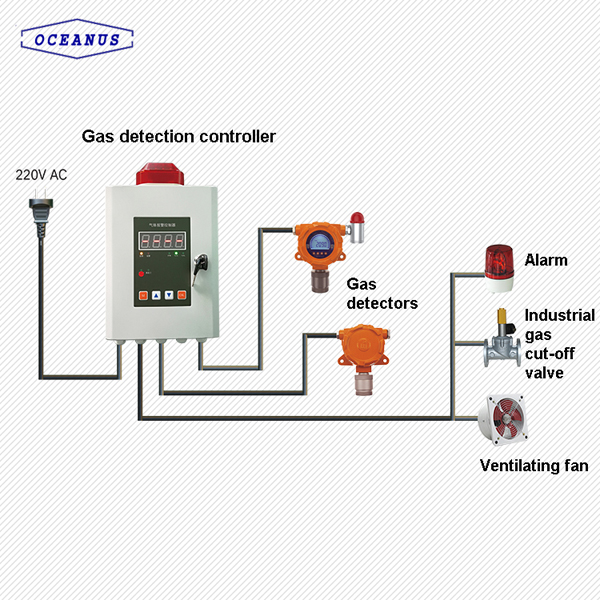

OC-F08 series online Carbon dioxide CO2 gas detector use the imported Infrared sensor and microcontroller technology, so with the advantages of high precision, good repeatability, stable singal, respond quickly, ect. Possible connected with many controller system, such as PLC, DCS, computer and other, with the function of remote monitor and alarm, data logger and analysis.

Common applications is gas safety inspection and alarm for industrial scene, such as Petrochemical industry, Industrial production, Smelting and Forging, Electric power, Coal, Tunnel engineer, Enviromental monitor, Wastewater treatment, Biological Pharmaceuticals, Enviromental protection, Greenhouse cultivation, Warehousing, Logistics, Agricultural production, Gas & Fire, Building construction, Municipal enterprises, School lab and research center, etc.

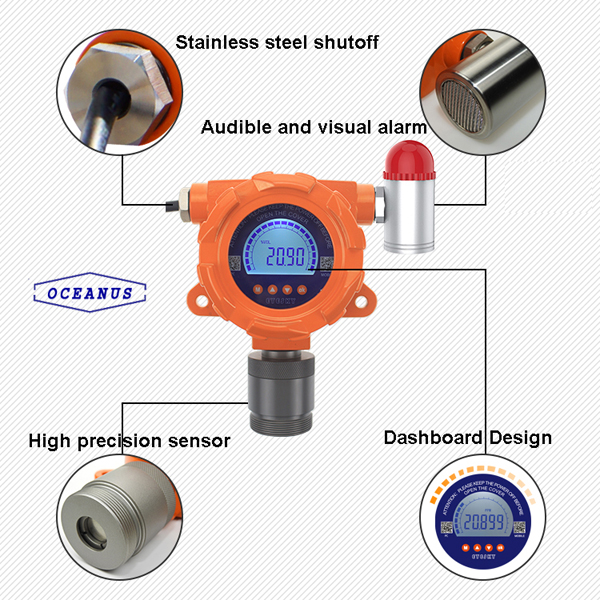

OC-F08 fixed CO2 gas detector
OC-F08 Gas Detector Features:
4-20mA standard analog signal and RS485 digital signal output, relay output, data restore, data logger(optional);
LED screen displaying the gas concentration, gas type, unit, instrument status etc.
Independent air chamber, if replace the sensor no need to online calibration, automatic identification of key parameters of the sensor
Digital automatic tracking and compensation of temperature in the whole range to ensure the measurement accuracy.
Software automatic calibration function.

Display the gas concentration in ppm, %vol and mg/m3 is selectable.

Infrared remote controller operation (remote controller is optional part);

Optional function of detecting the temperature/humidity.

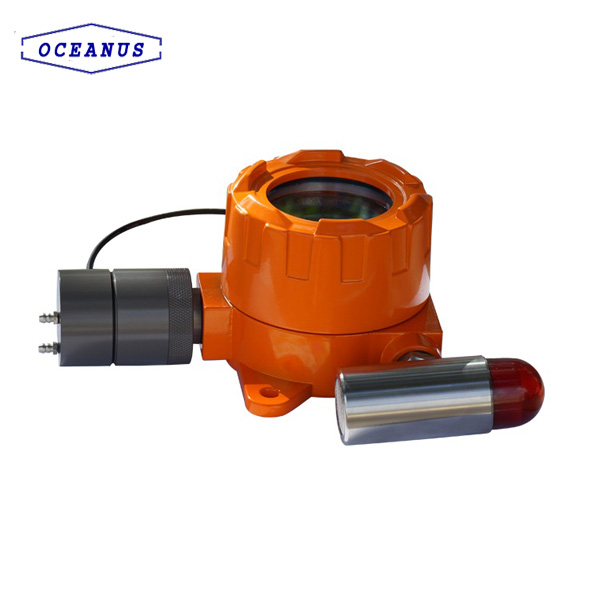

 OC-F08 fixed CO2 gas alarm

OC-F08 Gas Detector Parameter:

Applicable Gas

Carbon dioxide(CO2)

Detecting Range

0~500ppm, 0~1000ppm, 0~5000ppm, 0~10000ppm, 0~50000ppm, 0~20%vol, 0~50%vol, 0~100%vol, or customized.

Resoultion

1ppm or 0.01%vol

Sampling

Diffusion sampling, Pump-sunction sampling, or Circulation type

Accuracy

According to different sensor(≤±3%F.S , ≤±2%F.S or ≤±1%F.S )

Repeatability

≤±1%

Zero drift

≤±1%(F.S/year)

Sensor Type

Infrared sensor

Sensor Life

3~5 years

Response Time (T90)

20s

Alarming mode

Audible-visual alarm, External alarm, Remote control alarm, APP notification, etc.

Alarming setting

Standard two-level alarm, optional three-stage alarm

Operating Environment

Temperature: -20~50

Humidity: 95%RH (non-condensing); if >90%RH, can add the filter

Pressure: 86kPa~106kPa

Working Voltage

24V DC(16~30VDC)

Output Signals

Three-wire system 4~20mA standard signals output; longest transmit distance is 1000m;

Four-wire system RS485 signal output; longest transmit distance is 1800m;

200~1000HZsignal output(optional);


Two-level passive contact output:220VAC 3A, 24VDC 3A

Transmission mode

Cable transmission, TCP/IP, GPRS, Wireless, Video transmission

Receiving equipment

Computer, gas detector controller, PLC, DCS, Mobile phoneTablet PC

Installation Means

Wall mounted, Pipe type(Thread:M40*1.5 )

Material of Body

Cast aluminum

Explosion-proof Index

Ex d IIC T6 Gb

Protection Grade

IP65

Electrical Interface

3/4NPT(Female Screw)1/2NPT(Female Screw)

Transmit Distance

1800m

Dimension

200 mm×160 mm×80 mmL×W×H

Weight

About 1.5Kg



OC-F08 fixed CO2 gas monitor


If any more questions about the OC-F08 CO2 gas detector, welcome to contact with us.
