It receives RS485 signal input and can connect up to 32 units of OC-F08 fixed gas detectors, supporting a maximum communication distance of 2000 meters. Real-time gas concentration of all monitoring channels is displayed on the touch screen. Once gas concentration exceeds the preset threshold, audible and visual alarms will trigger immediately. 4 relay outputs support linkage of exhaust fans, solenoid valves and other peripheral equipment to prevent gas poisoning, explosion and fire hazards.

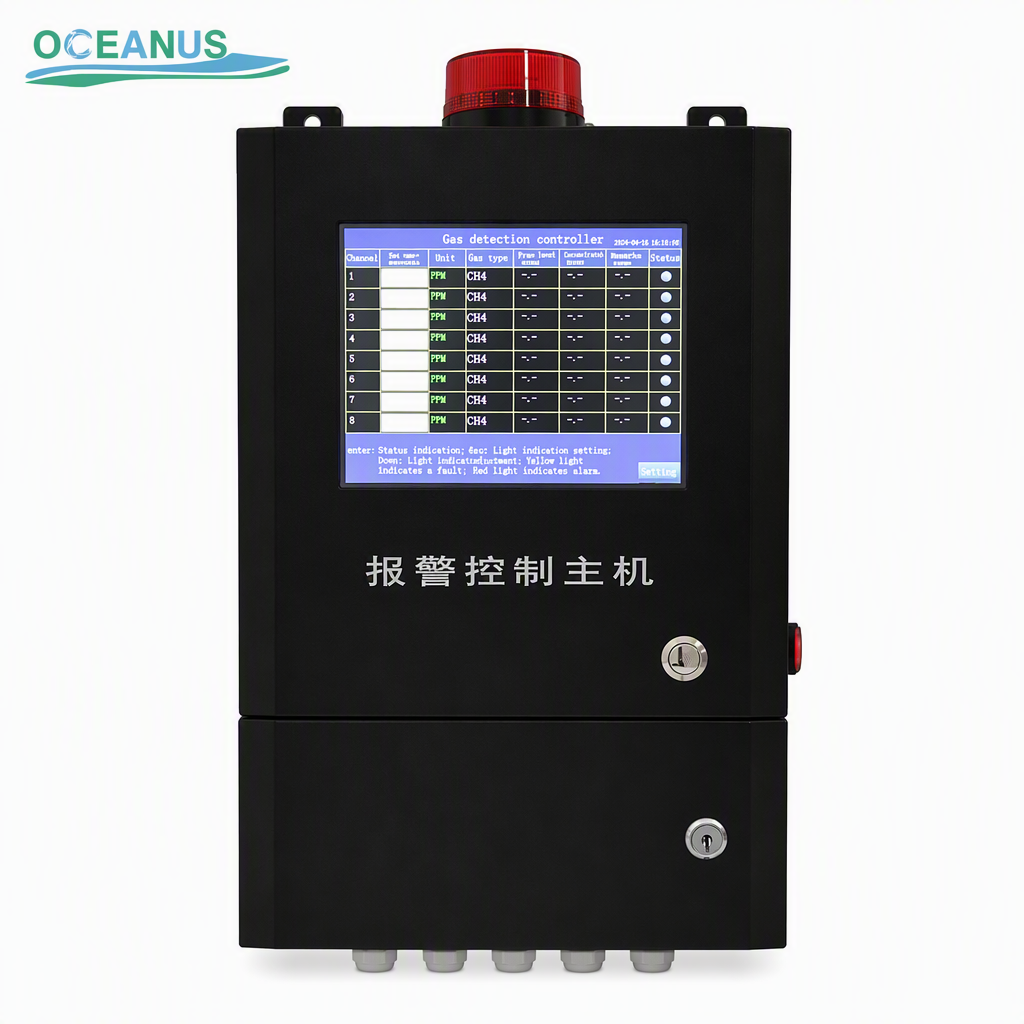

OC-8000 gas detection controller with new design of Touch screen, simple operation. It could connect the OC-F08 gas detector to make up as the industrial gas detection system. It will display the all gas concentration for each gas detector, when the gas concentration level up to the preset data, the controller will alarm with acoustic and light signal. Synchronously, the actuator will begin to drive the exhaust or the cut off valve and other equipment, in order to prevent the poisoning accident, explosion or fire. The OC-8000 Gas detection controller could guarantee the security of the industrial working place.
Core Features
New upgraded 8-inch TFT LCD touch screen design, intuitive interface & simple operation
RS485 signal input, support up to 32pcs OC-F08 gas detectors, 2000m long-distance transmission
Real-time centralized display of gas concentration for all monitoring channels
4 relay outputs (NO/NC optional), interlock exhaust fan, solenoid valve and alarm devices
Audible & visual dual alarm for gas over-limit
Wall-mounted installation, IP54 protection grade
Wide working temperature: -10℃ ~ +50℃
Support detection of LEL, CH4, CO, H2S, O2, NH3, VOCs and more gas types
Technical Parameter:
| Item | Description |
| Product name | Gas detection controller |
| Display | 8 inch TFT LCD touch screen |
| Power supply | AC220V±15%, 50Hz±1% |
| Consumption | ≤10W(according to different channels) |
| Output voltage | DC24V±15% |
| Input signal | RS-485 |
| Relay output | 4 relay output with optional NO or NC |
| Relay contact capacity | 5A, 30VDC or 5A, 220VAC |
| Alarm mode | Audible, visual |
| Installation mode | Wall-mounted |
| Suitable gas detector | OC-F08 Fixed gas detector with RS485 signal output |
| Gas detector quantity | ≤64pc |
| Communication distance | ≤2000m |
| Working temperature | -10℃~+50℃ |
| Working humidity | 10~95%RH（Non-condensation） |
| Size | 400mm*280mm*80mm |
| Weight | About 3.6kg |
| Protection grade | IP54 |
| Quality standard | GB 16808-2008 GB 15326-1994 |
| Certificate | CE, RoHS |
Applications:
OC-8000 touch screen gas detection controller is widely used for real-time safety monitoring of toxic gas, flammable gas and VOCs gas leakage in various industrial environments. Ideal for places requiring continuous gas detection and automatic linkage control.
Chemical Industry & Petrochemical Plants
VOCs waste gas treatment workshops and environmental protection stations
Painting, spraying and coating production lines
Sewage treatment plants and landfill sites
Pharmaceutical factories and disinfection workshops
Oil depots, gas stations and LPG storage areas
Metallurgy, mining and industrial manufacturing workshops
Food processing factories and sterilization workshops
Industrial parks with strict gas safety requirements
Our After-sales service:
1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc.
2. Free calibration service and provide calibration methods.
3. One year warranty and lifetime warranty
