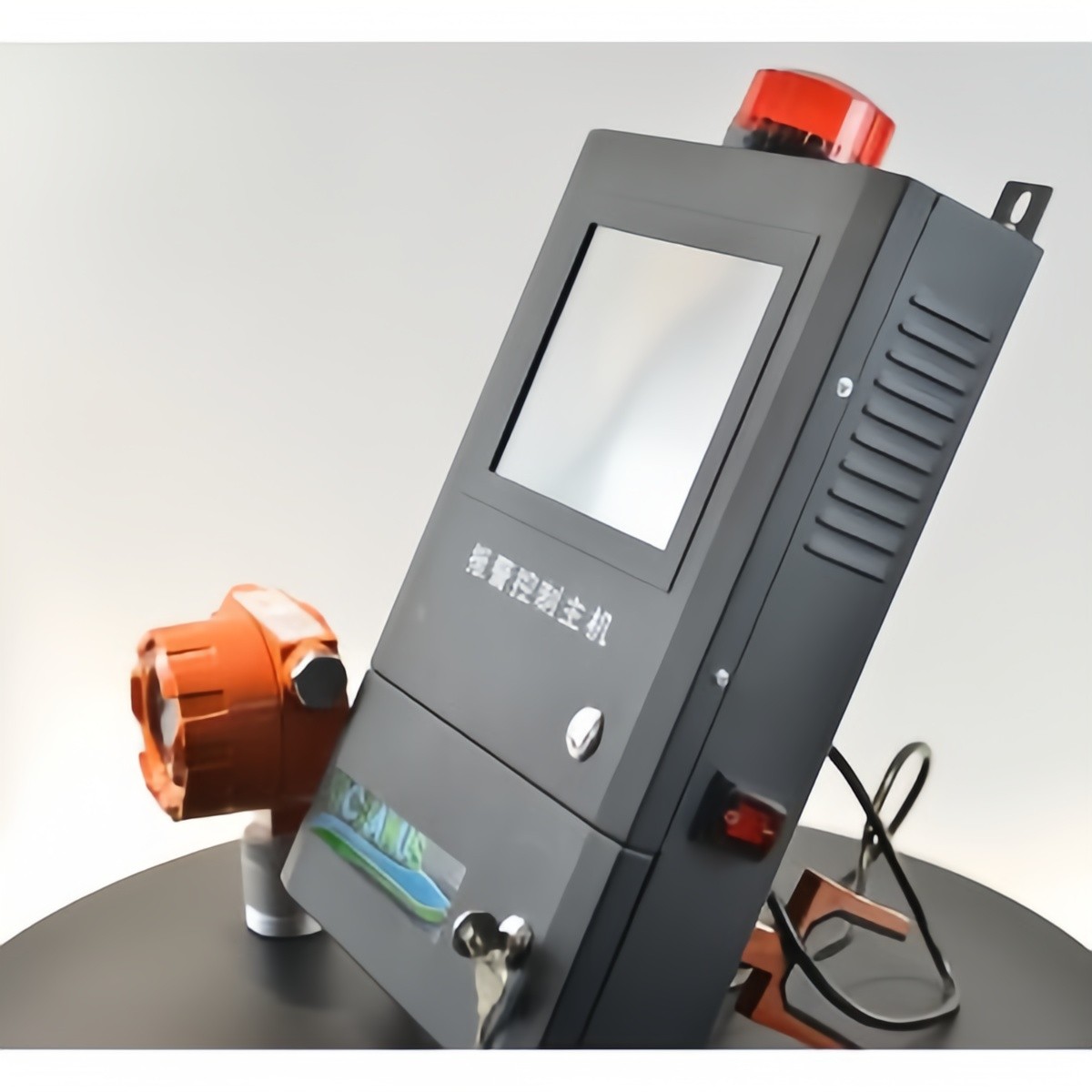

OC-8000 Gas Detection Controller comes with newly designed 8-inch touch screen. This wall-mounted control unit adopts RS485 signal input to connect up to 32 OC-F08 gas detectors. It offers real-time gas concentration display, audible & visual alarm and relay linkage for exhaust fans and valves. It monitors flammable, toxic gases and VOCs, providing reliable leakage protection for multiple industrial sites.
OC-8000 gas detection controller features a newly designed 8-inch TFT touch screen, functioning as a wall-mounted central control unit for industrial gas monitoring systems. Adopting RS485 signal input, it can connect up to 32 OC-F08 Fixed gas detectors within a 2000-meter communication range. It enables centralized real-time viewing of gas concentration data for all monitoring points. Once gas concentration exceeds the preset alarm threshold, audible and visual alarms will activate instantly. The 4-channel relay output supports linkage with exhaust fans, solenoid valves and other safety equipment to automatically cut off hazards. This controller can monitor various flammable, toxic gases and VOCs. With IP54 protection and stable performance over a wide temperature range, it delivers reliable gas leakage warning and safety interlock protection for factories, chemical workshops, sewage plants and other industrial sites.
Technical Parameter:
| Item | Description |
| Product name | Gas detection controller |
| Display | 8 inch TFT LCD touch screen |
| Power supply | AC220V±15%, 50Hz±1% |
| Consumption | ≤10W(according to different channels) |
| Output voltage | DC24V±15% |
| Input signal | RS-485 |
| Relay output | 4 relay output with optional NO or NC |
| Relay contact capacity | 5A, 30VDC or 5A, 220VAC |
| Alarm mode | Audible, visual |
| Installation mode | Wall-mounted |
| Suitable gas detector | OC-F08 Fixed gas detector with RS485 signal output |
| Gas detector quantity | ≤64pc |
| Communication distance | ≤2000m |
| Working temperature | -10℃~+50℃ |
| Working humidity | 10~95%RH（Non-condensation） |
| Size | 400mm*280mm*80mm |
| Weight | About 3.6kg |
| Protection grade | IP54 |
| Quality standard | GB 16808-2008 GB 15326-1994 |
| Certificate | CE, RoHS |
Applications:
Chemical Industry & Petrochemical Plants
VOCs waste gas treatment workshops and environmental protection stations
Painting, spraying and coating production lines
Sewage treatment plants and landfill sites
Pharmaceutical factories and disinfection workshops
Oil depots, gas stations and LPG storage areas
Metallurgy, mining and industrial manufacturing workshops
Food processing factories and sterilization workshops
Industrial parks with strict gas safety requirements
Our After-sales service:
1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc.
2. Free calibration service and provide calibration methods.
3. One year warranty and lifetime warranty
