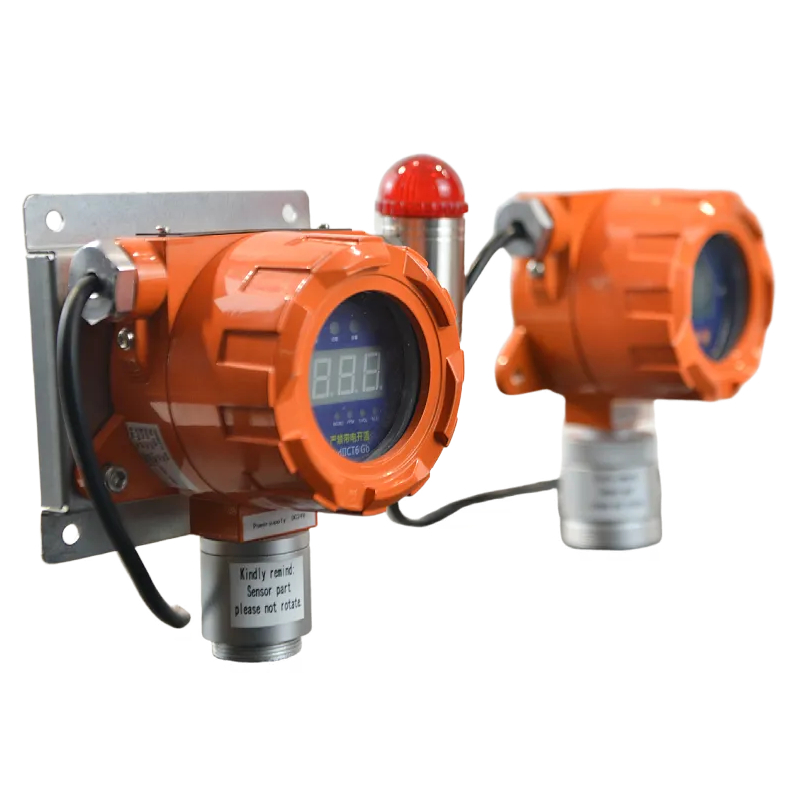

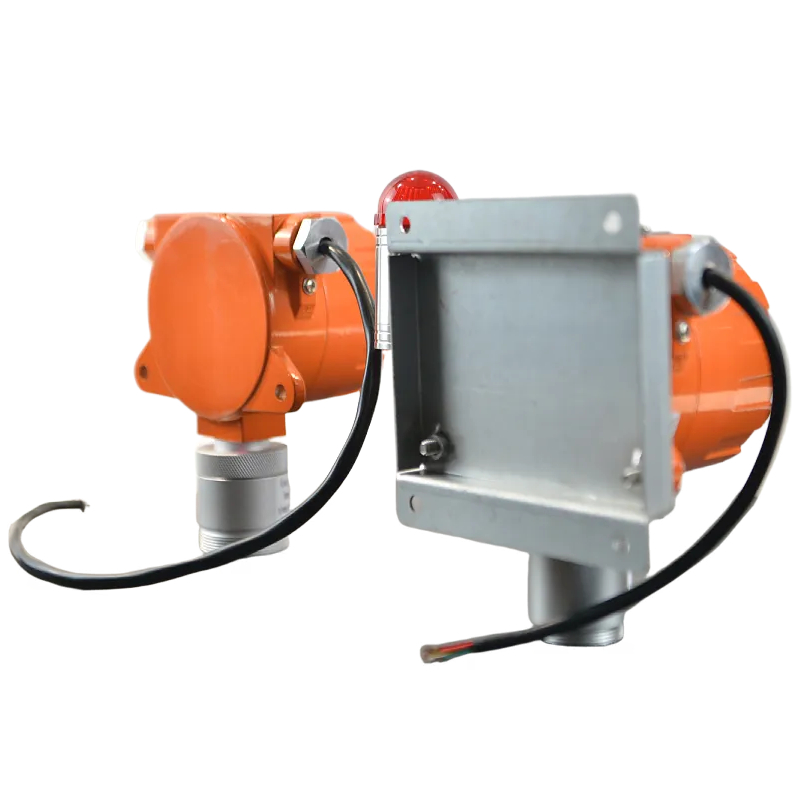

OC-F08 fixed gas detector with audible-visual alarm
- Brand Oceanus
- Type OC-F08
OC-F08 fixed gas detector with audible-visual alarm
OC-F08 fixed gas detector with the function of audible-visual alarming, when the detecting place gas concentration up to the value it will alarm, this could help the workers to take auctions to assure the safety.
This mode with the imported sensor and microcontroller technology, so the gas detector respond quickly and with higher accuracy. Possible to connect with many kinds of controller system, such as the PLC, DCS, computer, etc.
For fixed gas detector OC-F08 the applications mainly is the safety inspection to detect the gas(combustible gas, toxic gas, oxygen, etc.) concentration, such as the petroleum refinery, chemical industry, LPG station detection, boiler plants, mining, poultry house and other enviroment protection.
With the fllowing features:
Data llogger function(Optional)
Independent air chamber
Automatic identification of key parameters of the sensor
Digital automatic tracking and compensation of temperature function.
Software automatic calibration function.
Gas concentration unit is avaible for ppm, %vol, mg/m3.
|
Gas |
Detecting Range |
Alarm Threshold |
Sensor Type |
|
NH3 |
0-100 PPM |
25 PPM / 50 PPM |
Electrochemical sensor |
|
Cl2 |
0-50.0 PPM |
10 PPM / 20 PPM |
|
|
H2 |
0-1000 PPM |
50 PPM / 100 PPM |
|
|
CH2O |
0-100 PPM |
25 PPM / 50 PPM |
|
|
O2 |
0-30.0%vol |
18.5%vol / 23.5%vol |
|
|
H2S |
0-100 PPM |
10 PPM / 20 PPM |
|
|
HCl |
0-30.0 PPM |
5.0 PPM / 10.0 PPM |
|
|
HCN |
0-50.0 PPM |
5.0 PPM / 10.0 PPM |
|
|
PH3 |
0-20.0 PPM |
0.3 PPM / 0.6 PPM |
|
|
HF |
0-10.0 PPM |
3.0 PPM / 6.0 PPM |
|
|
NO |
0-250 PPM |
25 PPM / 50 PPM |
|
|
CO |
0-500 PPM |
35 PPM / 70 PPM |
|
|
SO2 |
0-20.0 PPM |
2.0 PPM / 10.0 PPM |
|
|
ClO2 |
0-50.0 PPM |
0.3 PPM / 0.5 PPM |
|
|
NO2 |
0-20.0 PPM |
1.0 PPM / 2.0 PPM |
|
|
C2H4O |
0-100 PPM |
10 PPM / 20 PPM |
|
|
O3 |
0-20.0 PPM |
5.0 PPM / 10.0 PPM |
|
|
CH4 |
0-100%LEL |
25%LEL / 50%LEL |
Catalytic combustion sensor |
|
C3H8 |
0-100%LEL |
25%LEL / 50%LEL |
|
|
H2 |
0-100%LEL |
25%LEL / 50%LEL |
|
|
NH3 |
0-100%LEL |
25%LEL / 50%LEL |
|
|
C2H4O |
0-100%LEL |
25%LEL / 50%LEL |
|
|
CH3CH3 |
0-100%LEL |
25%LEL / 50%LEL |
|
|
C2H4 |
0-100%LEL |
25%LEL / 50%LEL |
|
|
C4H10 |
0-100%LEL |
25%LEL / 50%LEL |
|
|
C4H8 |
0-100%LEL |
25%LEL / 50%LEL |
|
|
C7H8 |
0-100%LEL |
25%LEL / 50%LEL |
|
|
C8H10 |
0-100%LEL |
25%LEL / 50%LEL |
|
|
CH4O |
0-100%LEL |
25%LEL / 50%LEL |
|
|
C2H6O |
0-100%LEL |
25%LEL / 50%LEL |
|
|
C3H4O |
0-100%LEL |
25%LEL / 50%LEL |
|
|
C2H3Cl |
0-100%LEL |
25%LEL / 50%LEL |
|
|
C3H9N |
0-100%LEL |
25%LEL / 50%LEL |
|
|
CH3Br |
0-100%LEL |
25%LEL / 50%LEL |
|
|
CO2 |
0-5.0%vol |
1.0%vol / 3.0%vol |
NDIR infrared sensor |
|
0-5000ppm |
800 PPM / 1500 PPM |
||
|
CH4 |
0-5.0%vol 0-100%vol |
1.0%vol / 3.0%vol 5%vol / 10%vol |
If you need the fixed gas detector, welcome to contact us, send us your requirements on the gas type and applications, we will provide more details for you.
