PH3 gas detector, Fumigation gas detector, PH3 gas monitor, Fixed gas monitor

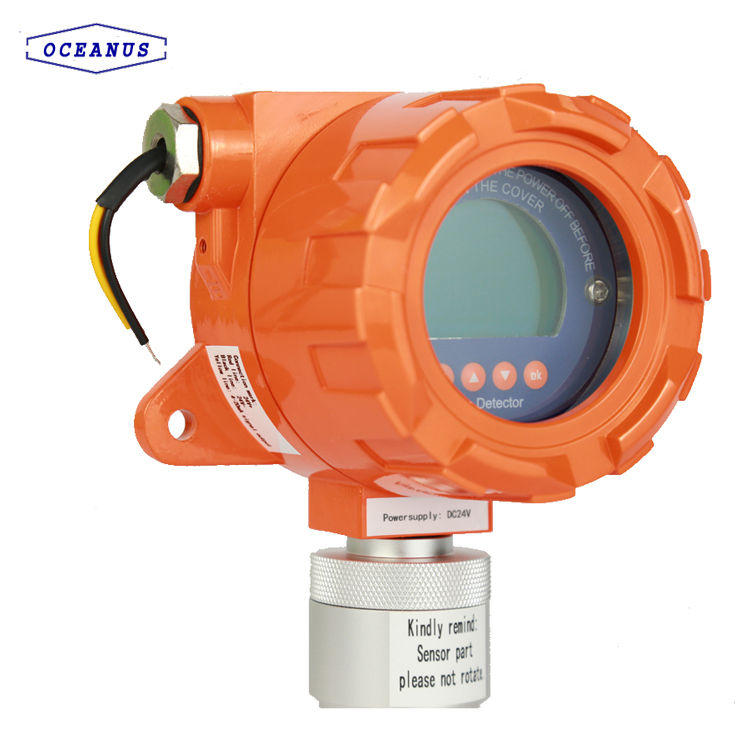

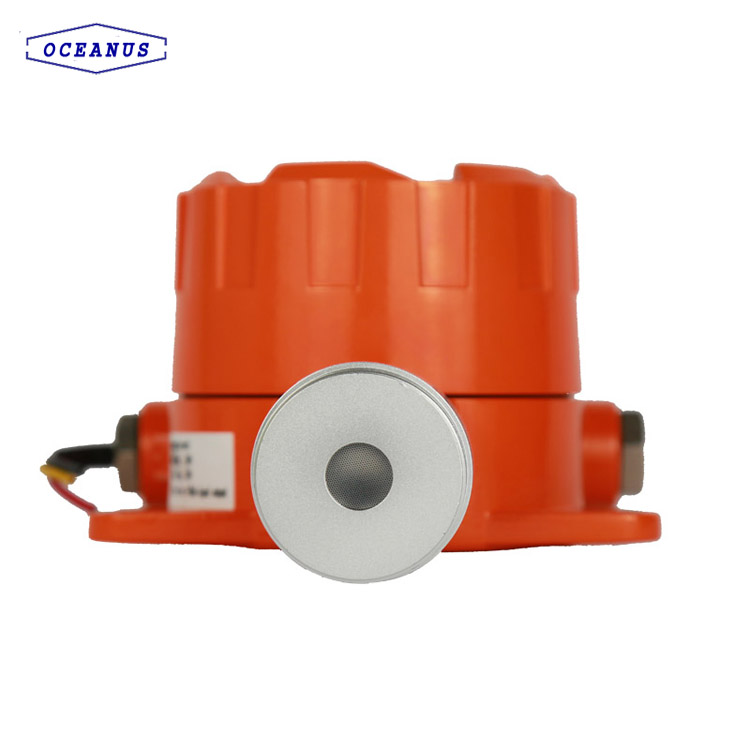

OC-F08 online Phosphine PH3 gas detector with the imported sensor and microcontroller technology, so the precision is higher, stability and repeatability are good. The Electrochemical sensor with different measuring range for choice, suitable for many demands in the process of fumigation.

OC-F08 fumigation gas monitor mainly used to inspect the PH3 gas concentration in the industry of fumigation, including to detect the gas concentration of the remaining PH3 gas. Usually the smaller inspection range PH3 gas detector could be used to test the leak during fumigation. So, PH3 gas detector is the primary device for gas detection of fumigation industry.

Working principle: Electrochemical sensor

Sampling mode: Diffusion sampling or Pump-sunction sampling

Installation methods: Wall-mounted or Rack-mounted

Singal output: 4~20mA singal output, RS485 digital singal output, also the relay output

Measuring range: 0~5ppm, 0~20ppm, 0~100ppm, 0~200ppm, 0~1000ppm, 0~2000ppm, 0~4000ppm selectable

Resolution: 0.01ppm（0～100ppm）；0.1ppm（0～1000ppm）；1ppm（above 1000ppm）

Precision: ≤±3%

Explosion-proof: Exd II CT6
