OC-906 Portable Infrared CH4 gas detector with inner pump

2017-7-13      View:
  • Brand   Oceanus
  • Type   OC-906
  • Inquire Now
Introduction

OC-906 portable pump-suction gas detector used to inspect the single gas concentration. Suitable for the environmental monitor, industrial production, and other working place existing the harmful gas, with the purpose of protecting the humanity healthy and safety.


Infrared CH4 gas detector Features:

Intelligent probe and easy to calibrate or maintenance.

If any fault, warning, operator error, it will tip.

Internal CF calibration coefficients(only valid for VOC inspection).

Full color 3.5 inch TFT screen for displaying the measuring parameter.

The gas concentration could display as the digital and curve.

Support the USB port could connect the computer directly.

With the data storage function, the historic data could be check on the gas detector or computer.

With alarm record function, could keep the last four times alarming time and type.

With calibration record function, can save the last four times of calibrate time span.

Powerful rechargeable lithium battery, if low battery will automatic shut down.

High reported, low reported, TWA, STEL, Shut down time, pump speed, etc.


Infrared CH4 gas detector Technical Parameter:

Gas type

Methane(CH4)

Sensor type

Infrared (NDIR) sensor

Sampling mode

Pump-suction sampling

Measuring range

0~5%vol, 0~20%vol, 0~50%vol, 0~100%vol or customized

Resolution

0.01%vol, 0.1%vol

Precision

±3% F.S

Response time

<20s

Indicate way

LCD display of real-time concentration, buzzer alarm

Power supply

Rechargeable 4.2V, 3000mAh lithium battery

Working environment

Temperature: -40~70℃,humidity:15%~95%(non-condensing)

Explosion-proof

Exia II CT4

Protection degree

IP65

Size

228* 84 * 50.5mm

Weight

0.55KG

Warranty

12 months



Infrared CH4 gas detector Application:

Widely used in the petroleum, chemical industry, power, water treatment, tobacco, pharmaceutical, food industry, coal, metallurgy, municipal gas, paper, paint, textile, environment monitoring system, health monitoring system, etc.



Detection gas: any gas type of the following: CH2O, TVOC, CO, H2S, CO2, O2, NO2, NO, SO2, NH3, Cl2, PH3, O3, F2, HCN, ClO2, C2H4, C2H4O, SF6, etc.

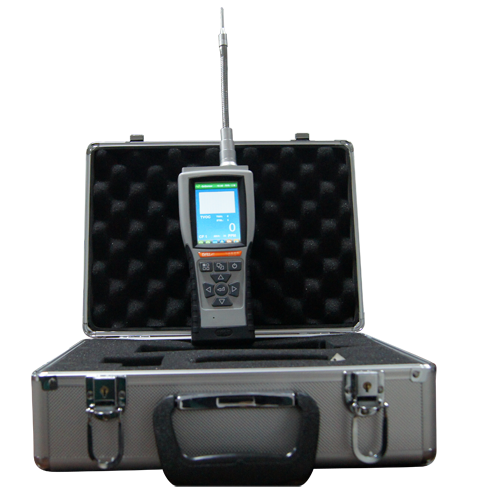

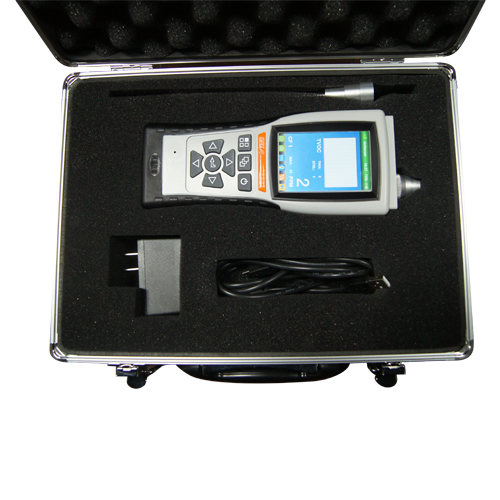

OC-906 Infrared gas detectorOC-906 Infrared CH4 gas detector



If any more questions about the OC-905 gas detector, welcome to contact with us.
