Gas detector, Ozone O3 gas detector, O3 gas monitor

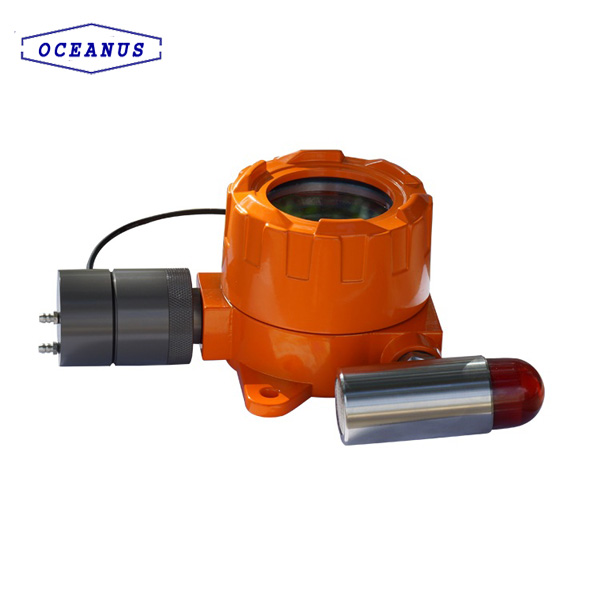

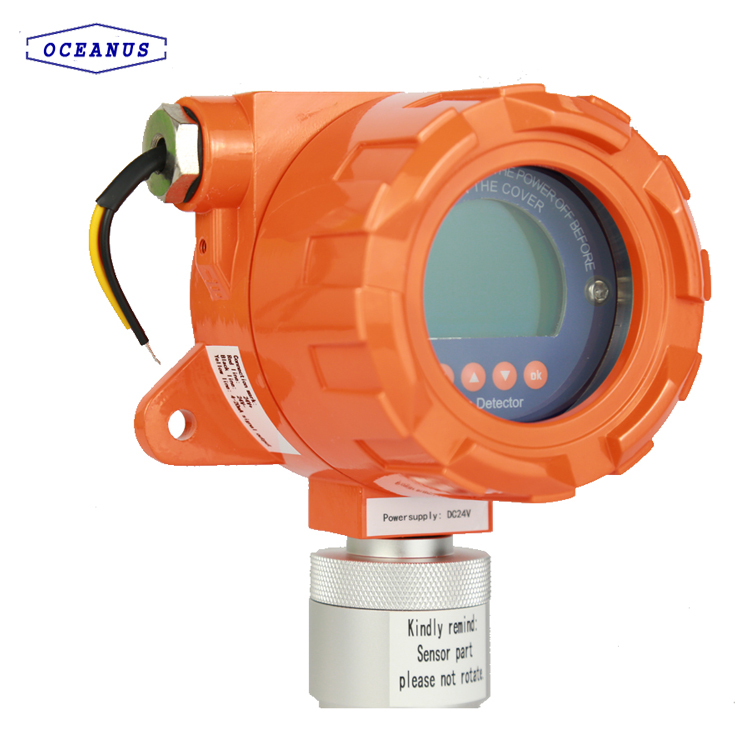

OC-F08 online Ozone O3 gas detector used to continuously detect the O3 gas concentration in different industry, including the Drinking water, Sewage, Industrial oxidation, Food process and preservation, Pharmaceutical, Sterilization, etc. Avaible for massive control system, PLC, DCS, etc. With the optional function of remote monitor, remote controller, remote alarm, data logger and analysis, etc.

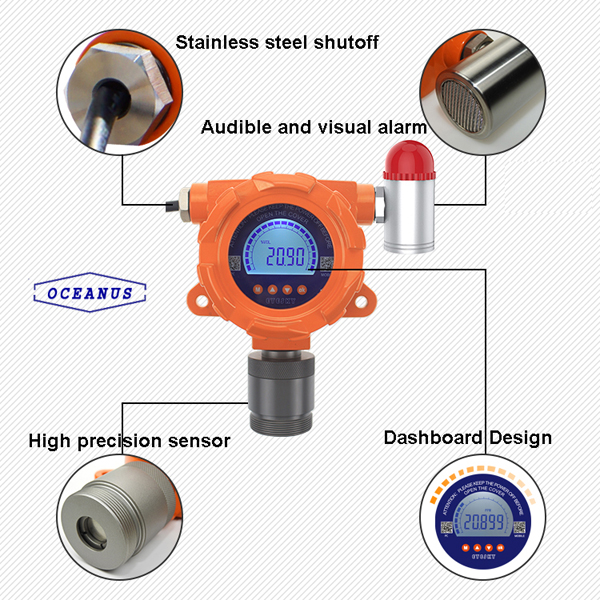

Features:

Imported sensor with the long life of 3 years.

Singal output with the 4~20mA , RS485, also the relay output.

200~1000HZsignal output（optional）;

Back light LCD screen displaying the each parameter.

Independent air chamber, if replace the sensor no need to online calibration.sensor parameter could be automatic indentification.

All range with the digital auto tracking and compensation of temperature, to ensure the measuring accuracy.

Parameters:

Gas type: Ozone(O3)

Working principle: Electrochemical sensor, diffusion sampling or pump-sunction sampling

Installation mode: Wall-mounted or rack mounted

Measuring range: 0~1ppm, 0~5ppm,0~20ppm, 0~100ppm, 0~200ppm, 0~500ppm, 0~1000ppm, 0~5000ppm, 0~10000ppm, 0~30000ppm or customized.

Resolution: 0.001ppm(0~5ppm), 0.01ppm(0~100ppm), 0.1ppm(above 1000ppm)

Precision: ≤±3%, ≤±2%, ≤±1%,

Explosion-proof: Exd II CT6

Size: 170*140*80mm

Weight: 1.5kg



If want more details, welcome to contact us, professional service will be provided for you.
