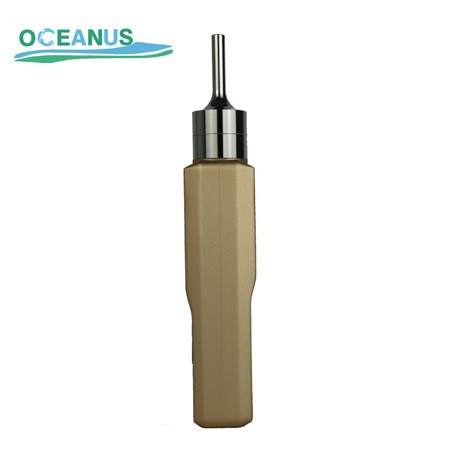

OC-905 pump suction portable O2 gas detector, high precision oxygen monitor with sound-light alarm, for confined space, tank cabin and underground pipeline oxygen safety detection.
Description:
OC-905 Portable Oxygen O2 gas detector designed with the inner pump and the famous brand sensors, with stable performance and high accuracy. Used to detect the single gas concentration for the Combustible gas, Toxic gas, Carbon Dioxide, Oxygen, TVOC, etc. It can directly display the gas concentration data on the screen, the data also could be exported to the computer by USB cable.
For the portable Hydrogen Sulfide gas detector, the common applications is gas safety inspection and alarm for industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc., where need to inspect the Oxygen gas concentration.
Features:
Used the original imported sensor, semiconductor technology of ultra low power 32 bit microprocessor, 24 bit ADC acquisition chip, so with the high accuracy.
2.5 inch dot matrix display interface.
All English operation menu and easy operation.
Unit data available for %vol.
The circuit installed the four layers of wire, so well anti-interference.
Explosion proof grade is Ex ib IIC T4 Gb.
Function:
Inspect the gas concentration and alarm when it reaches preset alarm level.
High accuracy, good stability and good repeatability, long working life.
One-key operation to restore to factory default setting.
Adjustable two-stage audible-visual alarm threshold value.
Powered by rechargeable lithium battery with big capacity.
The built-in pump could be controlled.
Technical Parameter:
| Gas type | Oxygen O2 |
| Measuring range | 0-5000、10000、50000ppm、0-5%vol、25%、30%Vol or Customized |
| Working principle | Electrochemical sensor |
| Resolution | 0.1 PPM 0.01 %Vol or Customized |
| Precision | ±≤3%FS |
| Repeatability | ≤±2% |
| Zero drift | ≤±1%(F.S/year) |
| Sampling mode | Pump-suction sampling (Flow rate of 300ml/minute) |
| Data storage | Can record 300000 group of measuring data |
| Response time | T90≤30s (different gas sensors have different response times) |
| Recovery time | ≤20s |
| Pre-heating time | ≤60s |
| Display | LCD dot matrix display of the Gas type, gas concentration unit, gas concentration data, time, battery status, data storage status; |
| Concentration unit | %LEL, %Vol, ppb, ppm，mg/m3 |
| Working environment | -20℃～50℃(Special requirements need to be customized) Working humidity: 10%-95%RH(non-condensing) Working pressure: 86Kpa～106Kpa |
| Explosion-Proof grade | Ex ib IIC T4 Gb |
| Protection grade | IP54 |
| Alarm mode | Audible, visual. Two-color LED alarm light, sound≥75dB@25cm |
| Shell material | Metal |
| Power supply | 3.7VDC, 2600mAh,Rechargeable lithium battery DC5V USB charger |
| Charge time | ≤6 hours |
| Working time | ≥12 hours (Normal temperature electrochemical sensor) |
| Dimensions | 200.5*64.8*35.5mm |
| Weight | 0.5KG |
| Accessory | Box, instruction, USB charger , data line |
| Quality standard | GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010,GB12358-2006 |
Application Scenarios
Confined space entry detection: underground pipeline, tank body, sewage well, cable trench oxygen concentration pre-detection
Industrial production workshop: chemical industry, metallurgy, smelting workshop real-time oxygen monitoring
Laboratory & pharmaceutical industry: sterile workshop, biological lab, pharmaceutical production environment oxygen monitoring
Ship & marine equipment: cabin, ship compartment internal oxygen safety monitoring
Environmental protection & waste gas treatment: waste water station, waste gas disposal workshop oxygen monitoring
Food packaging industry: match with sampling needle to detect oxygen content inside food packaging bags
Our Certificate
Our After-sales service:
1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc.
2. Free calibration service and provide calibration methods.
3. One year warranty and lifetime warranty
