OC-905 pump suction portable H2 hydrogen gas detector, high precision hydrogen monitor with sound-light alarm, for hydrogen plant, hydrogen energy station and pipeline leakage safety detection.
Description

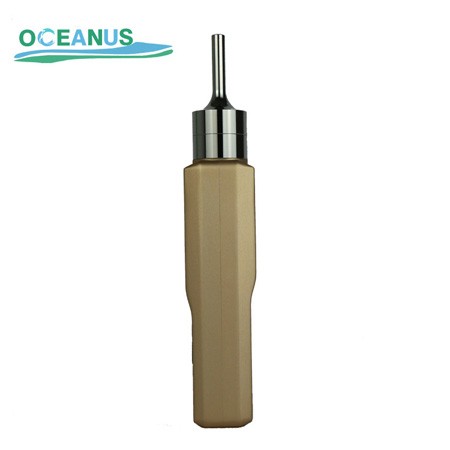

OC-905 portable pump-suction hydrogen gas detector is a handheld gas monitor with built-in sampling pump. It adopts high-precision H2 sensor to quickly and accurately detect hydrogen concentration on site. LCD screen displays real-time gas data, and sound-light alarm will trigger when concentration exceeds preset threshold. Compact handheld design supports mobile field inspection for hydrogen leakage safety monitoring.
Function:
Inspect the gas concentration and alarm when it reaches preset alarm level.
High accuracy, good stability and good repeatability, long working life.
One-key operation to restore to factory default setting.
Adjustable two-stage audible-visual alarm threshold value.
Powered by rechargeable lithium battery with big capacity.
The built-in pump, stable flow rate, can be opened or closed;
Feature:
Multi Gas Detection: Supports combustible gas, oxygen (O2), carbon dioxide (CO2), toxic gases and TVOC
Built-in Pump Sampling: Stable flow rate (300ml/min) for fast and accurate detection
High Precision Sensors: Imported sensors with intelligent algorithm and temperature compensation
Audible & Visual Alarm: Dual alarm system with ≥75dB buzzer and LED light
Data Storage & Export: Stores up to 100,000 records, USB data export supported
Explosion-Proof Design: Certified Ex ib IIC T4 Gb for hazardous environments
Long Battery Life: Rechargeable lithium battery, up to 12 hours operation
Technical Parameter:
| Gas type | Hydrogen H2 |
| Measuring range | 0-100ppm、500ppm、1000ppm、2000ppm、40000ppm or Customized |
| Working principle | Electrochemical sensor |
| Resolution | 0.1 PPM or customized |
| Precision | ±≤3%FS |
| Repeatability | ≤±2% |
| Zero drift | ≤±1%(F.S/year) |
| Sampling mode | Pump-suction sampling (Flow rate of 300ml/minute) |
| Data storage | Can record 300000 group of measuring data |
| Response time | T90≤30s (different gas sensors have different response times) |
| Recovery time | ≤20s |
| Pre-heating time | ≤60s |
| Display | LCD dot matrix display of the Gas type, gas concentration unit, gas concentration data, time, battery status, data storage status; |
| Concentration unit | %LEL, %Vol, ppb, ppm，mg/m3 |
| Working environment | -20℃～50℃(Special requirements need to be customized) Working humidity: 10%-95%RH(non-condensing) Working pressure: 86Kpa～106Kpa |
| Explosion-Proof grade | Ex ib IIC T4 Gb |
| Protection grade | IP54 |
| Alarm mode | Audible, visual. Two-color LED alarm light, sound≥75dB@25cm |
| Shell material | Metal |
| Power supply | 3.7VDC, 2600mAh,Rechargeable lithium battery DC5V USB charger |
| Charge time | ≤6 hours |
| Working time | ≥12 hours (Normal temperature electrochemical sensor) |
| Dimensions | 200.5*64.8*35.5mm |
| Weight | 0.5KG |
| Accessory | Box, instruction, USB charger , data line |
| Quality standard | GB15322.1-2003,GB3836.1-2010,GB3836.2-2010,GB3836.4-2010,GB12358-2006 |
Application Scenarios
Hydrogen production workshop leakage patrol
Hydrogen energy station, fuel cell equipment inspection
Laboratory hydrogen pipeline safety test
Chemical plant hydrogen storage area monitoring
Power station hydrogen cooling system detection
Our Certificate
Our After-sales service:
1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc.
2. Free calibration service and provide calibration methods.
3. One year warranty and lifetime warranty
