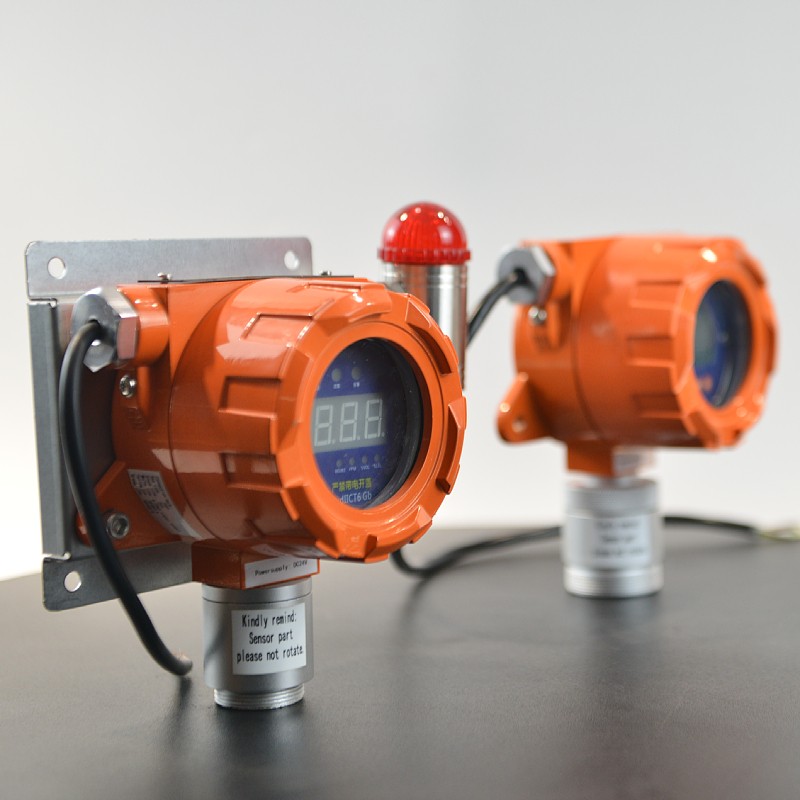

OC-F08 Online Dust Detector is a fixed wall-mounted particulate monitoring device. It adopts high-precision optical sensor for continuous real-time dust concentration measurement. It triggers sound-light alarm when exceeding preset limit. Explosion-proof housing supports RS485 and 4-20mA output, widely used in factory workshop, mine, cement plant for particulate pollution monitoring.
Description:
OC-F08 fixed dust detector is our company new products, designed to detect the PM2.5 or PM10 dust concentration. It’s suitable for the industrial area and environmental department to inspect the PM2.5 or PM10.
Features:
Imported high performance laser sensor, with high precision and good
4-20mA standard analog signal and RS485 digital signal output, 200~1000HZsignal output, relay output, data restore, data logger(optional);
Infrared remote controller operation;
With the 16bit ADC acquisition chip, designed with four-layer circuit board, so with high anti-interference ability;
With the Ex-proof certificate, the Ex-proof grade is Exd II CT6.
Technical Parameter:
| Product name | |
| Measurement principle | Laser scattering method |
| Measuring range | 0-1000ug/m3 |
| Measurement item | PM2.5 or PM10 |
| Precision | ≤1ug/m3 |
| Preheat time | ≤8s |
| Alarming mode | Audible-visual alarm, Relay output alarm |
| Operating Environment | Temperature: -30℃~60℃ (Customized for special demands) Humidity: ≤95%RH (non-condensing); if >90%RH, can add the filter Pressure: 86kPa~106kPa |
| Working Voltage | 24V DC(16~30VDC) |
| Output Signals | Three-wire system 4~20mA standard signals output, available for PLC, DCS, etc; RS485 signal output; Two-level relay output: 220VAC 0.5A或24VDC 1A； |
| Power waste | ＜2.5W |
| Installation Means | Wall mounted |
| Material of Body | Cast aluminum |
| Explosion-proof Index | Ex d IIC T6 |
| Protection Grade | IP66 |
| Dimension | 180 mm×140 mm×92 mm（L×W×H） |
| Weight | About 1.6Kg |
| Standards | GB15322.1-2003，GB3836.1-2010，GB3836.2-2010，GB3836.4-2010 |
| Warranty | 12months |
| Certificate | CNEx, CE, RoHS |
Application:
1. Monitoring and controlling of the air quality indoor area and public area.
2. Measurement and assessment of the air quality.
3. Workshop to monitor the air quality.
Our After-sales service:
1. OEM service for LOGO, model, Technical Parameters, Operation manual, etc.
2. Free calibration service and provide calibration methods.
3. One year warranty and lifetime warranty
