OC-1000 portable multi-gas detector simultaneously detects CO, O3, NO2 and SO2. Adopts high-precision electrochemical sensors with fast response and stable readings. It supports data recording and audible-visual alarm function, widely used for industrial flue gas, environmental air quality inspection and factory emission monitoring.
Description
The OC-1000 multi-gas analyzer is a professional portable environmental monitoring device designed for detecting common industrial harmful gases.
It can real-time monitor Carbon Monoxide (CO), Ozone (O3), Nitrogen Dioxide (NO2) and Sulfur Dioxide (SO2). These four typical pollutant gases are widely produced in industrial combustion, chemical reactions, factory exhaust and urban air pollution.
Equipped with high-sensitivity electrochemical sensors, the instrument features accurate detection, low drift and strong anti-interference ability. It adopts professional sampling and calibration technology to ensure reliable test results in complex working environments.
The device supports real-time data display, concentration curve viewing, adjustable alarm threshold and sound-light dual alarm system. Built-in data logging function records detection data continuously for report exporting and environmental record filing.
Lightweight and portable, it is suitable for field patrol inspection, factory emission testing, environmental emergency monitoring, urban air quality investigation and industrial park safety assessment.
Features
Semiconductor technology of ultra low power 32 bit microprocessor, 24 bit ADC acquisition chip, so with the high accuracy.
3.5 inch IPS industrial grade color screen.
Support Chinese or English operation menu.
Gas concentration unit available for %LEL， PPM, %VOL, mg/m3.
For 1~5 gas detecting, gas type all be customized, supporting the PM2.5 particle counter sensor, and humidity sensor, etc.
Internal sampling pump for suction, the suction strength is adjustable in different level.
Explosion proof grade is Exia ⅡCT4.
Technical Parameter:
Gas type | CO, SO2, NO2, O3 | ||
Working principle | Electrochemical sensor | ||
Measuring range | CO: 0~500ppm; NO2: 0~1ppm; SO2: 0~1ppm; O3: 0~1ppm; | ||
Resolution | NO2: 0.001ppm; SO2: 0.001ppm; CO: 0.1ppm; O3: 0.001ppm | ||
Precision | ±3%F.S (or customized) | ||
Dust Temp & Humidity testing range | Temperature: -40~60℃; Humidity: 0~100% RH | ||
Data storage function | With the capacity of the 100000 group of measuring data, by the software could be transmitted to the computer. | ||

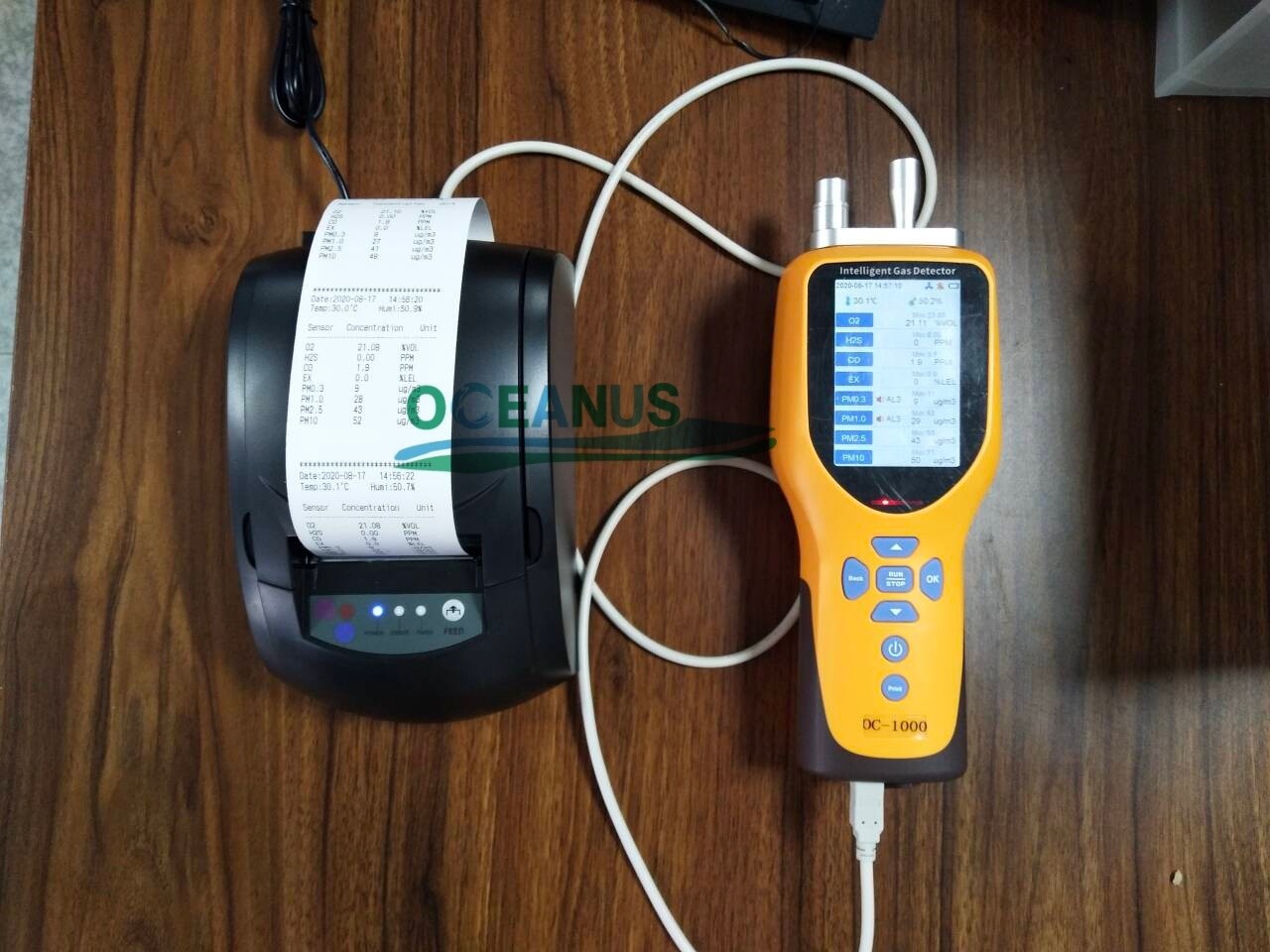

Printer | Optional mini-printer. | ||
Response time | ≤20s(T90) | Recovery time | ≤20s |
Repeatability | ≤±1% | Linearity | ≤±1% |
Zero drift | ≤±1%(F.S/year) | Concentration unit | ppm, %vol, %lel, mg/m3 |
Display | LCD display the Date, time, Temp& humidity, Gas concentration data, unit, status for the pump, alarm and battery. | ||
Operation language | Chinese/English | Alarm mode | Audible, visual, vibration |
Gas Working temperature | -30~60℃ | Working humidity | 0-95%RH(non-condensing) |
Working pressure | 70Kpa ~ 200Kpa | Explosion-proof grade | Ex ia IIC T4 Ga |
Protection grade | IP65 | Shell material | ABS+PC |
Dimensions | 220*88*55mm | Weight | 0.5KG |
Standard accessory | Particle filter, box, instruction, USB charger , data line, calibration cap. | ||
Function:
Inspect the gas concentration and alarm when it reaches preset alarm level.
With auto-test and data recover function.
One-key operation to restore to factory default setting.
Temperature and pressure compensation.
Adjustable two-stage audible-visual alarm threshold value.
Powered by rechargeable lithium battery with big capacity.
Working under the micro negative pressure is available.
Overload protection, over charge protection, anti static interference, anti magnetic interference, etc.
Application:
The Portable multi gas detector with the common applications include chemical industry, petroleum, gas station, metallurgy, agriculture, biology pharmaceuticals, power, lab research and other industry environment where need to inspect combustible or toxic gas concentration.
