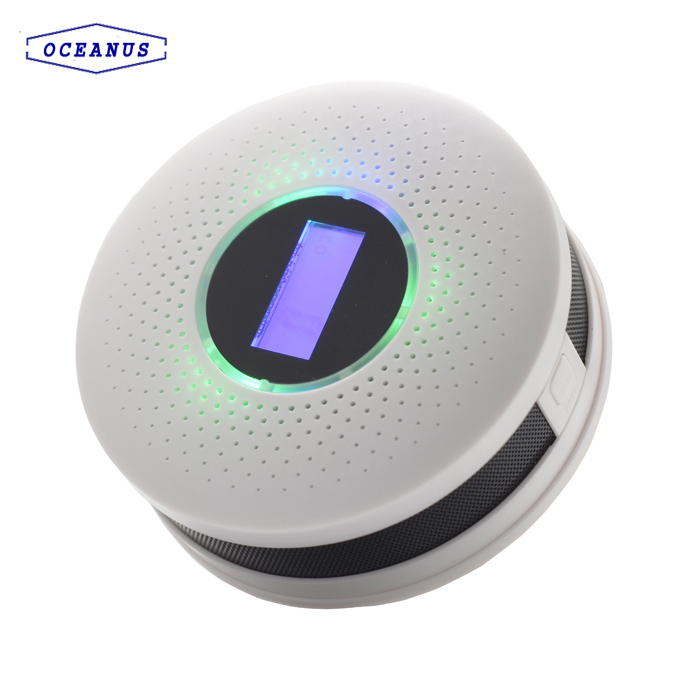

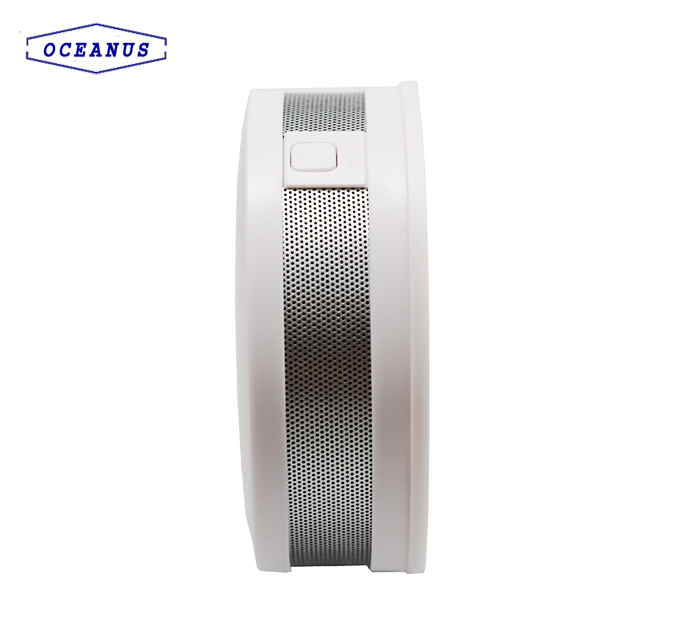

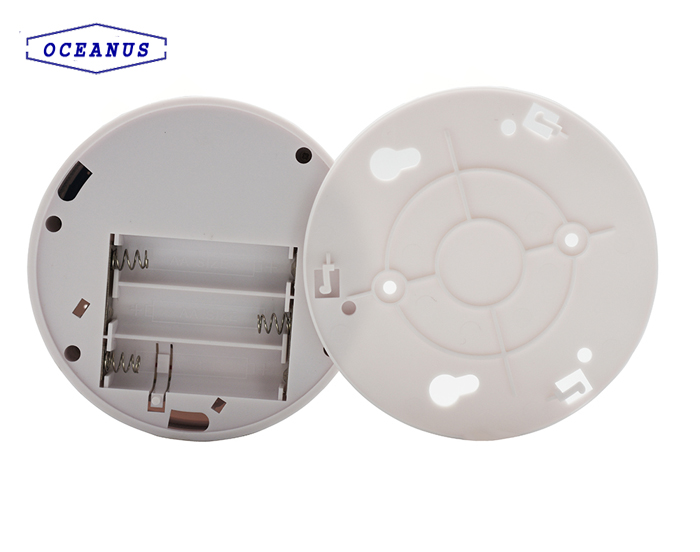

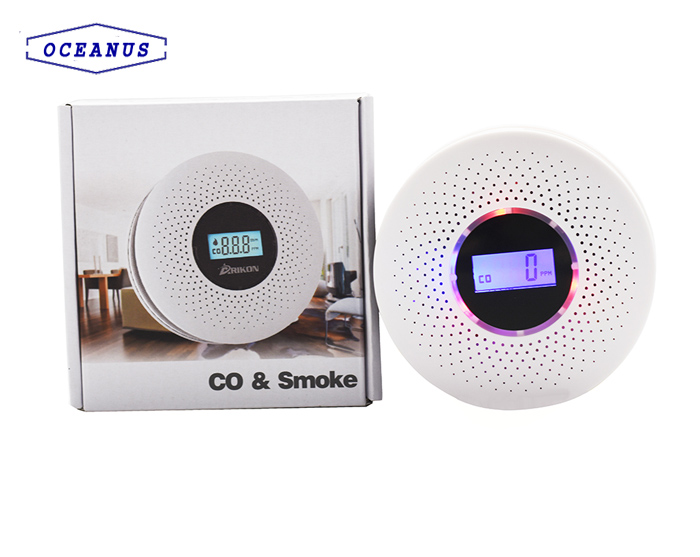

OC-512 Combined gas detector for Smoke and CO

2018-3-27      View:
  • Brand   Oceanus
  • Type   OC-512
  • Inquire Now
Introduction

Description:

The OC-512 Combined gas detector smoke and Carbon Monoxide CO with the voice prompt and microprocessor control, the LCD screen can display the gas concentration data. When the gas level up to the pre-set value, with dust-proof, mothproof and anti-light interference etc. functions, ensuring the detector stability from design basis and suitable for all kinds of installation environments and also with the optional wireless interconnection function.

Features:

High accurate electrochemical sensor and infrared photoelectric sensor

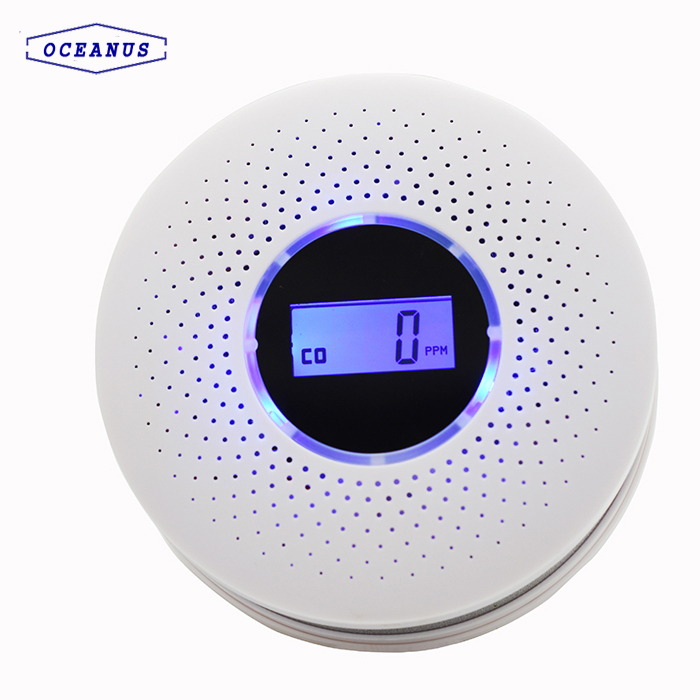

LCD display concentration PPM

3*1.5V AA battery supply

Ultra-long standby time, low current consumption

Low-battery warning

Alarm memory function

Alarming pause (hush mode)

Sound & flash alarm & LED indicating alarm

SMT manufacture technology, reliable stability

Test& Reset Button


Technical parameters:

Power Supply

3*1.5V AA battery

Static current

<80uA

Alarm current

<30mA

Alarm voice

Smart human voice prompt

Sensor

Electrochemical carbon monoxide sensor and Infrared photoelectric sensor

Sound Level

85dB/m

CO concentration

000-999 PPM

Smoke sensor sensitive

0.1%db/m-9.9%db/m

Alarm indication

LCD display, Light/sound prompt

Temperature

0~50

Relative Humidity

10%- 95%RH

Dimensions

Ф104*35mm

Battery capacity

low battery alarm

Applications:

The OC-512 Combined gas detector for Smoke and Carbon Monoxide CO is suitable for fire alarm in house, factories, shopping malls, hotels, restaurants, office buildings, teaching buildings, banks, libraries, warehouses, etc.
