Dust monitor system

2017-6-16      View:
  • Brand   Oceanus
  • Type   OC-9000
  • Inquire Now


Online air quality monitor could inspect the multi environmental parameter, including of the Dust, Noise, Meteorological factors, etc. With the advantage of large measuring range, long working life and easy operation, etc. The measurement data could display on the LED screen.


The monitor system include of inspection device, Surveillance Camera, Wireless or wired Transmission, Background Data Processing System and Information Supervisory Platform. For the measurement data, the platform with the function of alarm processing, record, query, statistics, report output, etc.



Display screen and host in one.

Could inspect the environmental quality 24 hours continuously or timing-inspection;

GPRS and RS485 communication optional;

The meteorological factors could choose to connect: Temperature, Humidity, Wind direction, Wind speed, Pressure, etc.

The shell material available for the all bad environment, dust-proof, rust-proof and moisture-proof; The protection grade is IP65;

Available to connect with the information supervisory platform;

Easy installation and operation.


Technical parameter:


Noise measuring range: 25~130dB(A), frequency range: 20Hz~12.5kHz

Dust monitor size: PM2.5, PM10 and TSP(Total suspended particulate)

Measuring range:0.001~10mg/m3

Resolution: 0.001mg/m3

Meteorological monitor: (Optional)

        Temperature: -40℃~70℃

        Humidity: 0~100%

        Wind speed: 0~60m/s

        Wind direction: 0~360°

Output interface: RS232, RS485, GPRS optional

Power supply: 220V

Size:     Screen: 30cm*30cm

         Monitor system: 42cm*40cm

         Vertical column: 3m or 1.5m(optional)

Sampling time: The standard time is 10 minutes or customized.

Installation type: Vertical column or Wall-mounted




The Dust and noise monitor system mainly used in the City management, Smart city, Construction sites, Garbage dumps, Demolition sites, Docks, Industrial parks, Communities, Road dust environmental monitor center, and other place need to inspect the air quality.

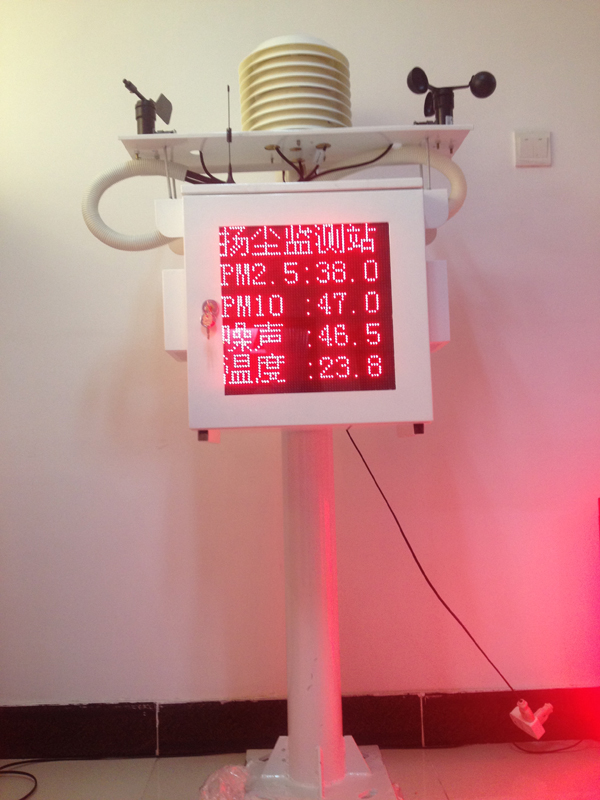

OC-9000 dust monitoringOC-9000 dust monitoring

The inspection parameter could be customized, if want to know more details, welcome to contact us.
