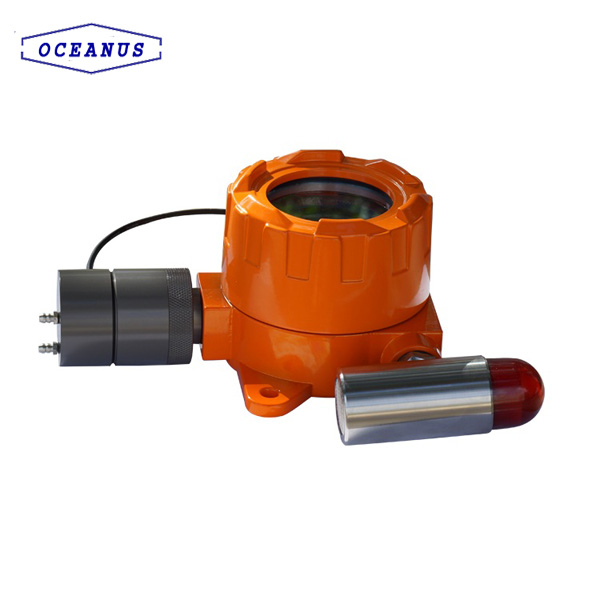

Fixed TVOC gas monitor with 4~20mA singal output

2016-8-9      View:
  • Brand   Oceanus
  • Type   OC-F08
  • Inquire Now
Introduction

OC-F08 online TVOC gas monitor with the imported PID sensor and microcontrol technology, with the high precision, respond quickly, good repeatability and stability. Availbe for different gas detection system, such as the PLC, DCS, computer, etc.

OC-F08 fixed combustible gas detector with Audible-visual alarm

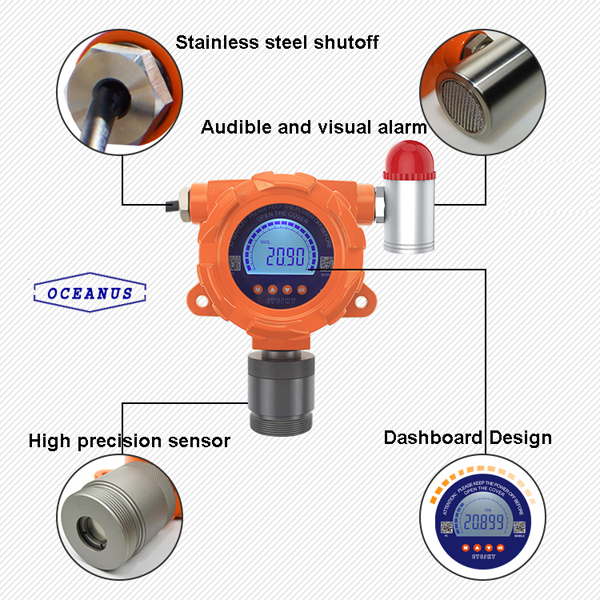

Features:

Imported high performance PID sensor.

With the 4~20mA singal output, RS485 digital output, also the delay output.

With the function of data restore, also the optional data storage function.

LCD back light displaying of the each technology parameter.

Full measuring range temperature data automatic compensation function.

With the audible-visual alarm.

Optional remote controller.

Technology parameter:

Gas type: TVOC (Total Volatile Organic Compounds)

Working principle: PID sensor

Sampling mode: Diffusion or pump-sunction

Installation mode: Wall-mounted or Rack-mounted

Measuring range:0~50ppm, 0~500ppm, 0~1000ppm, 0~2000ppm, 0~5000ppm, 0~10000ppm,or customized.

Resolution: 0.01ppm(0~50ppm), 0.1ppm(0~1000ppm), 1ppm(above 1000ppm)

Precision: ≤±3%, ≤±2% selectable

Repeatability: ≤±1%

Response time: 20s(T90)

Explosion grade: ExdII CT6

Protection grade: IP65

Working voltage: 24VDC(12~30VDC)

Working temperature: -20~50

Working pressure: 200Kpa

Size: 170*140*80mm

Weight:1.5kg


If any more questions about the TVOC gas detector, welcome to contact with us.
