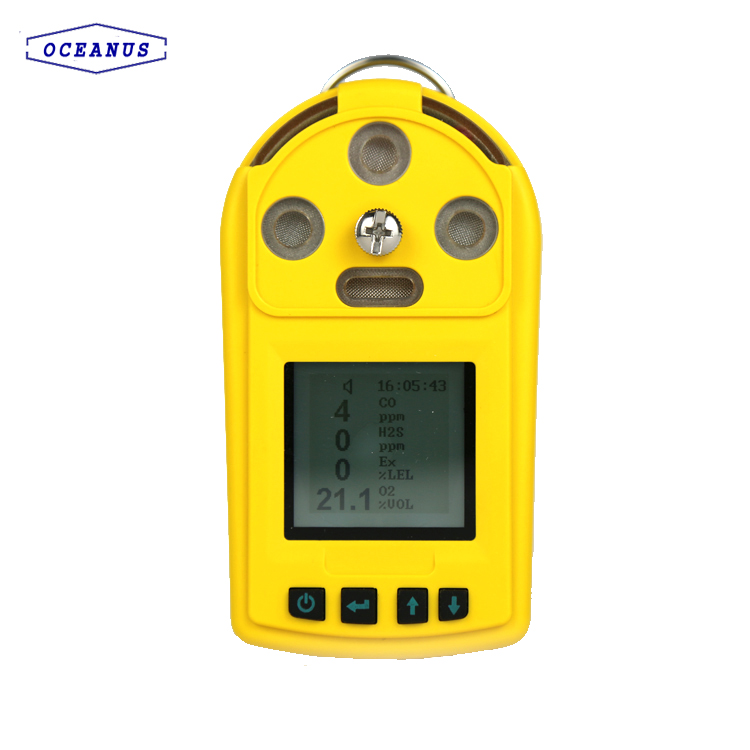

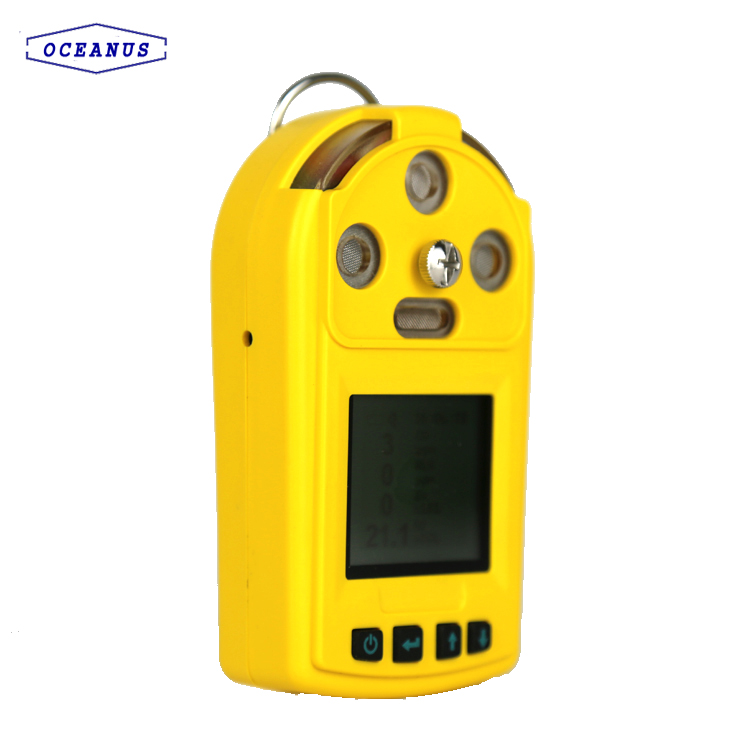

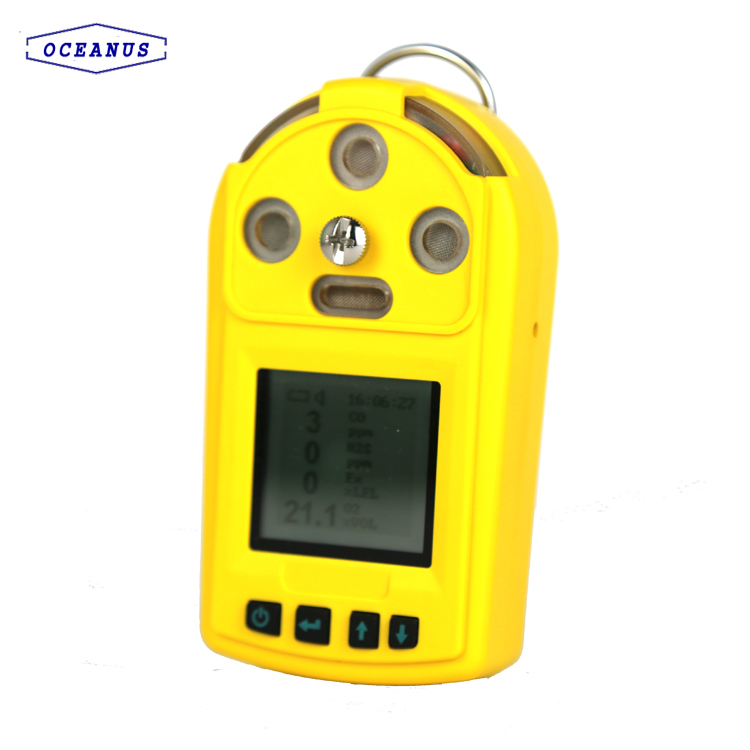

OC-904 Portable Ethylene Oxide C2H4O gas detector
- Brand Henan Oceanus
- Type OC-904
Description:
OC-904 Portable Ethylene Oxide (C2H4O/ETO) gas detector which is applicable for C2H4O detection, with the original imported sensor, with the safe and reliable quality. It’s with the diffusion sampling mode, can be connected with the external pump. The portable gas detector can promise the security for the personnel working under the harmful environments.
Features:
It used original imported sensor with good quality and high accuracy.
It can be combined with 1~4 different gas sensors for different gas type.
LCD dot matrix display, support both English and Chinese operating menu.
Adjustable preset two-stage alarm level.
With audible-visual-vibration alarm mode.

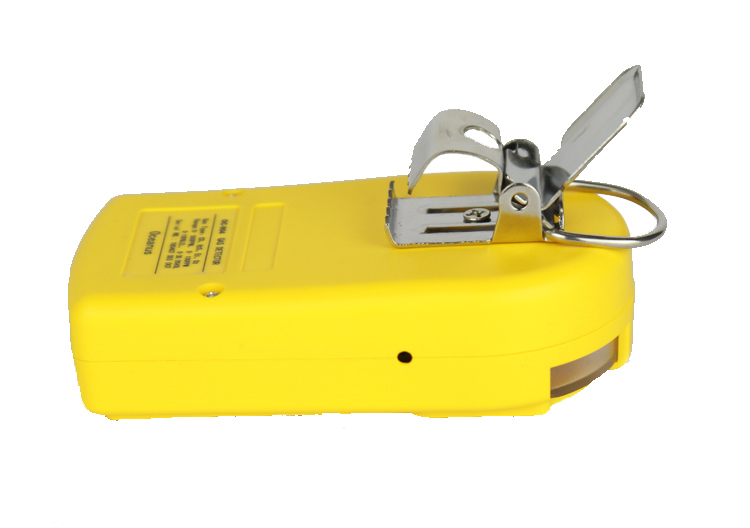

With a back clip, which is easy to carry when working.
Powered by rechargeable battery with big capacity which support a long working period.
Technical Specification:
|
Gas type |
Ethylene Oxide (C2H4O/ETO) |
|
Sensor Type |
Electrochemical sensor |
|
Sensor life |
2~3 years |
|
Measuring range |
0~10ppm/100ppm/500ppm |
|
Display Information |
Gas types, Concentration value, Concentration unit, Time, Battery status, Alarm status, etc. |
|
Display |
Large screen LCD |
|
Data Storage |
With data storage function with memory capacity of 1000 alarm records. |
|
Sampling mode |
Diffusion sampling (Available for connection with external pump) |
|
Operating Language |
Chinese or English operating menu is able to be changed freely. |
|
Alarm Mode |
Audible-visual-vibration alarm, sound≥75dB |
|
Power Supply |
3.6V, 1600mAh rechargeable lithium battery, continuous working period can reach to 10 hours or above. |
|
Explosion-proof Grade |
Ex ib IIB T3 |
|
Protection Grade |
IP65 |
|
Working Environment |
Working Temperature: -20℃～50℃ Working Humidity: 0-95%RH (non-condensing) |
|
Body Material |
ABS and PC |
|
Package |
ABS carrying case |
|
Dimensions |
110*60*30mm |
|
Weight |
210g (with charger) |
|
Warranty |
2 years |
The portable Ethylene Oxide (C2H4O/ETO) gas detector used in the gas safety inspection and alarm for industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc., where need to inspect the gas concentration of the C2H4O gas.
