Online combustible gas detector OC-F08

2016-12-1      View:
  • Brand   Oceanus
  • Type   OC-F08
  • Inquire Now
Introduction

OC-FO8 Description:

OC-F08 series online gas detector use the imported sensor and microcontroller technology, so with the advantages of high precision, good repeatability, stable singal, respond quickly, ect. Possible connected with many controller system, such as PLC, DCS, computer and other, with the function of remote monitor and alarm, data logger and analysis.

Common applications is gas safety inspection and alarm for industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc.

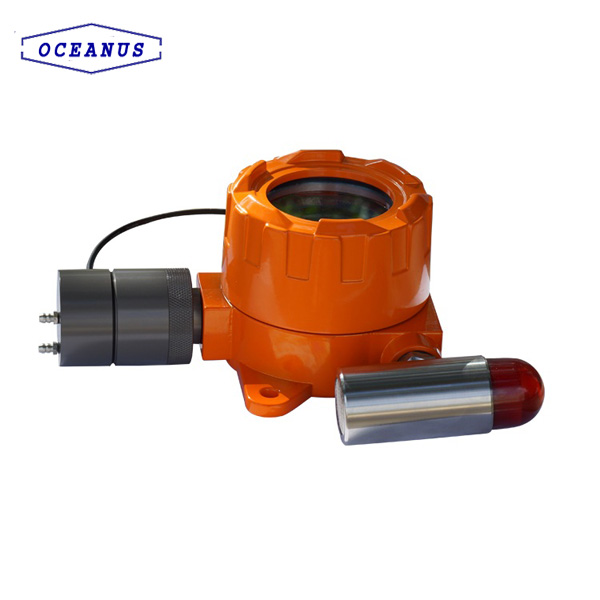

Online combustible gas detector OC-F08
OC-FO8 Features:
4-20mA standard analog signal and RS485 digital signal output, relay output, data restore, data logger(optional);
LED screen displaying the gas concentration, gas type, unit, instrument status etc.
Independent air chamber, the sensor is not required to replace the sensor calibration, automatic identification of key parameters of the sensor
Digital automatic tracking and compensation of temperature in the whole range to ensure the measurement accuracy.
Software automatic calibration function.

Display the gas concentration in ppm, %vol and mg/m3 is selectable.

Infrared remote controller operation;

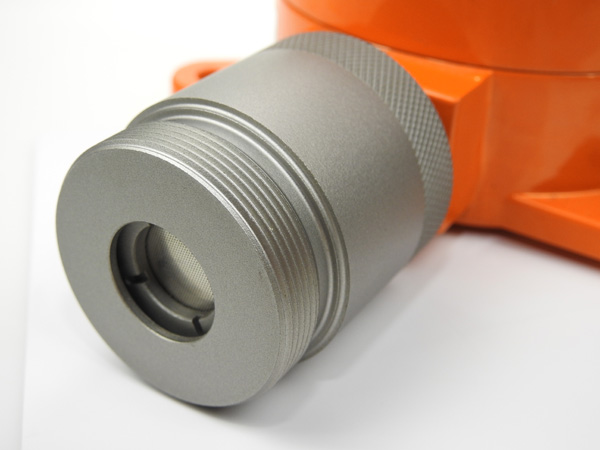

 Online combustible gas alarm OC-F08

OC-FO8 Parameter:

Applicable Gas

Combustible gas

Detecting Range

0~100%LEL

Resoultion

0.01%LEL

Sampling

Diffusion or pump-sunction

Accuracy

≤±1%F.S

Repeatability

≤±1%

Zero drift

≤±1%(F.S/year)

Sensor Type

Infrared

Sensor Life

3 years

Response Time (T90)

20s

Alarming mode

Audible-visual alarm

Operating Environment

Temperature: -20~50

Humidity: 95%RH (non-condensing); if >90%RH, can add the filter

Pressure: 86kPa~106kPa

Working Voltage

24V DC(16~30VDC)

Output Signals

Three-wire system 4~20mA standard signals output; longest transmit distance is 1000m;

Four-wire system RS485 signal output; longest transmit distance is 1800m;

200~1000HZsignal outputoptional);


Two-level passive contact output:220VAC 3A, 24VDC 3A

Installation Means

Wall mounted, Pipe type(Thread:M40*1.5 )

Material of Body

Cast aluminum

Explosion-proof Index

Ex d IIC T6 Gb

Protection Grade

IP65

Electrical Interface

3/4NPT(Female Screw)1/2NPT(Female Screw)

Transmit Distance

1800m

Dimension

200 mm×160 mm×80 mmL×W×H

Weight

About 1.5Kg

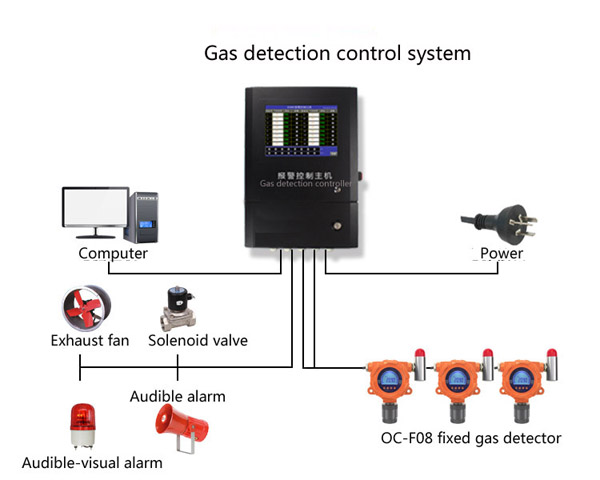

Online combustible gas monitor OC-F08


If any more questions about the OC-F08 gas detector, welcome to contact with us.
