Gas detection controller OC-8000
- Brand Henan Oceanus
- Type OC-8000
Description:
OC-8000 gas detection controller with new design of Touch screen, simple operation. It could connect the OC-F08 gas detector to make up as the industrial gas detection system. It will display the all gas concentration for each gas detector, when the gas concentration level up to the preset data, the controller will alarm with acoustic and light signal.Synchronously, the actuator will begin to drive the exhaust or the cut off valve and other equipment, in order to prevent the poisoning accident, explosion or fire. The OC-8000 Gas detection controller could guarantee the security of the industrial working place.
Technical Parameter:
Item
Description
Product name
Gas detection controller

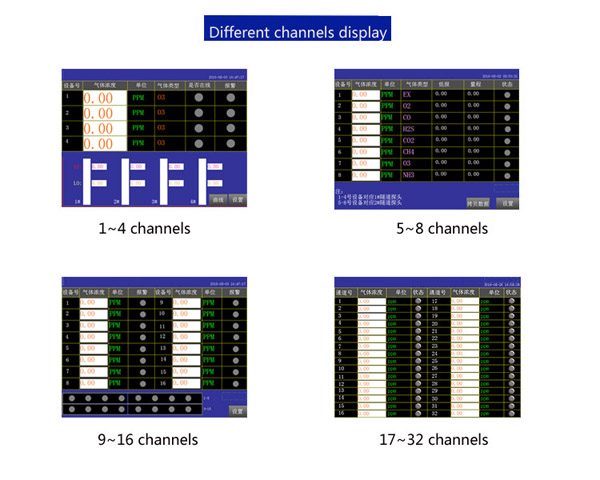

Display
8 inch TFT LCD touch screen
Power supply
AC220V±15%, 50Hz±1%
Consumption
≤10W(according to different channels)
Output voltage
DC24V±15%
Input signal
RS-485

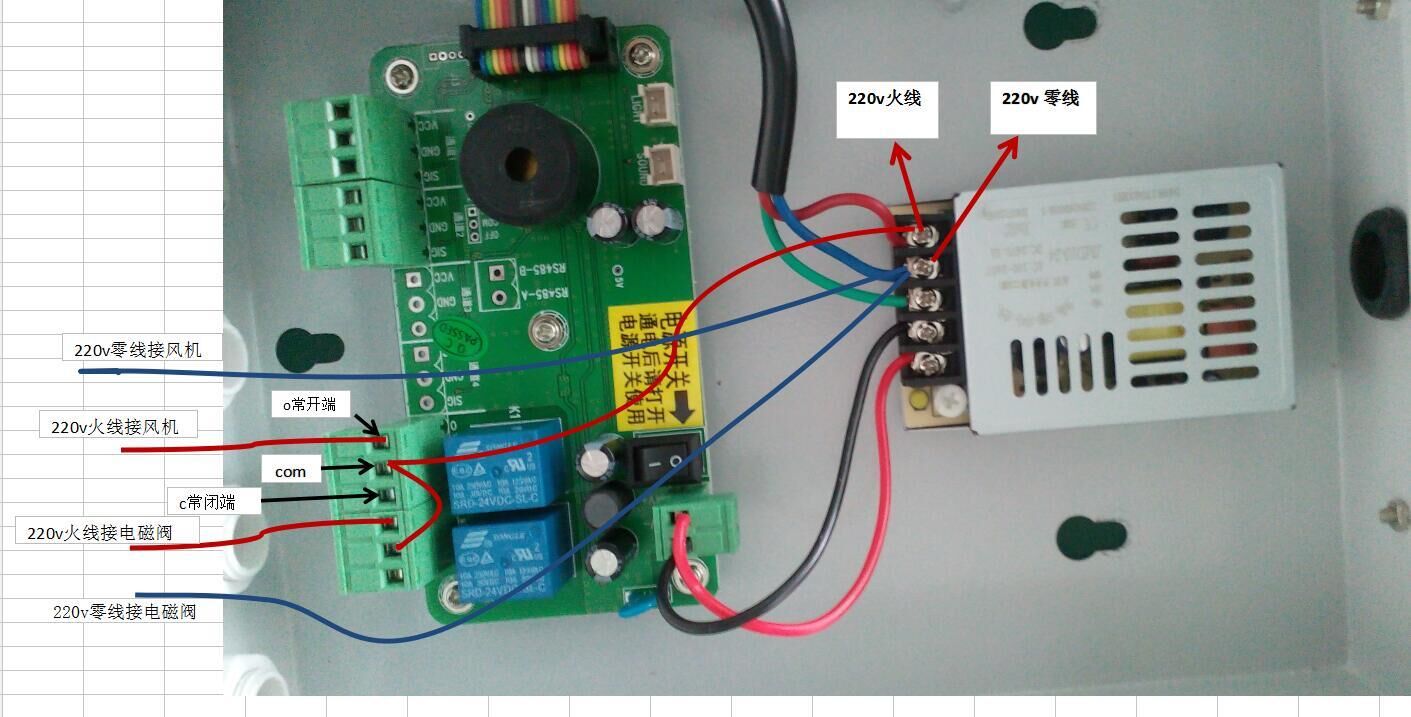

Relay output
4 relay output with optional NO or NC
Relay contact capacity
5A, 30VDC or 5A, 220VAC
Alarm mode
Audible, visual
Installation mode
Wall-mounted
Suitable gas detector
OC-F08 Fixed gas detector with RS485 signal output
Gas detector quantity
≤64pc
Communication distance
≤2000m
Working temperature
-10℃~+50℃
Working humidity
10~95%RH（Non-condensation）
Size
400mm*280mm*80mm
Weight
About 3.6kg
Protection grade
IP54
Quality standard
GB 16808-2008 GB 15326-1994
Certificate
CE, RoHS
Applications:
The OC-8000 Gas detection controller used to connect with the fixed gas detector and the related equipment in industrial scene, such as petroleum refinery, chemical plants, LPG stations, boiler rooms, gas stations, paint spray booths, metallurgy, mining, fire, environmental protection, etc.
