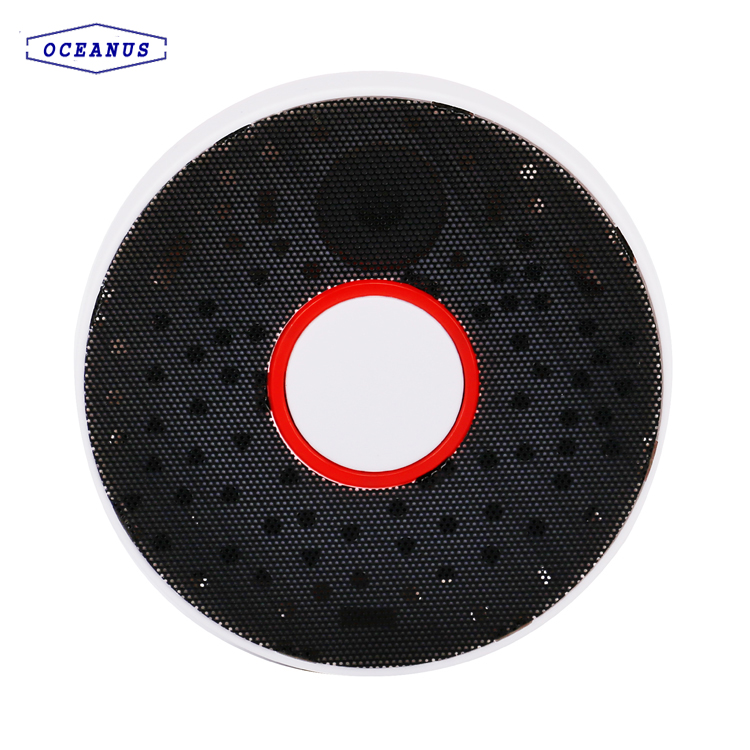

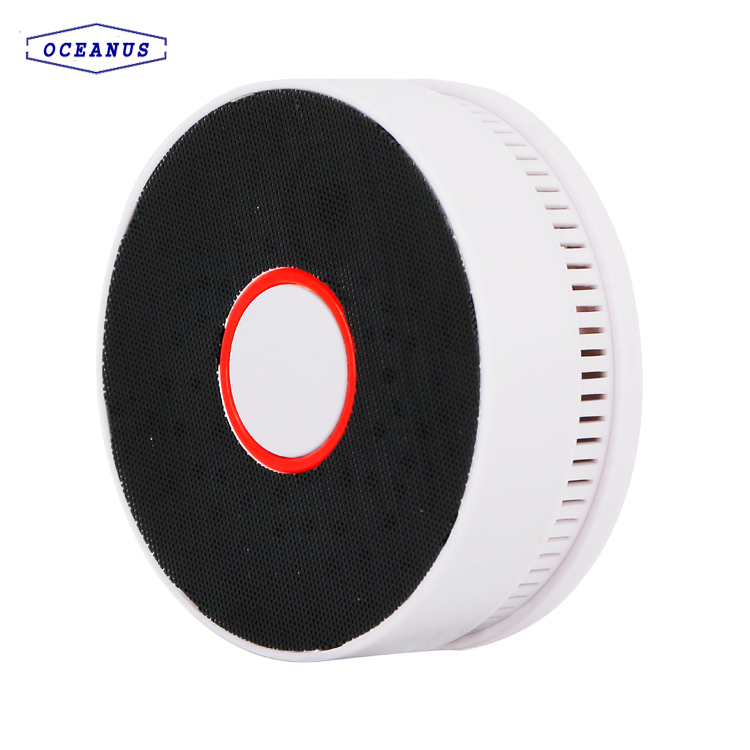

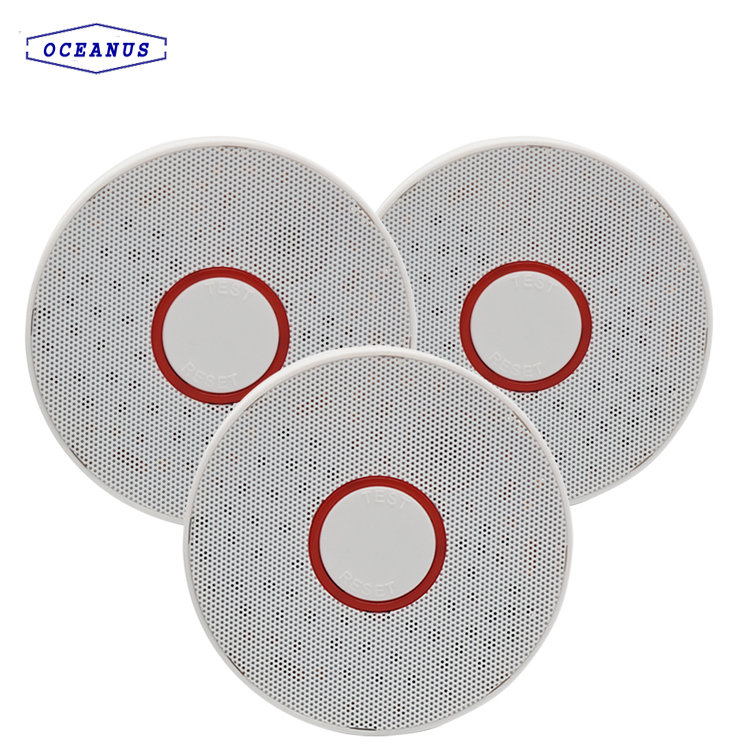

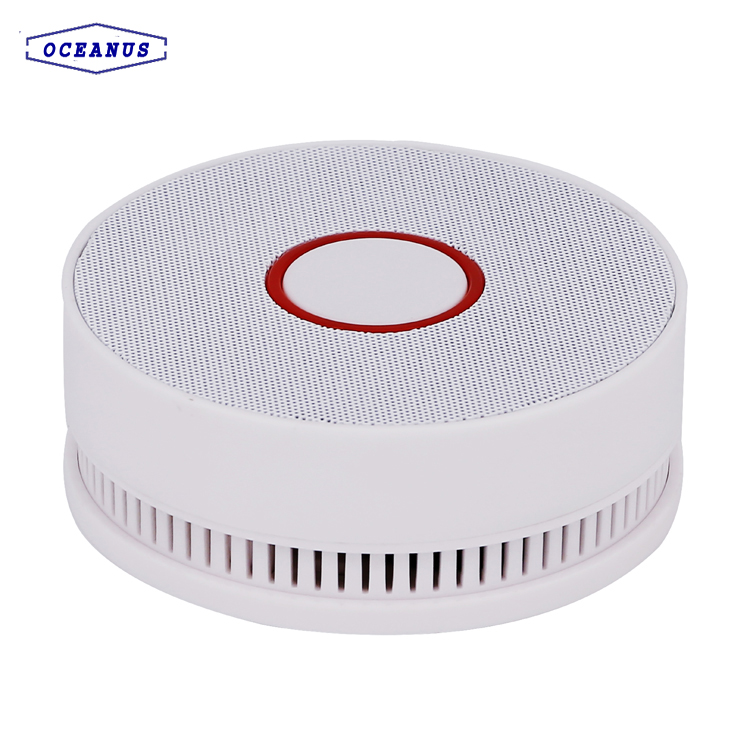

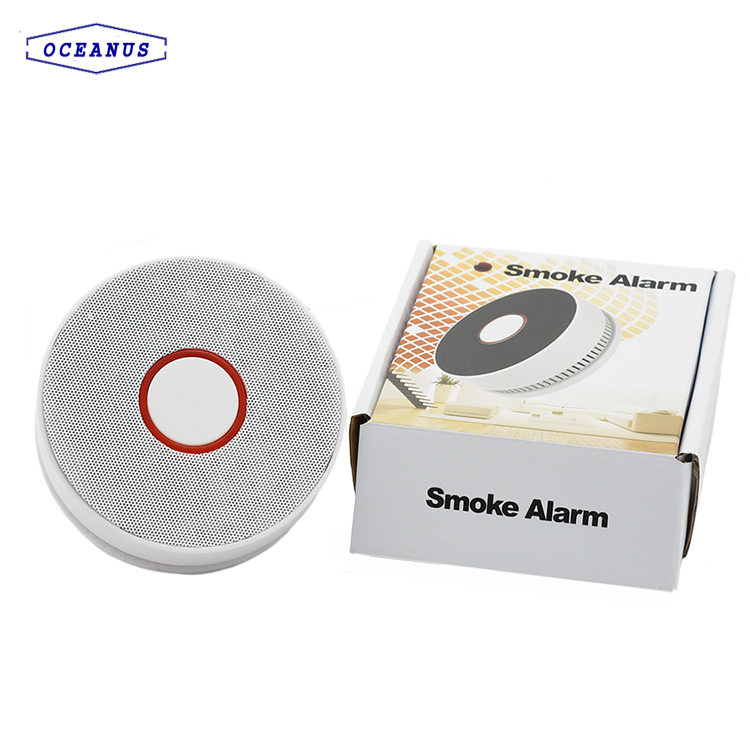

OC-518 Smoke detector with the lithium battery

2018-3-27      View:
  • Brand   Oceanus
  • Type   OC-518
  • Inquire Now
Introduction

Description:

The OC-518 smoke detector designed with dust-proof, mothproof and anti-light interference etc. functions, ensuring the detector stability from design basis and suitable for all kinds of installation environments and also with the optional wireless interconnection function.

Features:

Inside Ten-year lithium battery

Wireless interconnection alarm (Optional)

Low battery warning

Sound & Flash alarm & LED indicating alarm

SMT manufacture technology, reliable stability

Technical parameters:

Power supply

Built-in DC  lithium battery

Sensitivity /alarm time

Based on GB4715-2005,EN14604 standards

Sensor type

Photoelectrical sensor

Sensitive level

2.06%/ft ± 1.3

Static current

10uA

Alarm current

35mA

Alarm indication

>85dB at LED flashes in red

RF

315MHz/433MHz (Wireless TYPE)

Transmitting Distance

200 meters (Open)

Detecting area

80 at 6-12m installation height; 60 at installation height <6m

Sound Level

85dB/m

Temperature

-10-50

Humidity

95%RH

Size

112*73*42mm

Certificate

CE, ROHS

Applications:

The smoke detector reacts very quick to visible smoke released by smoldering fire and flaming fire, and suitable for fire alarm in house, factories, shopping malls, hotels, restaurants, office buildings, teaching buildings, banks, libraries, warehouses, etc.
